Description

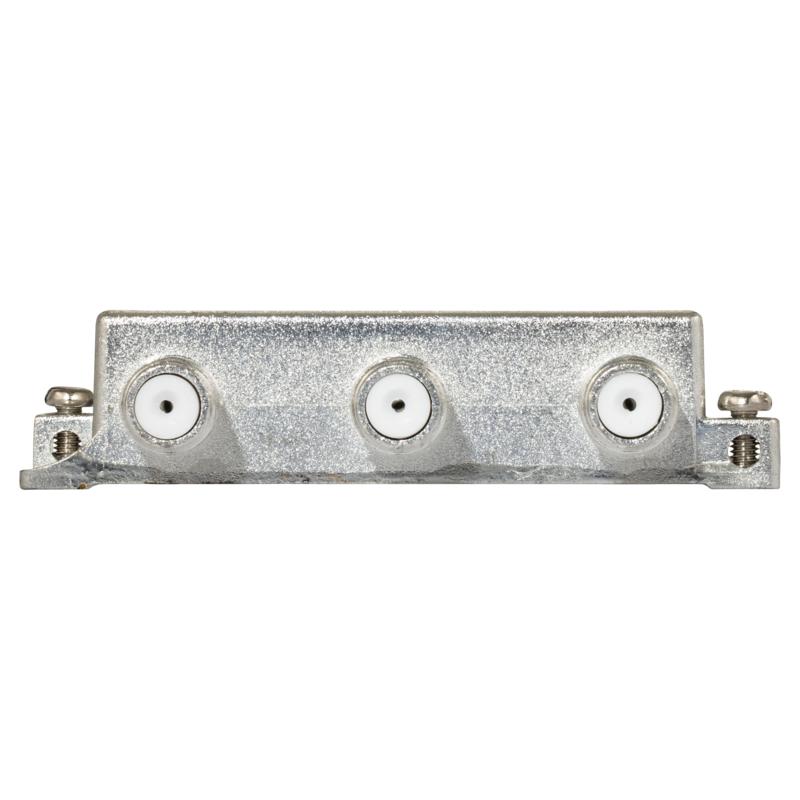

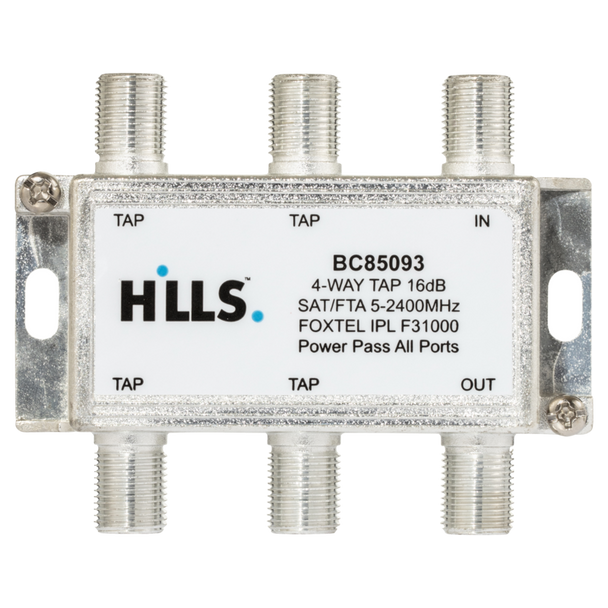

The Hills Antenna BC85093 is the most popular 16 dB 4-way tap – the “go-to” choice for mid-level floors where you want four clean outlets without killing the signal on the main trunk.
Also available in 12db (BC85092) & 20dB (BC850949)
Key Features & Benefits
- Officially Foxtel Approved – IPL #F31000
- 16 dB tap loss (all four ports)
- Through-loss ≈ 1.6 dB
- Switchable DC pass/block on through port

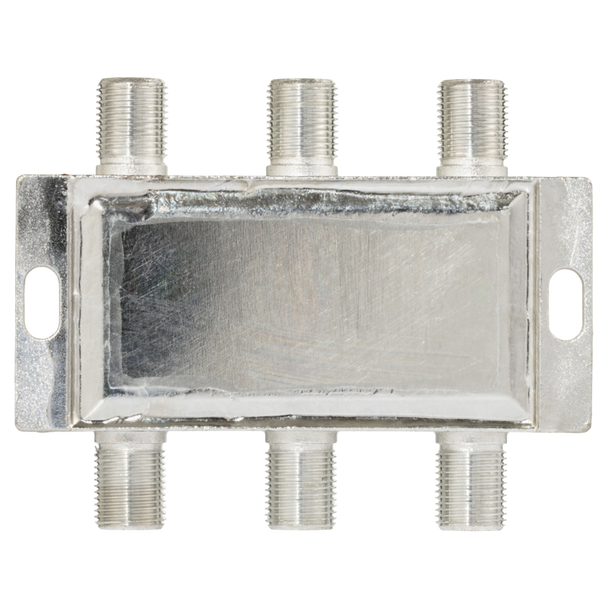

- Same premium die-cast housing, tin finish, solder-shield back and grounding terminal
What’s Included
- 1 × Hills Antenna BC85093 16 dB 4-Way Tap
- 2 × mounting screws
- Polybag packaging
Specifications
Connection Method: Screw on
Connection Type: F-Type
Number of Inputs: 1
Number of Outputs: 1
Power Pass: Not Applicable
Product Usage: Indoor
Warranty: 1
View AllClose
Connection Type: F-Type
Number of Inputs: 1
Number of Outputs: 1
Power Pass: Not Applicable
Product Usage: Indoor
Warranty: 1
Have You Tried These Products?
Hills Antenna BC85090 2-Way 16dB 2.4GHz Passive Tap
Hills Antenna
The Hills Antenna BC85090 is the most commonly specified 16 dB 2-way passive tap – the “sweet spot” for feeding mid-level floors or secondary distribution points while preserving maximum signal on...
BC85090

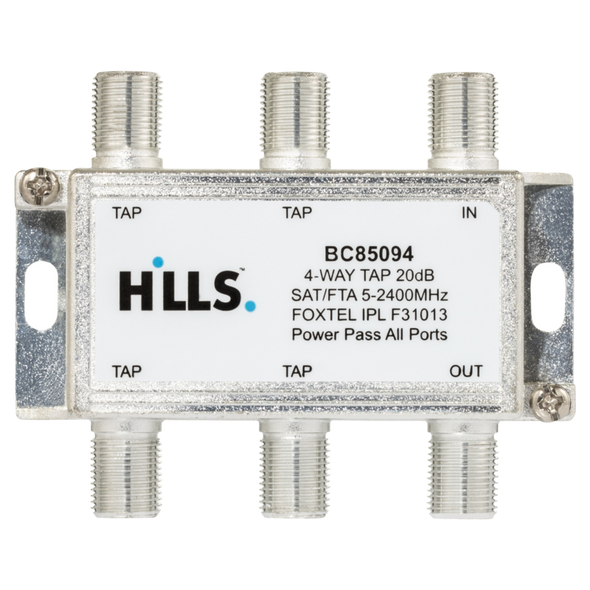

Hills Antenna BC85094 20dB 4-Way 2.4GHz Passive Tap
