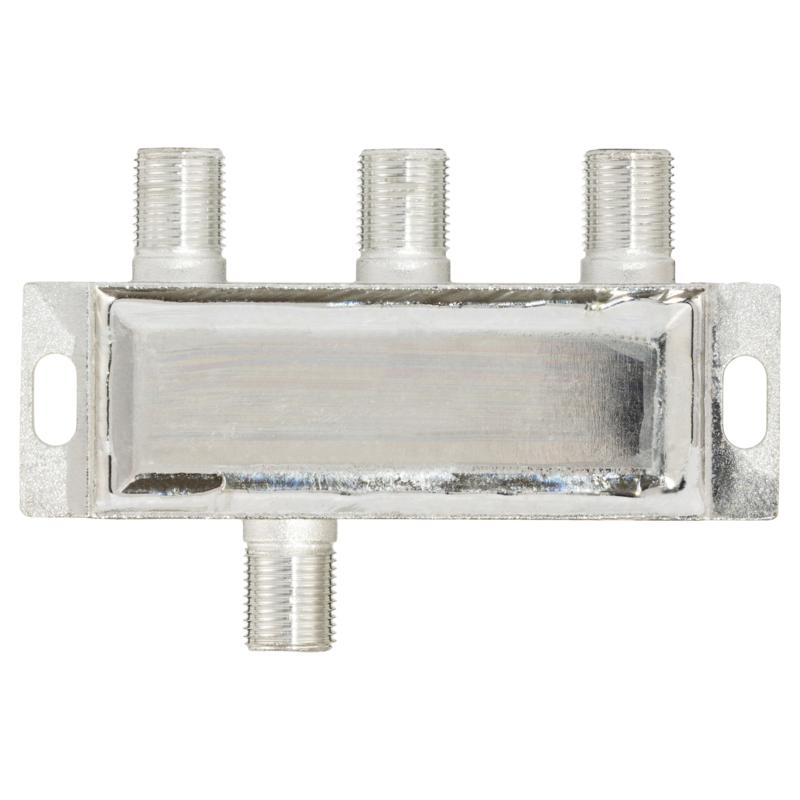

Hills Antenna BC85096 14dB 1-Wire 2-Way Passive Tap

The Hills Antenna BC85096 1-Wire, 2-Way Passive Tap is designed for professional-grade MATV, free-to-air, and satellite distribution systems. Delivering a precise 14dB attenuation level, it ensures balanced signal performance across multi-room or multi-dwelling installations. This Foxtel-approved tap includes DC-routable capability with DIP-switch selection, enabling controlled power routing for satellite technologies. Built with rugged F-Type connectors and long-lasting construction, the BC85096 provides dependable performance in demanding environments.

Also available in 12dB (BC85095), and 16dB (BC85097) models.

Features:

• 14dB attenuation for enhanced signal balancing
• Suitable for MATV, FTA & satellite applications
• Foxtel Approved (IPL # F31087)
• DC-routable: 12–18V DC, 2.33A MAX
• DIP-switch controlled DC path
• F-Type female connectors for secure signal transfer
• Heavy-duty metal housing
• Dimensions: 130 × 130 × 51 mm
• 1 input, 2 outputs
• Includes 1-year warranty
