Description

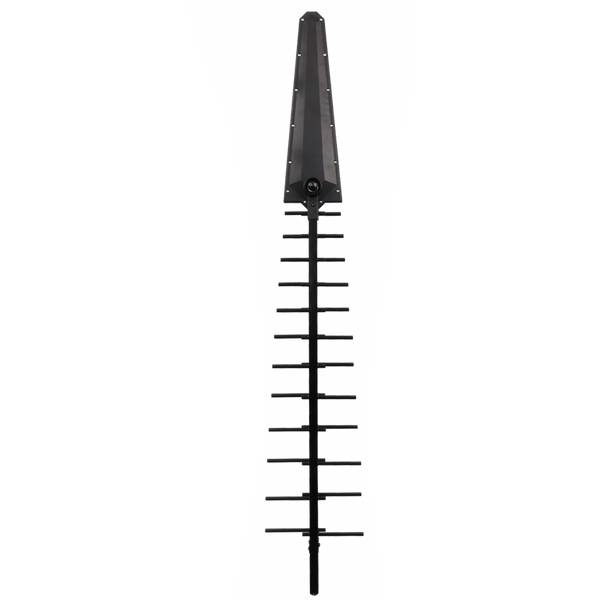

Hills Antenna Black Pointer LPDA 4G-5G Antenna 700Mhz - 3800MHz
Built strong using our patented Boom lock™ technology and high frequency PCB antenna. The Black Pointer antenna covers three different frequency bands, the unique log periodic design seamlessly links them altogether.
Features:
- Frequency bands covered:
- 698 - 960MHz
- 1710 - 2700 MHz
- 3400 - 3800 MHz
- 10dBi - 11 dBi ~ 1710 - 2700MHz
- 6dBi - 9dBi ~ 3400 - 3800MHz
- Unique LPDA design made with patented BoomLock™ technology
- Sensational black finish for appearance and corrosion protection
- Class 3, Plated Steel mounting clamp hardware & fasteners
- 0º, 90º, -45º, +45º, polarisation mounting clamp
- Matched diplexer PCB balun, ultrasonically sealed
- N-Type Tri-Metal Albaloy connector output with cable sealing boot & amalgamation tape
- Size 195/240/400 coaxial cable hangers
- Australian Designed, Made and Owned
- Designed for high-speed 3G and 4G LTE & 5G applications for all providers
Specifications
| Mechanical Specification | |
|---|---|
| Input Connector | N Female (Tri-Metal Albaloy) |
| Construction Material | Aluminium, black powder coating |
| Mounting | Class 3, Dacromet plated steel |
| Dimensions | 1170x250x80 mm |
| Weight | 1.9 Kg |
| Electrical Specification | |
|---|---|
| Frequency Range (MHz) | 698 - 960 / 1710 - 2700 / 3400 - 3800 |
| Input Impedance | 50Ω |
| Max Gain | 11dBi |
| VSWR | 1.1 - 2.0 |
| Polarization | Vertical, Horizontal |
| Maximum Input Power | 10W |
Have You Tried These Products?

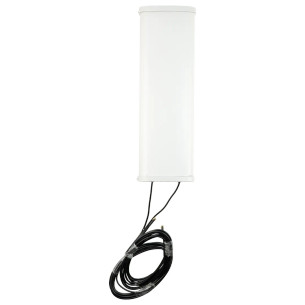

Hills Antenna 2 x 2 Mimo Antenna 698 - 4000MHz 4G/5G
Hills Antenna
Hills Antenna 2 x 2 Mimo Antenna 698 - 4000MHz 4G/5G
Elevate your connectivity with the Hills Antenna 2x2 MIMO Antenna, a high-performance solution engineered to deliver exceptional signal strength...
01GMIMO10
Hills Antenna Tru-Max 36 4G Antenna
Hills Antenna
The Hills Antenna Tru-Max 36 4G antenna is a superior phased array antenna used for regional UHF areas. It has the added benefit of having a 4G filter included, reducing the potential for 4G/LTE...
FB608601-4G
Hills Antenna Tru-Max 18 4G Antenna
Hills Antenna
The Hills Antenna Tru-Max 18 4G antenna is a superior phased array antenna used for regional UHF areas. It has the added benefit of having a 4G filter included, reducing the potential for 4G/LTE...
FB608602-4G
Hills Antenna 01TBV7-4G Tru-Band 7-Element VHF Black Arrow 4G Antenna
Hills Antenna
Hills Antenna 01TBV7-4G Tru-Band 7-Element VHF Black Arrow 4G Antenna range is a revolutionary range of antennas specifically designed for the digital-only TV environment in Australian Capital...
01TBV7-4G

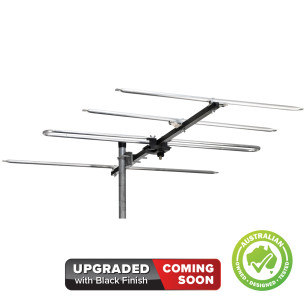

Hills Antenna 01DY4A-4G VHF 4 Element Yagi Antenna
