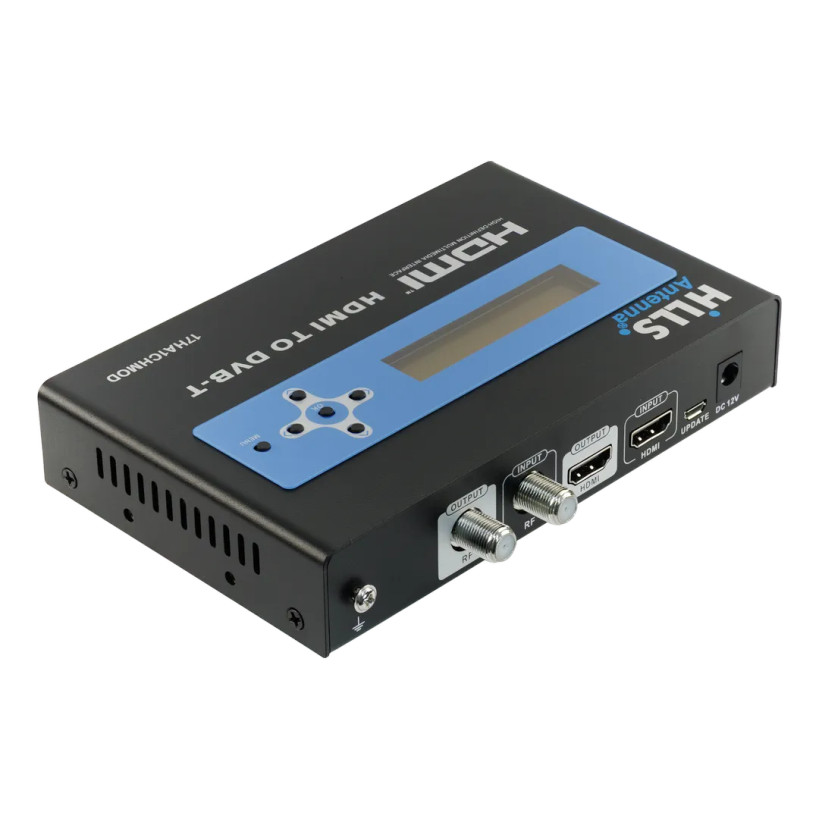

Hills Antenna HDMI to DVB-T 1CH Modulator

Hills Antenna 17HA1CHMOD HDMI to DVB-T Modulator – Full HD 1080p Digital RF Output for Easy Coaxial Distribution

Upgrade your video distribution with the reliable Hills Antenna 17HA1CHMOD HDMI to DVB-T modulator. This professional single-channel device converts any HDMI source into a high-definition DVB-T RF signal, allowing seamless broadcast over existing coaxial cabling (RG59, RG6, RG11) to multiple TVs without new wiring. Perfect for homes, hotels, pubs, sports bars, apartments, or commercial MATV systems needing to distribute satellite receivers, Foxtel, Blu-ray players, media players, CCTV cameras, or digital signage to numerous displays.

Key benefits include crystal-clear 1080p distribution, strong anti-interference performance, and simple plug-and-play setup with wall-mountable metal housing.

Main Features:

• Converts HDMI input to DVB-T digital high-definition RF output for distribution across multiple TVs via CATV splitter
• Supports resolutions up to 1080p@60Hz, including 1080i, 720p, 576p, and 480p for Full HD compatibility
• Durable metal housing – easy wall mounting and installation
• Excellent anti-noise, anti-interference, lightning protection, surge protection, and ESD protection
• Adjustable frequency range 177.5–866 MHz with max effective bitrate 24 Mbps
• MPEG2 video encoding and audio support for reliable performance
• This 1080p model is ideal for most setups; see our 4K version (17HA1CHMOD4K) for 3840x2160 support

Technical Specifications:

• HDMI: 1.3 compatible, HDCP 1.2
• Video resolutions: 480i/480p@60Hz, 576i/576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@24/25/30/50/60Hz
• Encoding: H.264 video, MPEG2 audio
• Coaxial standard: DVB-T
• Power: 12V DC / 1A
• Dimensions: 158(W) × 115(D) × 33(H) mm
• Operating temperature: -20°C to 60°C

What's Included:

• 1× 17HA1CHMOD 1080p Modulator
• 12V DC / 1A power adaptor
• Mounting hardware (2× ears, 4× screws)
• User manual

Backed by a 1-year warranty. Ideal for anyone searching for a cost-effective, robust HDMI RF modulator DVB-T solution to turn one HDMI source into a watchable digital TV channel on every screen in the building.
