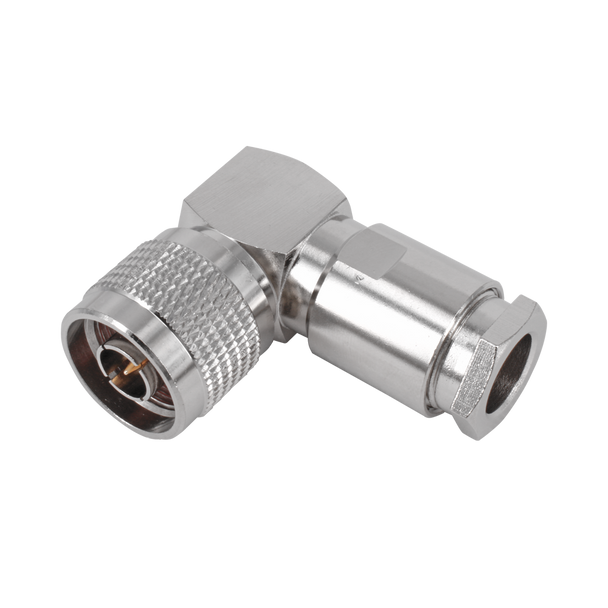

Hills Antenna N Connector Male Right Angle Clamp for LL400 Cable - Nickel Plated Body

SKU:
BC85276
UPC:
9340591015320
Log in for pricing

Description

Elevate your RF connectivity in tight spaces with the Hills Antenna BC85276 N Male Right Angle Clamp Connector, a precision-engineered component designed for LL400 coax cables (BC85203/BC85204). This right-angle N Male connector is ideal for WiFi antennas, telecom systems, microwave applications, and amateur radio setups, supporting a wide frequency range from DC to 3 GHz with a consistent 50 Ohm impedance for low-loss, high-performance signal transmission.

Crafted from nickel-plated brass, the BC85276 ensures superior conductivity and corrosion resistance, making it durable in Australia’s harsh environmental conditions. Its right-angle clamp design facilitates secure, vibration-resistant connections in confined spaces, with centre and outer contact resistance ≤1mΩ, a withstanding voltage of 2500V r.m.s, and a working voltage of 1000V r.m.s. With insulation resistance ≥5000MΩ, a temperature range of -55°C to 155°C, and durability exceeding 500 cycles, this RoHS-compliant connector guarantees long-term reliability for both domestic and commercial RF installations.

Key Features:

  • N Male Right-Angle Connector: Clamp design for secure LL400 coax cable connections in tight 90-degree setups.
  • High-Frequency Performance: Supports DC-3GHz with 50 Ohm impedance for clear, efficient RF signals.
  • Premium Build: Nickel-plated brass for excellent conductivity and weather-resistant durability.
  • Robust Specifications: 2500V withstanding voltage, 1000V working voltage, ≥5000MΩ insulation, >500 cycles.
  • Versatile Applications: Perfect for WiFi, telecom, antennas, and high-frequency RF systems.

Designed with Hills Antenna’s Australian engineering expertise, the BC85276 N Male Right Angle Connector delivers professional-grade performance for seamless RF connectivity. Order now for a reliable, high-quality solution tailored to demanding coaxial applications.

View AllClose

Specifications

Impedance: 50Ω
Frequency Range: DC - 3000 MHz
Centre Contact Resistance: ≤1mΩ
Outer Contact Resistance: ≤1mΩ
Withstanding Voltage: 2500V r.m.s
Working Voltage: 1000V r.m.s
Insulation Resistance: ≥5000MΩ
Temperature Range: -55°C to 155°C
RoHS Complaint: YES
Durability: ≥500 cycles
View AllClose

Details

Connector Type:
N Type Male
Cable Type:
LL400 Coax Cable
Connection Type:
Clamp
Resistance:
Resistance: 50 Ohm
Materials:
Nickel Plated Body
Packaging:
Poly Bag with Label
Warranty:
1 Year
