Hills Antenna N Male to FME Female Adaptor - Nickel Plated Body

SKU:
BC85296
UPC:
9340591015405
  • Hills Antenna N Male to FME Female Adaptor - Nickel Plated Body
  • Hills Antenna N Male to FME Female Adaptor - Nickel Plated Body
  • Hills Antenna N Male to FME Female Adaptor - Nickel Plated Body
  • Hills Antenna N Male to FME Female Adaptor - Nickel Plated Body
  • Hills Antenna N Male to FME Female Adaptor - Nickel Plated Body
Log in for pricing

Description

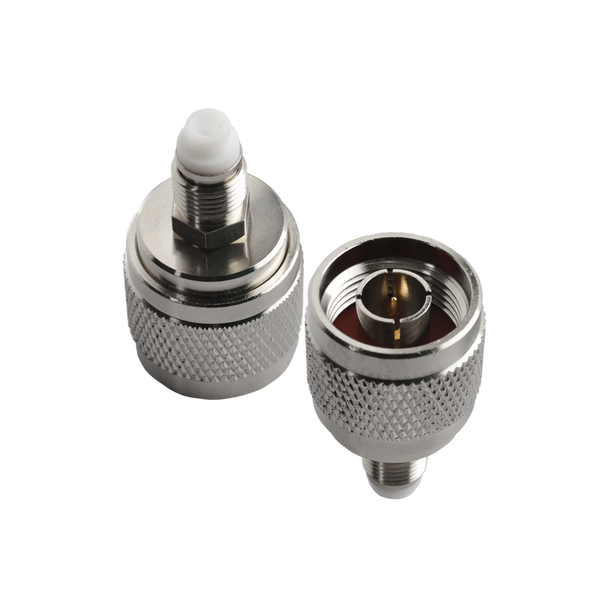

The Hills Antenna BC8596 N Male to FME Female straight-bodied adaptor is a regular coaxial component that is created to link a Male N-Type interface to a Female FME-Type interface. This particular model is intended to provide support for an expanded frequency range up to 2 GHz. The adaptor is made from precision-machined Nickel plated brass and features a standard N Male connector interface on one end that is directly connected to an FME Female connector interface.


Features:
  • N Male to FME Female Adaptor
  • 50 Ohm impedance
  • Supports frequencies up to 2 GHz



View AllClose

Specifications

Impedance: 50Ω
Frequency Range: DC ~ 2GHz
Working Voltage: <500V r.m.s
Withstanding Voltage: 1000V r.m.s
Center Contact Resistance: ≤10mΩ
Outer Contact Resistance: ≤5mΩ
Insulation Resistance: ≥5000MΩ
VSWR: ≤1.2
Durability: ≥500 cycles
Temperature Range: -55°C to 155°C
View AllClose

Details

Adaptor Type:
50 Ohm RF
Adaptor Side 1:
N Type Male
Adaptor Side 2:
FME Female
Resistance:
50 Ohm
Materials:
Nickel Plated Body

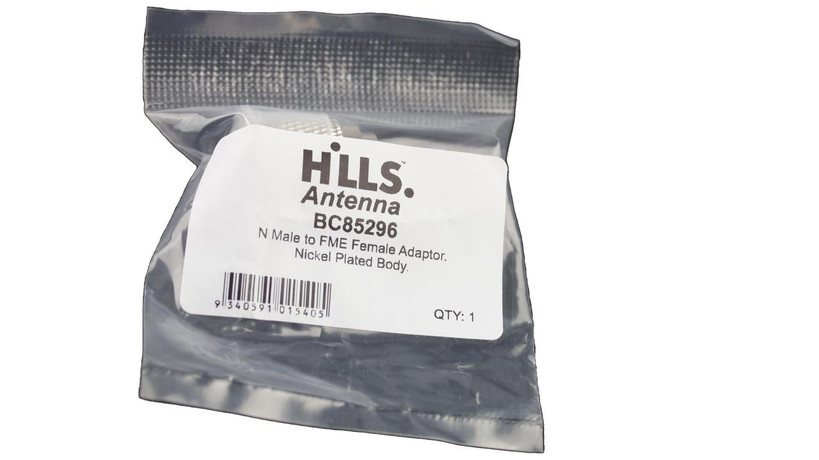

Packaging:
Poly Bag with Label
Warranty:
1 Year
Carton Quantity:
-
