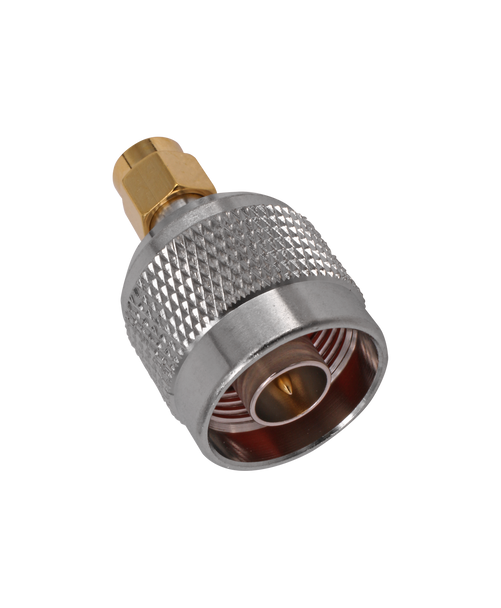

Hills Antenna N Male to SMA Male Adaptor - Nickel Plated Body

SKU:
BC85300
UPC:
9340591015443
Log in for pricing

Description

The Hills Antenna BC85300 N Male to SMA Male straight-bodied adaptor is a regular coaxial component that is created to link a Male N-Type interface to a Male SMA-Type interface. This particular model is intended to provide support for an expanded frequency range up to 3 GHz. The adaptor is made from precision-machined Nickel plated brass and features a standard N Male connector interface on one end that is directly connected to an SMA Male connector interface.

Features:
  • N Male to SMA Male Adaptor
  • 50 Ohm impedance
  • Supports frequencies up to 3 GHz



View AllClose

Specifications

Impedance: 50Ω
Frequency Range: DC ~ 3GHz
Working Voltage: <335V r.m.s
Withstanding Voltage: 1000V r.m.s
Center Contact Resistance: ≤3mΩ
Outer Contact Resistance: ≤2.5mΩ
Insulation Resistance: ≥5000MΩ
VSWR: ≤1.2
Durability: ≥500 cycles
Temperature Range: -55°C to 155°C
View AllClose

Details

Adaptor Type:
50 Ohm RF
Adaptor Side 1:
N Type Male
Adaptor Side 2:
SMA Male
Resistance:
50 Ohm
Materials:
Nickel Plated Body
Packaging:
Poly Bag with Label
Warranty:
1 Year
Carton Quantity:
-
View AllClose
