Description
The Hills Antenna BC85289 SMA Female Connector - Crimp is a precision made part using Gold Plated Brass. It is suitable for use with our LL400 (BC85203/BC85204) cable.
Specifications
Impedance: 50Ω
Frequency Range: DC ~ 6GHz
VSWR: ≤1.2
Centre Contact Resistance: ≤3mΩ
Outer Contact Resistance: ≤2.5mΩ
Withstanding Voltage: 1000V r.m.s
Working Voltage: <335V r.m.s
Insulation Resistance: ≥5000MΩ
Temperature Range: -65°C to 165°C
RoHS Complaint: YES
Durability: ≥500 cycles
View AllClose
Frequency Range: DC ~ 6GHz
VSWR: ≤1.2
Centre Contact Resistance: ≤3mΩ
Outer Contact Resistance: ≤2.5mΩ
Withstanding Voltage: 1000V r.m.s
Working Voltage: <335V r.m.s
Insulation Resistance: ≥5000MΩ
Temperature Range: -65°C to 165°C
RoHS Complaint: YES
Durability: ≥500 cycles
Details
Connector Type: |
SMA Female
|
Cable Type: |
LL400 Coax Cable
|
Connection Type: |
Crimp
|
Resistance: |
50 Ohm
|
Materials: |
Gold Plated Body
|

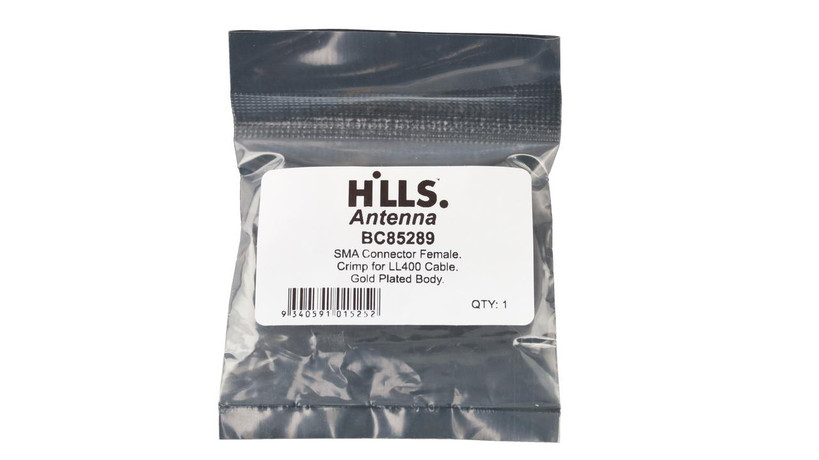

Packaging: |
Poly Bag with Label
|
Warranty: |
1 Year
|
Carton Quantity: |
-
|
