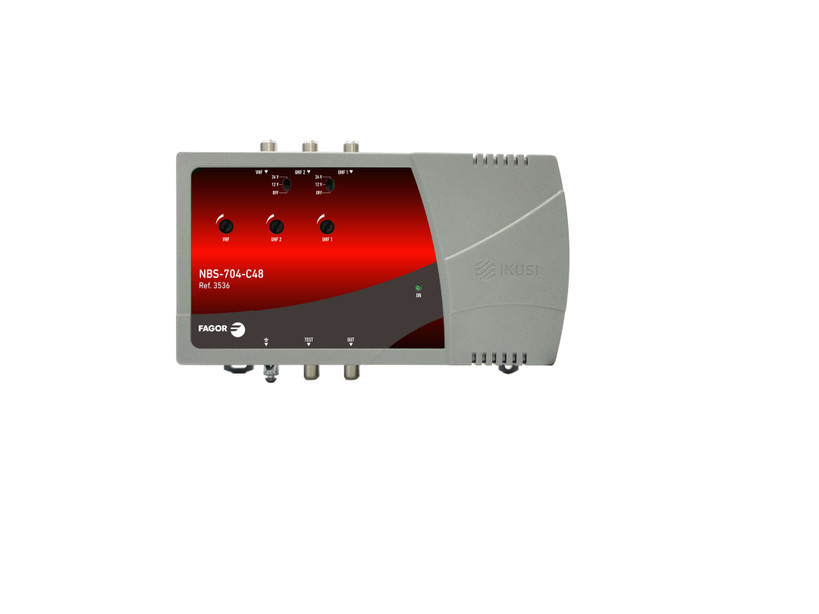

Ikusi by Fagor NBS-704-C48 Multiband Terrestrial Headend Amplifier

Ikusi by Fagor NBS-704-C48 Multiband Terrestrial Headend Amplifier (REF: 3536)

The NBS-704-C48 is a versatile mid-power multiband amplifier from the NBS 700 Series, designed for the amplification, equalization, and combination of terrestrial television signals in small to medium collective installations.

Featuring 3 inputs (1x VHF + 2x UHF), this professional headend amplifier is perfect for combining signals from multiple terrestrial antennas while maintaining excellent signal quality for both analog and digital (DVB-T/T2) broadcasts.

Key Features:

• 3 Independent Inputs: 1 VHF + 2x UHF for flexible multi-antenna signal combining
• High Gain Performance: 22 dB (VHF) / 35 dB (2xUHF) with maximum RF output level of 115 dBμV
• Selectable Mast Powering: Each UHF input supports 0 / 12 / 24V 100mA powering for masthead preamplifiers
• Precise Adjustment: 0–15 dB gain adjustment per band + interstage input attenuators for improved noise figure
• Excellent Signal Quality: Low noise figure (7 dB) and ±2 dB response flatness
• Convenient Testing: Output test point for easy signal checking without disconnecting the installation
• Professional Design: Robust housing with F-type connectors, grounding terminal, wall-mount design for indoor installation
• Efficient Power Supply: 110-240 VAC switching power supply with low 7W consumption

The NBS-704-C48 is part of Ikusi by Fagor's reliable NBS 700 series, offering great value and performance for multi-dwelling units (MDUs), small hotels, residential complexes, and other shared antenna systems.

Applications: Ideal for small to medium terrestrial TV signal distribution where multiple antennas (VHF + UHF) need to be combined and amplified.

Enhance your collective TV reception with the high-quality Ikusi by Fagor NBS-704-C48 multiband headend amplifier.
