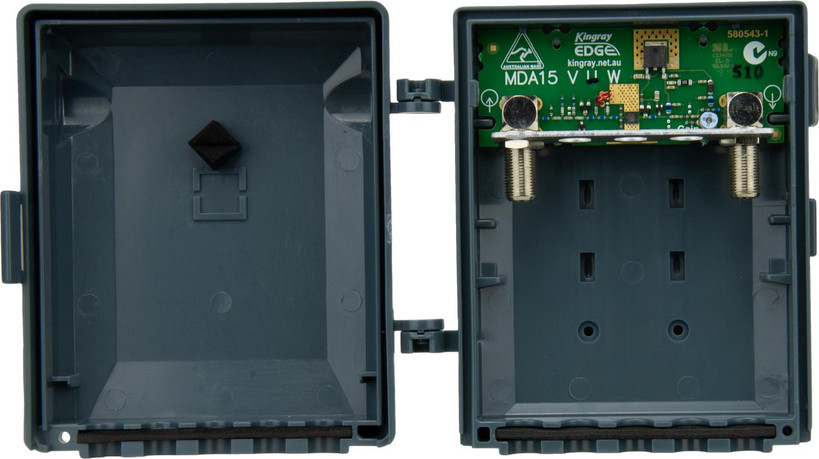

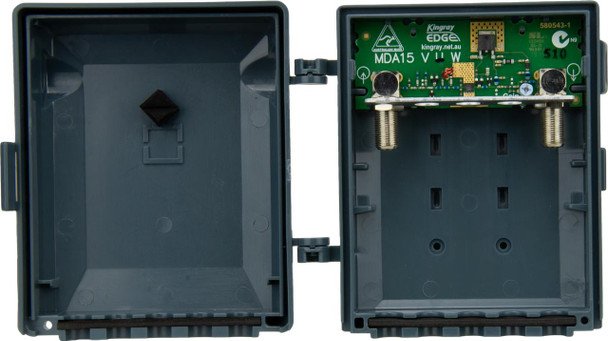

Kingray MDA15U 15dB UHF Masthead Amplifier, Low Noise with LTE Filter

The MDA15U is single input UHF TV masthead distribution amplifier designed to amplify the frequency range of 470-694 MHz and with UHF frequencies above 694 MHz filtered, 4G/LTE transmissions are filtered out. Whether the unit is used as a masthead or distribution amplifier, the low noise figure, capacity for multiple channels with low distortion and a high output has proven to be effective in all installations, especially digital problem areas.

The MDA15 range is based on a concept of convergent technology. The characteristics of the IC selected provides a very low noise figure and output figure that equals our DW32, 113dB @ -60 dB IMR, hence the name Masthead Distribution Amplifier (MDA).

The masthead is powered remotely via a Kingray PSK06 series power supply (sold separately).

Features:

• Frequency Range 470-694 MHz
• 15dB Maximum Gain
• 6dB Gain Control
• 4G/LTE Filtering
• Low Noise Figure <2.5dB
• High Output Figure of 113dB IMR3 (DIN45004B)

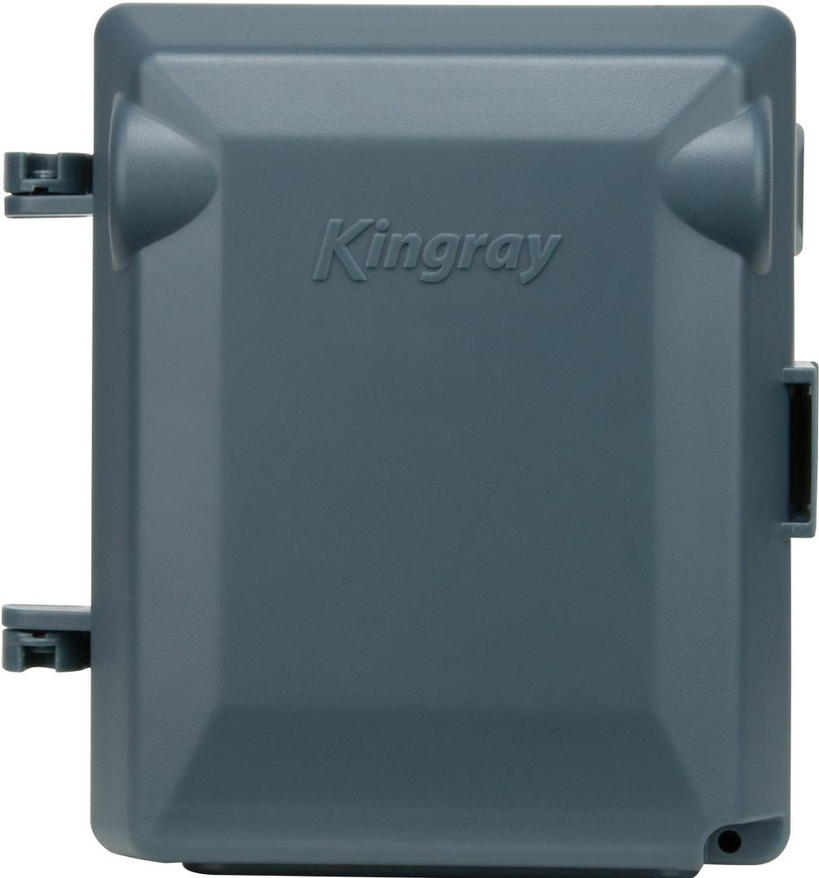

• Weatherproof Housing
• Connectors: F-Type
• Power Consumption: 60mA
• Suitable Power Supply: PSK06 Series

Inclusions:

• MDA15U Masthead Amplifier
• Cable Tie
• Instruction Manual
