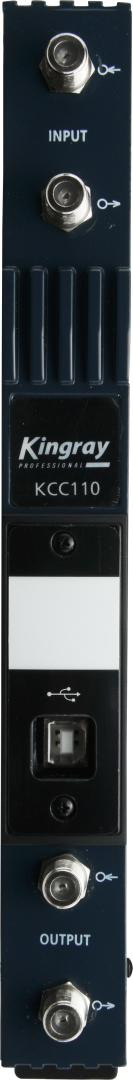

Kingray KCC110 Digital Channel Converter/Processor

Whether the KCC110 is used to output the same channel as it’s input channel (processing) or a different output channel to it’s input channel (converting), it is capable of adjacent channel operation on both input and output.

It has superior adjacent channel performance due to double saw filtering, input AGC circuity as well as adjustable output power level.

Features:

• Frequency Range 44-862 MHz
• 80dB Maximum Output Level
• 60dB Minimum Input Level
• -30dB Test Point
• Superior Adjacent Channel Performance Due to Double Saw Filtering
• Input AGC Circuitry
• High Linearity and Low Phase Noise
• Adjustable Output Power Level Control
• Resolution 125 kHz Steps
• Adjustable Bandwidth
• Stand Alone or 19 inch Rack Mountable
• Programmable through the KLA110 via the ethernet port
• Programmable via USB when using as a stand alone module
• Remote Control Capability via KLA110 within a VPN
• Precision Engineered Die-cast Housing
• Connectors: F-Type
• Power Consumption: 500mA
• Operating Voltage: 24V DC
• Size (mm): 248 (h) x 190 (d) x 30 (w)

Inclusions:

• KCC110 Channel Converter/Processor
• RF links x 2
• DC lead x 1
• Instruction Manual
