Description
Optex Flip-X 29R50441-BU is the indoor motion detector with innovative pyro sensor with human catch element for creating human-sized detection areas and superior pet tolerance. Equipped with a rotatable lens FlipX sensors allow an easy switch from wide to narrow detection, meaning that you can do twice as much with a signle product. It's perfect choice for everyday intrusion detection in residential or small commercial sites and can cover various installation fields.
Features:
- Hardwired indoor dual-technology (PIR + microwave) with rotatable lens
- Wide detection up to 12m, 85 degree, and narrow detection up to 18m (PIR only)
- Superior pet tolerance with new pyroelectric element
- Tough MOD 2 for higher capture rate
- Easily viewable LED indicator (green)
Specifications
| Model Name | Standard |
|---|---|
| Mounting Height | 2.0 to 3.0m (6'7" to 9'8") |
| Alarm period | 2.0±0.5s |
| Warm-up period | Approx. 60s (LED blinks) |
| LED indicator | Green:[1] Warm-up[2] Alarm |
| Power input | 9.5 to 16V DC |
| Operation temperature | -20°C to +50°C (-4°F to +122°F) |
| Temperature compensation | Digital |
| Relative humidity | 95% RH max |
| Dimension | H: 130mm x W: 62mm x D: 56mm |
Related Products
Ajax MotionProtect - 2 Way PIR Pet Immune Motion Detector (Black)
Ajax
Wireless indoor IR motion detector that notifies the owner of the first signs of home or office intrusion. The detector is fastened to the wall in front of the doors and other places lilkely of...
29NAJAMOTPIRB
Ajax MotionProtect - 2 Way PIR Pet Immune WL Motion Detector (White)
Ajax
Wireless indoor IR motion detector that notifies the owner of the first signs of home or office intrusion. The detector is fastened to the wall in front of the doors and other places lilkely of...
29NAJAMOTPIRW

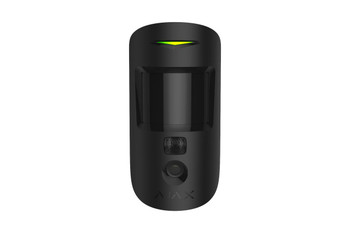

Ajax MotionCam - 2 Way Pet PIR Motion Detector with Snap Shot Camera to Verify Alarms (Black)
