Blustream 1080p HD Video over IP Transmitter via 100Mbps Network

Blustream 1080p HD Video over IP Transmitter via 100Mbps Network

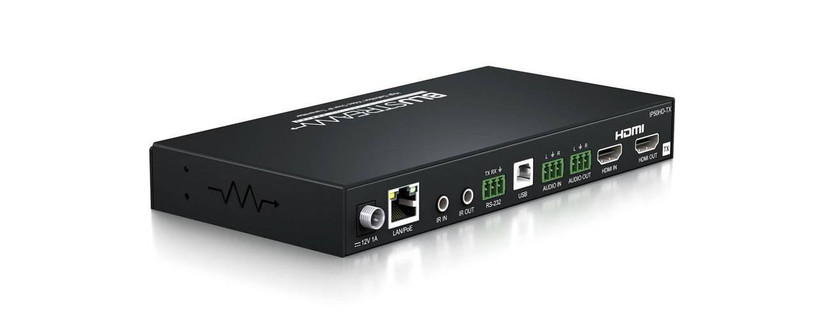

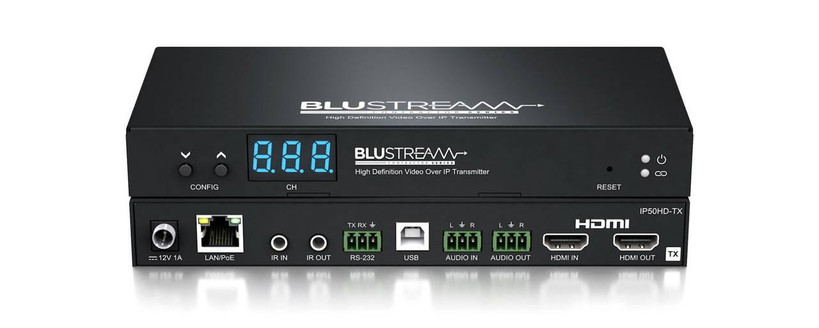

Our Contractor HD Multicast distribution platform allows distribution of AV and control signals over a 100Mbps network.The IP50HD-TX is an industry leading 1080p HDMI transmitter that, using H.265 compression technology, delivers HDMI, Bi-directional IR, RS-232 & USB/KVM up to lengths of 100m over standard network architecture. The transmitter includes a HDMI loop-out for cascading to multiple devices and can be powered via PoE from the network switch or locally should the switch not support PoE. With multiple configuration options available the Multicast HD solution is ideal for both commercial and residential installations.

Features:

• Advanced HD video, control and KVM over network infrastructure
• Extends HDMI up to a distance of 100m over a single CAT cable
• Supports unicast transmission over unmanaged networks
• Supports multicast transmission for large managed networks
• Supports up to 1080p @ 60Hz
• Features 1 x HDMI loop-out for integrating local displays or cascading to multiple devices
• Supports PCM 2.0 channel audio only
• Advanced signal management for independent routing of IR, RS-232, USB/KVM, and video/audio
• PoE (Power over Ethernet) to power product from a PoE switch
• HDCP1.4 compliant with advanced EDID management
• Analogue L/R audio embedding and audio breakout (2ch PCM only)
• Local 12V 1A power supply should Ethernet switch not support PoE (supplied separately)
• Features 2 operational modes:
  • Matrix distribution (requires 100Mbps network switch)
  • One-to-one HDMI extender (no network switch required)

In the box:

• 1 x IP50HD-TX
• 1 x IR Receiver
• 1 x IR Emitter
• 1 x Mounting Kit
• 4 x Rubber Feet
