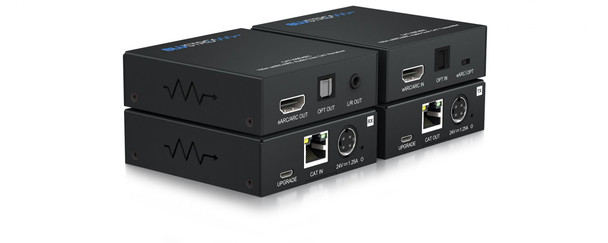

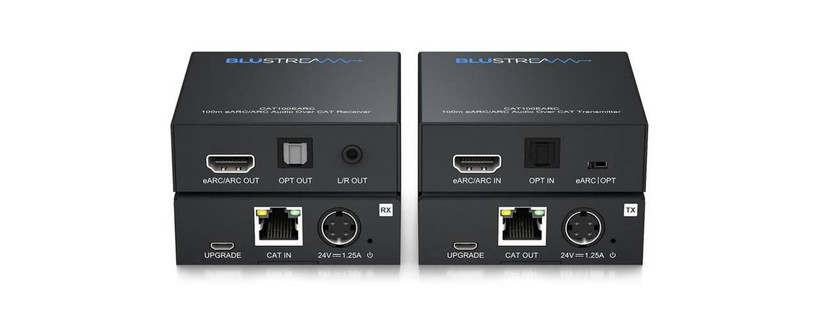

Blustream eARC/ARC Over CAT

Blustream eARC/ARC Over CAT - CAT100EARC Audio over CAT cable extender transmits HDMI eARC/ARC or optical digital audio signals up to a distance of 200m (eARC/ARC signals up to 100m). This plug and play device supports CEC pass-through when HDMI eARC/ARC audio is selected and features a built in DAC to convert either of the inputs to a stereo left / right audio output.

Features:

• Extend either eARC/ARC or optical digital audio signals over a single CAT cable*
• CAT100EARC supports eARC/ARC distribution distances of up to 100m
• CAT100EARC supports Optical audio distribution distances of up to 200m
• Built in DAC (Digital to Analogue audio Converter) converts either HDMI eARC/ARC or optical digital to analogue stereo left/right audio output (2ch PCM only)*
• Supports CEC pass-through when HDMI eARC/ARC mode selected
• Supports the following audio formats:
  • eARC: PCM 2.0/5.1/7.1ch, Dolby Digital Plus, DTS, Dolby TrueHD, DTS-HD MA, Dolby Atmos
  • ARC: PCM 2.0ch, Dolby 5.1ch, DTS 5.1ch
  • Optical: PCM 2.0ch, Dolby 5.1ch, DTS 5.1ch
• Bi-directional PoC (Power over Cable) to power extenders from either the transmitter or receiver

*Selection between HDMI eARC/ARC or Optical digital audio via dipswitch on the TX

In the Box:

• 1 x CAT100EARC-TX
• 1 x CAT100EARC-RX
• 1 x 24V/1.25A DC power supply
• 1 x Mounting kit
• 1 x Quick Reference Guide
