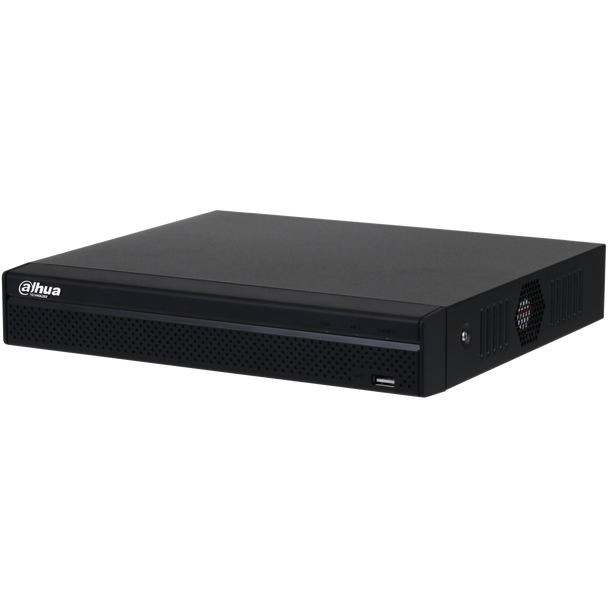

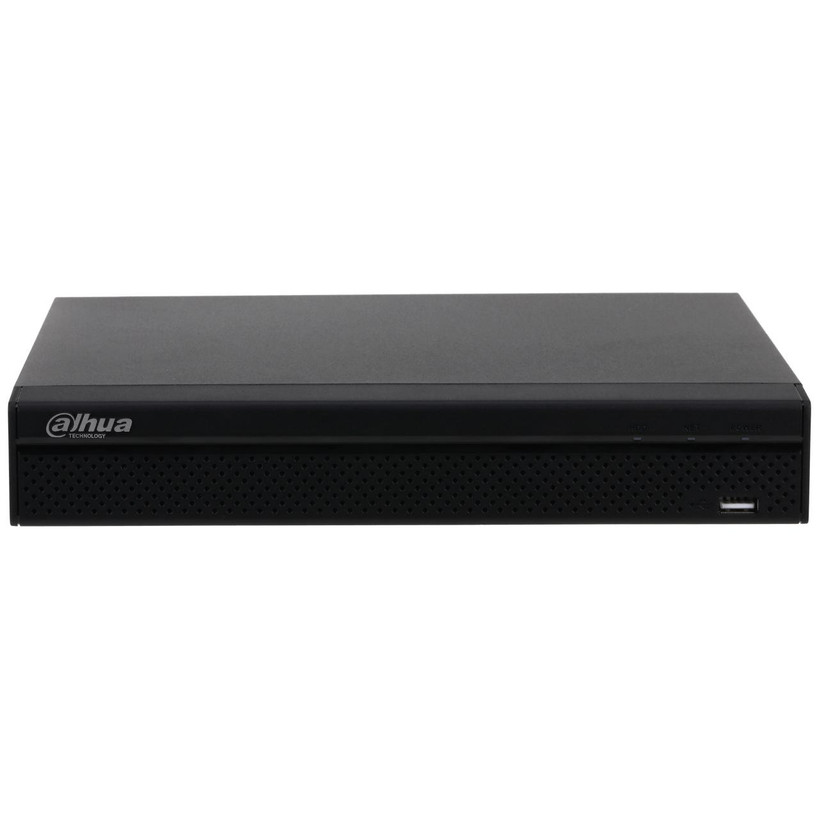

Dahua Lite Series DHI-NVR4108HS-8P-4KS2/L 8 Channel NVR

SKU:
28DHI-NVR4108HS-8P-4KS2/L
UPC:
6939554981555
MPN:
DHI-NVR4108HS-8P-4KS2/L
  • Dahua Lite Series DHI-NVR4108HS-8P-4KS2/L 8 Channel NVR
  • Dahua Lite Series DHI-NVR4108HS-8P-4KS2/L 8 Channel NVR
  • Dahua Lite Series DHI-NVR4108HS-8P-4KS2/L 8 Channel NVR
Log in for pricing

Description

Dahua Lite Series NVR – 8 Channel Compact 1HDD 1U 8PoE Network Video Recorder supports for 4K and H.265 encoding technology with excellent performance at an affordable price. For applications where image details are highly required, it delivers the capability of 4K resolution processing. The NVR can be served as edge storage, central storage or backup storage with an intuitive shortcut operation menu for remote and management control.

Features:

  • New 4.0 user interface, Security baseline 2.1
  • Smart H.265+/H.265/Smart H.264+/H.264 decoding format.
  • Max. decoding capability: 4 × 4MP @30 fps / 8 × 1080p@30 fps. Supports adaptive decoding.
  • Supports mainstream cameras of ONVIF and RTSP protocols.
  • P2P remote surveillance via mobile device and computer.
  • VGA/HDMI simultaneous mirrored video output. Maximum resolution of HDMI is 4K.
  • AI by Camera: Face detection, perimeter protection, IVS, people counting, heat map, and SMD.
  • Supports remote configuration and management of IPC, such as setting parameters, getting information, and upgrading IPC of the same model in batches.

View AllClose

Specifications

System

Main Processor Industrial-grade embedded processor
OS Embedded Linux
Operation Interface Web/operating in local GUI

Perimeter Protection by Camera

Performance 8 channels
AI Search Search for pictures by channel, time, and event type

Face Detection by Camera

Performance 4 channels
Face Attributes 6 attributes: Gender, age, glasses, expression, mouth mask, and beard
AI Search Search for pictures by channel, time, and face attributes

SMD Plus by Camera

Performance 8 channels
AI Search Search by target classification (human, vehicle)

Video

Access Channel 8
Network Bandwidth Access: 80 Mbps; Storage: 80 Mbps; Forward: 60 Mbps
Resolution 8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 720p; D1
Decoding Capability 8 × 1080p@30 fps
Video Output 1 × VGA output, 1 × HDMI output, supports simultaneous video sources output for VGA and HDMI
Multi-screen Display 1, 4, 8, 9 views
Third-party Camera Access ONVIF, RTSP

Compression

Video Smart H.265/H.265/Smart H.264/H.264/MJPEG
Audio PCM/G711A/G711U/G726/AAC

Network

Network Protocol HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register
Mobile Phone Access Android; iOS
Interoperability ONVIF(profile T/S/G); CGI; SDK
Browser Chrome; IE9 or later; Firefox

Record Playback

Multi-channel Playback Up to 8 channels for playback
Record Mode Manual record; alarm recording; SMD recording; smart recording
Storage Local HDD; network
Backup USB storage device
Playback Function 1. Play/pause/stop/slow/quick/backward/by frame
2. Full screen, backup (video clip/file), partial zoom in, and audio on/off

Storage

Disk Group Yes

Alarm

General Alarm Motion detection, privacy masking, video loss, scene changing, PIR alarm, IPC external alarm
Anomaly Alarm Camera disconnection, storage error, disk full, IP conflict, MAC conflict, login locked, and cybersecurity exception
Intelligent Alarm Face detection, perimeter protection (intrusion and tripwire), IVS, people counting, heat map, and SMD alarms
Alarm Linkage Recording, snapshot, audio, buzzer, log, preset, and email

External Port

Audio Input 1 × RCA input
Audio Output 1 × RCA output
HDD 1 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature
USB 2 (1 × front USB2.0; 1 × back USB2.0)
HDMI 1 (supports up to 4K resolution output)
VGA 1
Network 1 × RJ-45, 10/100 Mbps self-adaptive Ethernet port
POE 8

General Parameter

Power Supply 48 V/53 VDC, 1.25 A/1.13 A
Power Consumption < 10 W (HDD not included, idling) Total output power of PoE is 72W, the maximum output power of a single port is 25.5W
Net Weight 0.92 kg (2.03 lb)
Gross Weight 2.07 kg (4.56 lb)
Product Dimensions 260 mm × 232.5 mm × 50.3 mm (10.24" × 9.15" × 1.98") (W × L × H)
Package Dimensions 117 mm × 373 mm × 307 mm (4.61" × 14.69" × 12.09") (W × L × H)
Operating Conditions –10 °C to +55 °C (+10 °F to +131 °F)
Storage Conditions 0 °C to +40 °C (32 °F to 104 °F)
Operating Humidity 10%~93%
Storage Humidity 30%~85%
Operating Altitude 3000 m (9842.52 ft)
Installation Desktop mounted

Certification

Certifications CE: EN62368-1; EN55032, EN55024, EN55035, EN61000-3-2, EN61000-3-3 EN50130-4 FCC: Part 15 Subpart B
View AllClose

Details

Product Information Sheet:
VIEW PDF
User Manual:
VIEW PDF
QuickStart Guide:
VIEW PDF
Installation Guide:
VIEW PDF
View AllClose
