Datatek 18U 600mm Swing Frame Wall Mount Data Cabinet - SFPS Series

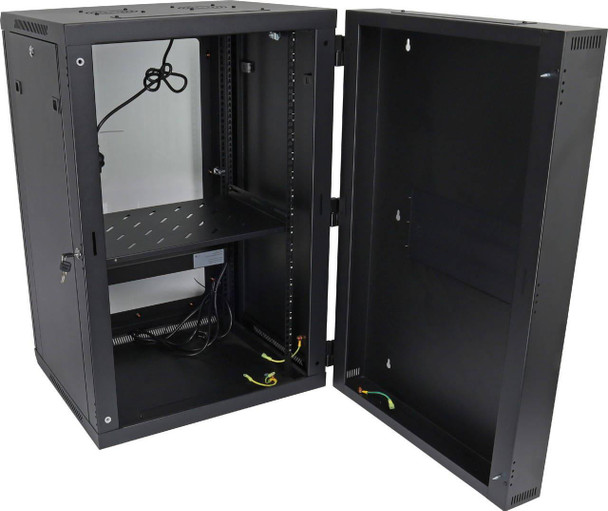

The Datatek 24B18RWS66FPS is the ultimate 18U 600 mm deep swing-frame wall cabinet – the whole 19″ rack swings out almost 180° on heavy-duty reversible drop hinges, giving you full rear access for patching, cable dressing and equipment swaps without ever removing the cabinet from the wall.

Perfect for offices, schools, medical centres, retail back-of-house and anywhere you need easy maintenance but only have wall space. Arrives 100 % fully assembled and loaded with fans, power and shelf.

Key Features & Benefits

• Full swing-out 19″ frame on heavy-duty reversible hinges (left or right opening)

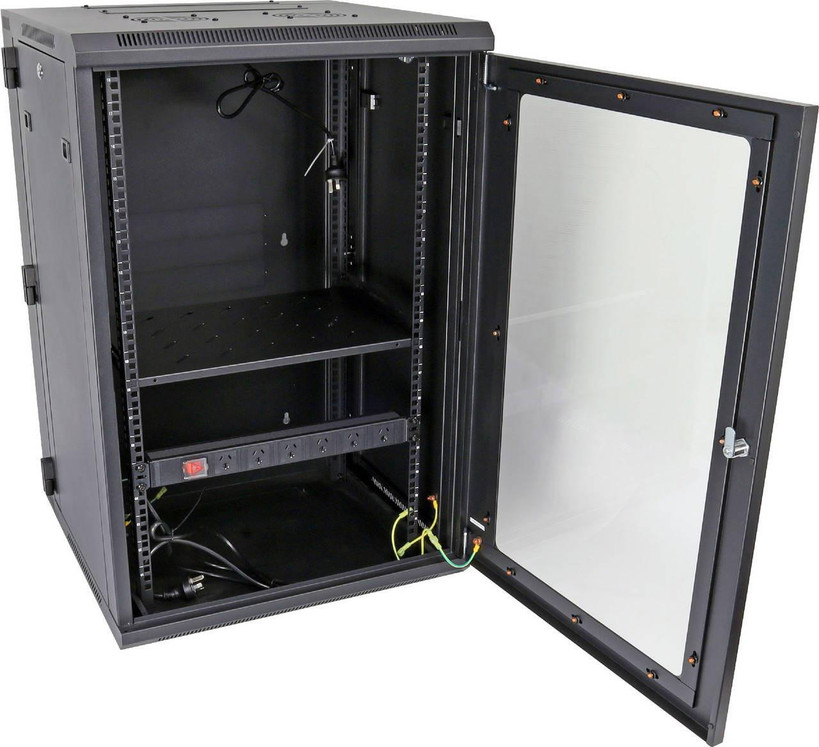

• Reversible, lockable toughened tempered-glass front door with metal frame
• Door opens >180° and is quickly removable

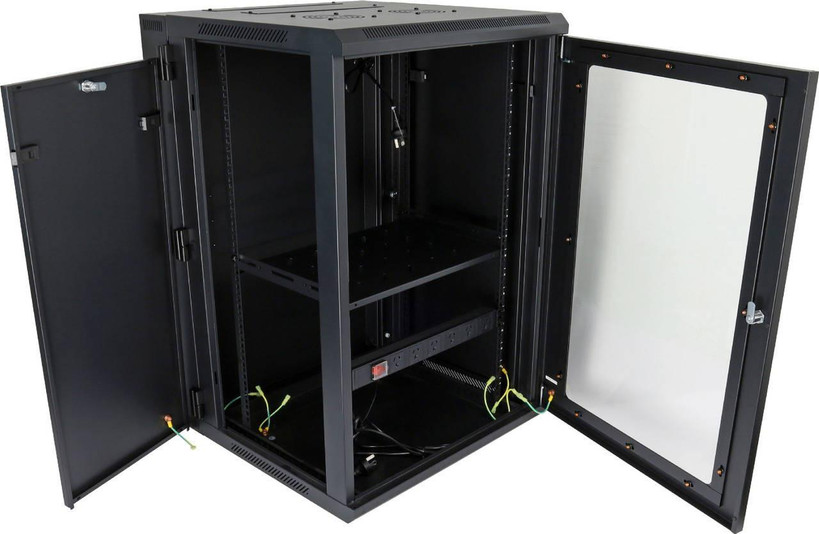

• Removable lockable side panels (keyed same as front door)
• 2 × pre-wired 240 V ceiling-mounted cooling fans
• 1 × 6-outlet Australian vertical PDU (10 A)
• 1 × fixed ventilated shelf
• 12 × M6 cage nuts & screws included
• Large cable entry glands top, bottom & rear
• Vented top & bottom for excellent airflow
• Pre-fitted earthing cables
• Includes 4 × heavy-duty wall-mount bolts
• 60 kg load capacity
• IP20 rated

Technical Specifications

• Usable Height: 18RU
• External Dimensions: 600 (W) × 600 (D) × 905 (H) mm
• Weight: 44 kg
• Colour: Black RAL9004

What’s Included – Ready to Hang & Swing

• 1 × Fully assembled 18U swing cabinet
• 2 × Pre-wired 240 V cooling fans
• 1 × 6-outlet Australian PDU
• 1 × Fixed shelf
• 12 × M6 cage nuts & screws
• 4 × Wall mounting bolts
• 2 × Keys (all locks matched)

The smartest, easiest-to-service 18U wall cabinet on the market – order the Datatek 24B18RWS66FPS today and get it on the wall tomorrow!
