Datatek 4U 600mm Swing Frame Wall Mount Data Cabinet - SFPS Series

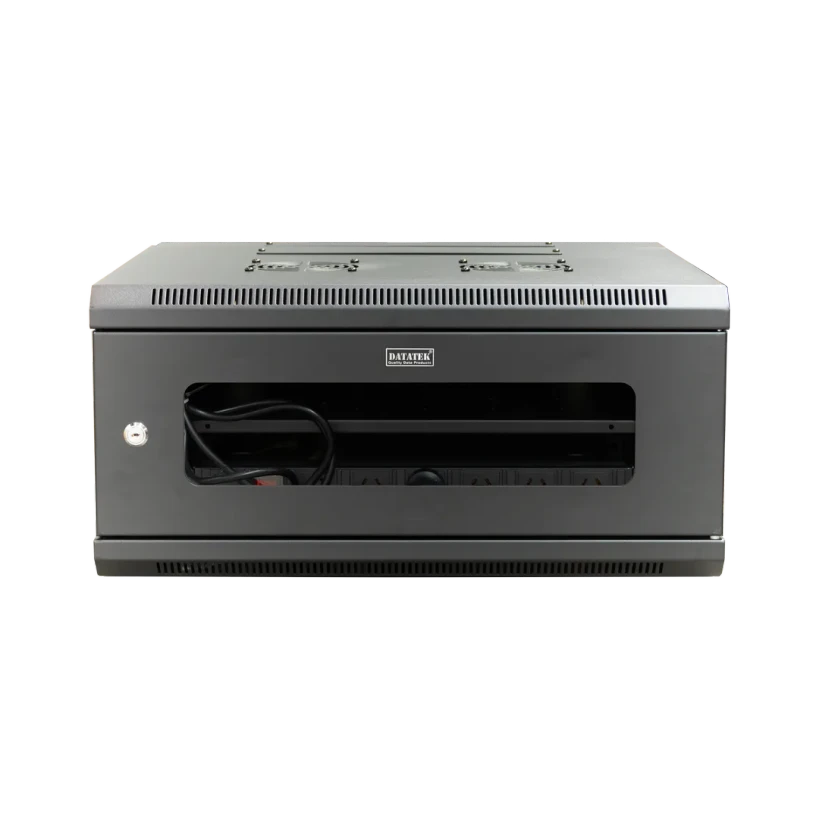

The DataTek 24B4RWS66FPS is the ultimate compact 4U 600 mm deep swing-frame wall cabinet. The entire rack swings out almost 180° on heavy-duty reversible hinges, giving you complete rear access for patching and maintenance without ever removing it from the wall.

Perfect for small offices, security NVRs, VoIP, patch panels or anywhere you need full-depth equipment in a tiny footprint. Arrives 100 % fully assembled and loaded with fans, power and shelf.

Key Features & Benefits

• Full swing-out 19″ frame on heavy-duty reversible drop hinges (left or right opening)

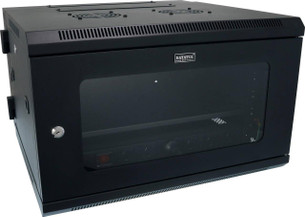

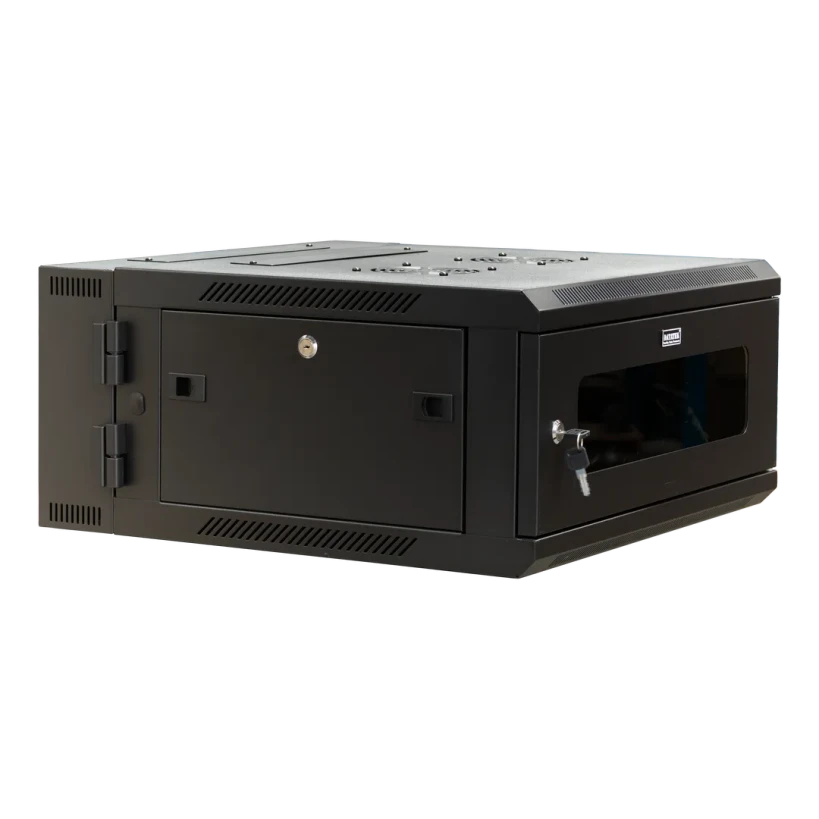

• Reversible, lockable toughened tempered-glass front door with metal frame

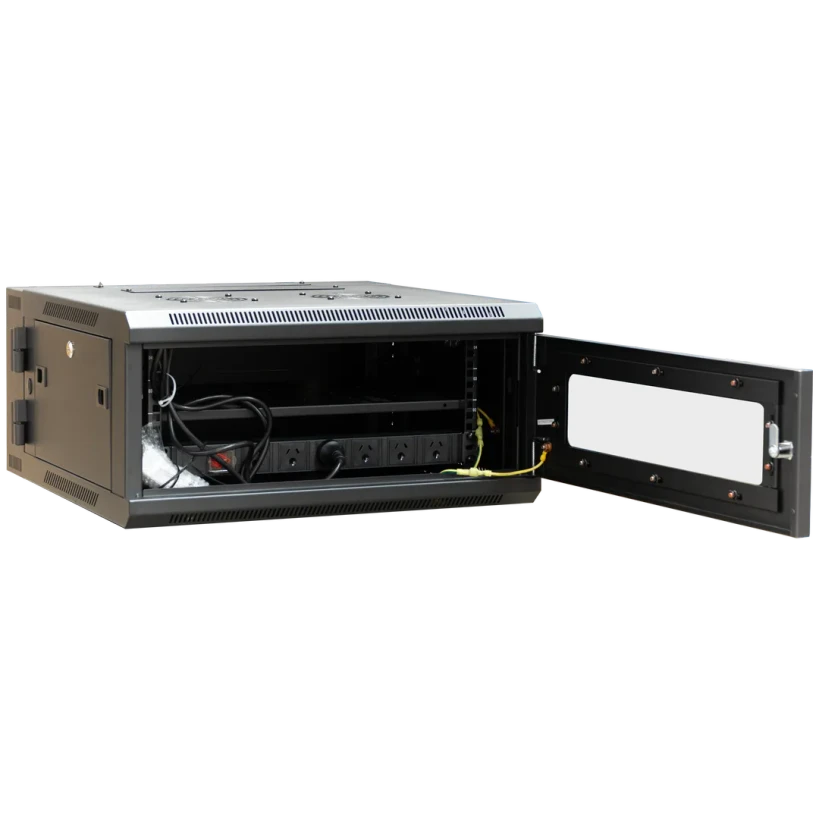

• Door opens >180° and is easily removable

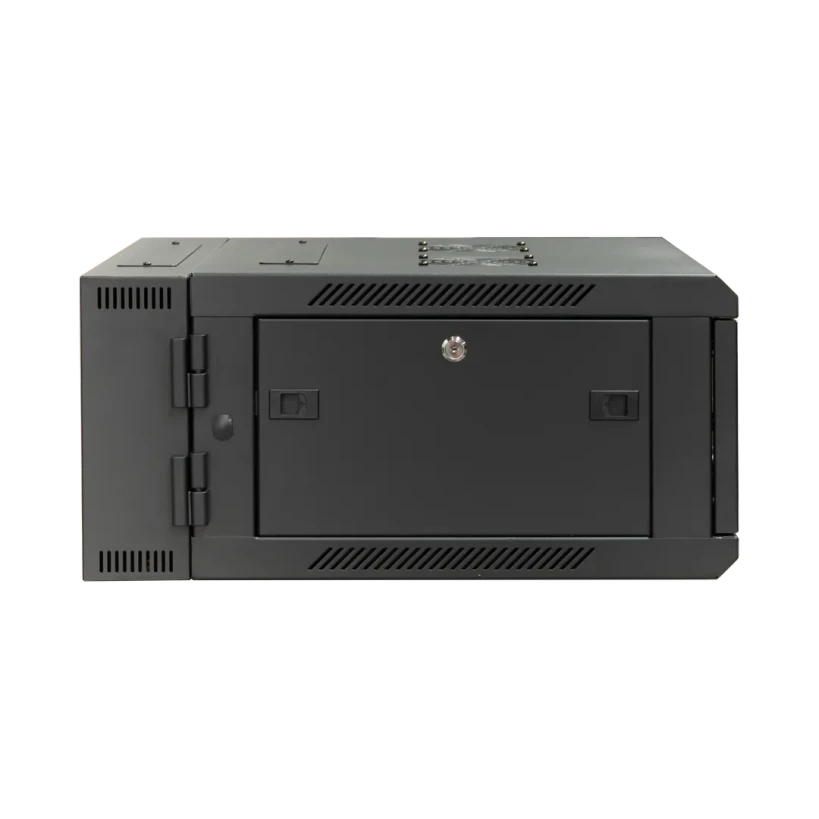

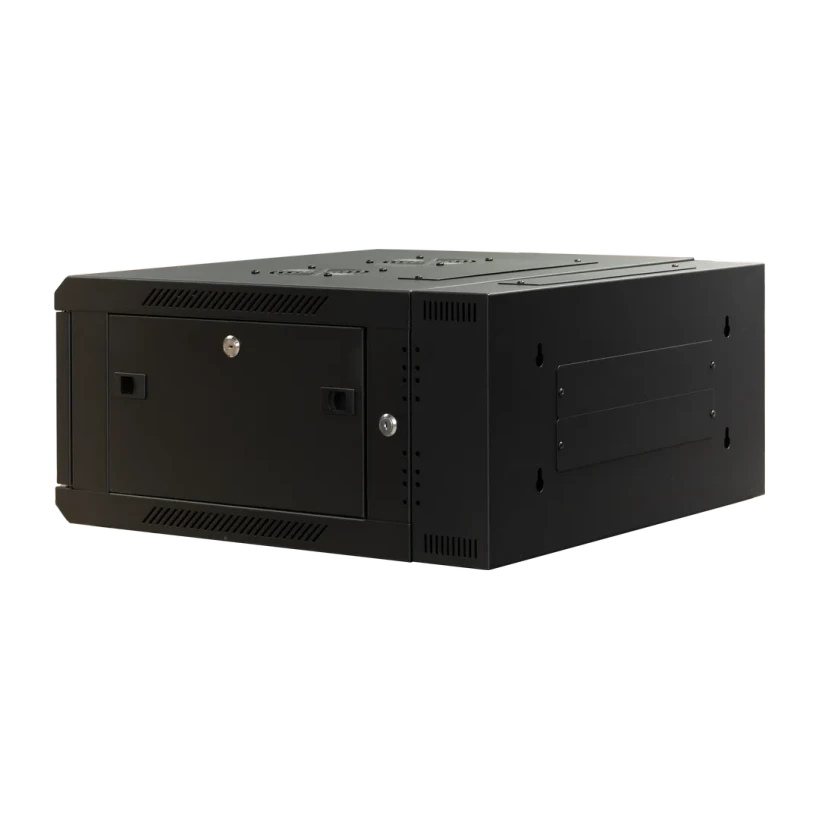

• Removable lockable side panels (keyed same as front door)
• 2 × pre-wired 240 V ceiling-mounted cooling fans
• 1 × 6-outlet Australian vertical PDU (10 A)
• 1 × fixed ventilated shelf
• 12 × M6 cage nuts & screws included
• Large cable entry top, bottom & rear
• Vented top & bottom for excellent airflow
• Pre-fitted earthing cables
• Includes 4 × heavy-duty wall-mount bolts
• 60 kg load capacity
• IP20 rated

Technical Specifications

• Usable Height: 4RU
• External Dimensions: 600 (W) × 600 (D) × 280 (H) mm
• Weight: ~22 kg
• Colour: Black RAL9004

What’s Included – Ready to Hang & Swing

• 1 × Fully assembled 4U swing cabinet
• 2 × Pre-wired 240 V cooling fans
• 1 × 6-outlet Australian PDU
• 1 × Fixed shelf
• 12 × M6 cage nuts & screws
• 4 × Wall mounting bolts
• 2 × Keys (all locks matched)

The smartest, most service-friendly compact 4U wall cabinet on the market – order the DataTek 24B4RWS66FPS today and get it on the wall tomorrow!
