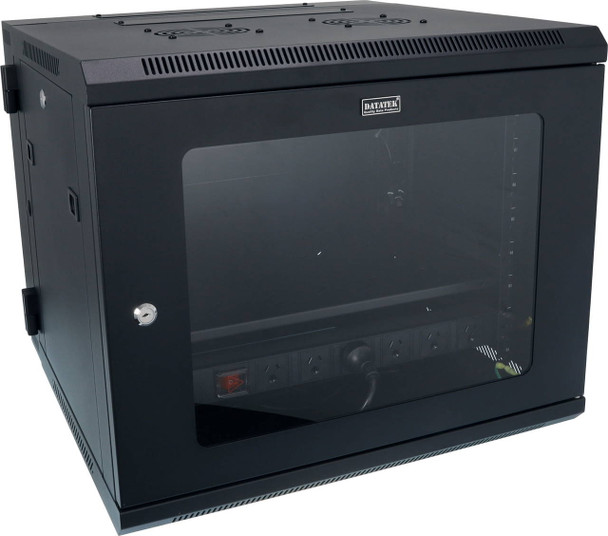

Datatek 9U 600mm Swing Frame Wall Mount Data Cabinet - FPS Series

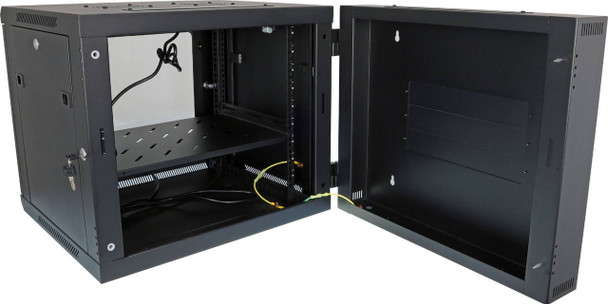

The DataTek 24B9RWS66FPS is the perfect mid-size 9U 600 mm deep swing-frame wall cabinet. The entire 19″ rack swings out almost 180° on heavy-duty reversible drop hinges, giving you full rear access for patching and maintenance without ever taking the cabinet off the wall.

Ideal for offices, schools, medical centres, retail back-of-house, small comms rooms and NVR/security installations. Arrives 100 % fully assembled and loaded with fans, power and shelf.

Key Features & Benefits

• Full swing-out 19″ frame on heavy-duty reversible hinges (left or right opening)
• Reversible, lockable toughened tempered-glass front door with metal frame
• Door opens >180° and is quickly removable
• Removable lockable side panels (keyed same as front door)
• 2 × pre-wired 240 V ceiling-mounted cooling fans
• 1 × 6-outlet Australian vertical PDU (10 A)
• 1 × fixed ventilated shelf
• 12 × M6 cage nuts & screws included
• Large cable entry glands top, bottom & rear
• Vented top & bottom for excellent airflow
• Pre-fitted earthing cables
• Includes 4 × heavy-duty wall-mount bolts
• 60 kg load capacity
• IP20 rated

Technical Specifications

• Usable Height: 9RU
• External Dimensions: 600 (W) × 600 (D) × 500 (H) mm
• Weight: 31.5 kg
• Colour: Black RAL9004

What’s Included – Ready to Hang & Swing

• 1 × Fully assembled 9U swing cabinet
• 2 × Pre-wired 240 V cooling fans
• 1 × 6-outlet Australian PDU
• 1 × Fixed shelf
• 12 × M6 cage nuts & screws
• 4 × Wall mounting bolts
• 2 × Keys (all locks matched)
