Description
Safeguard your metering infrastructure with the Digitek 27MB2424UA 24x24 Inch Standard ACT/NSW Meter Box, a robust and compliant solution engineered for Australian residential and commercial electrical installations. Meeting stringent ACT and NSW regulations, this meter box features precise dimensions of 600mm x 600mm x 270mm (H x W x D), providing ample space for standard metering equipment while ensuring easy access and secure housing. Crafted from premium 1.2mm galvanised steel sheets (AS1397 standard), it offers exceptional durability with riveted hinges and tabs, corrosive-resistant paint on all welds, and a high-quality powder coat finish for long-term weather resistance.

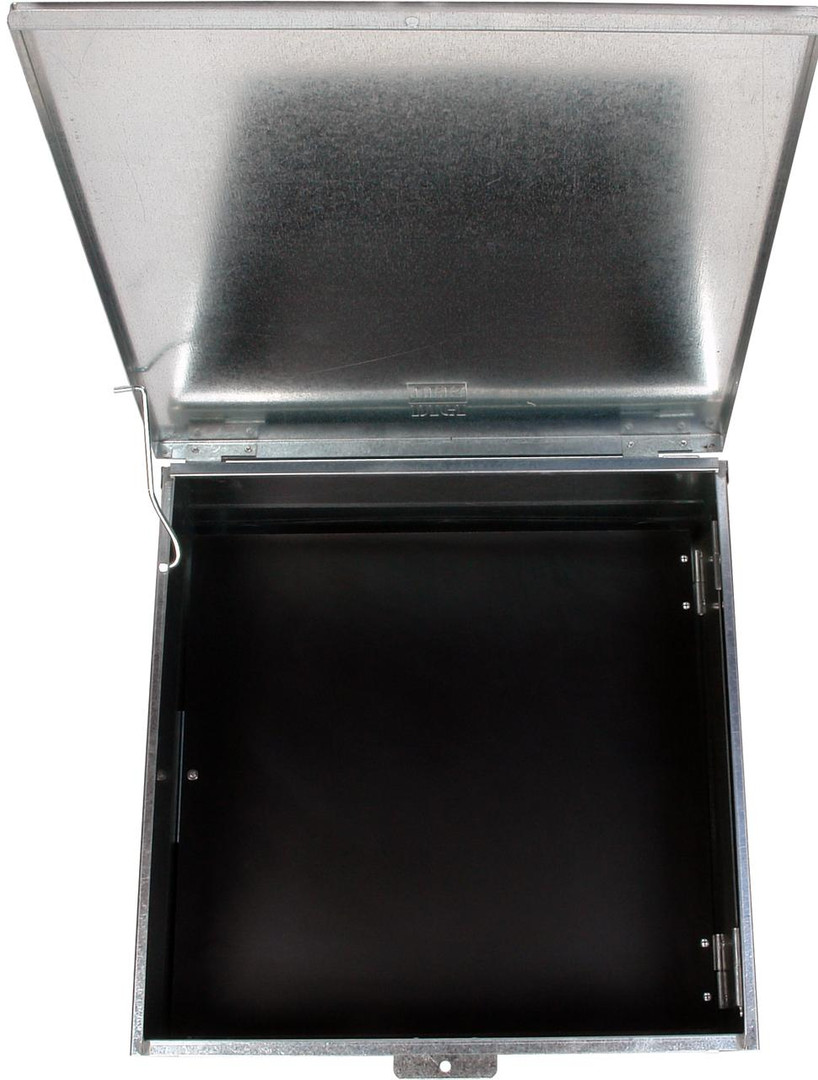

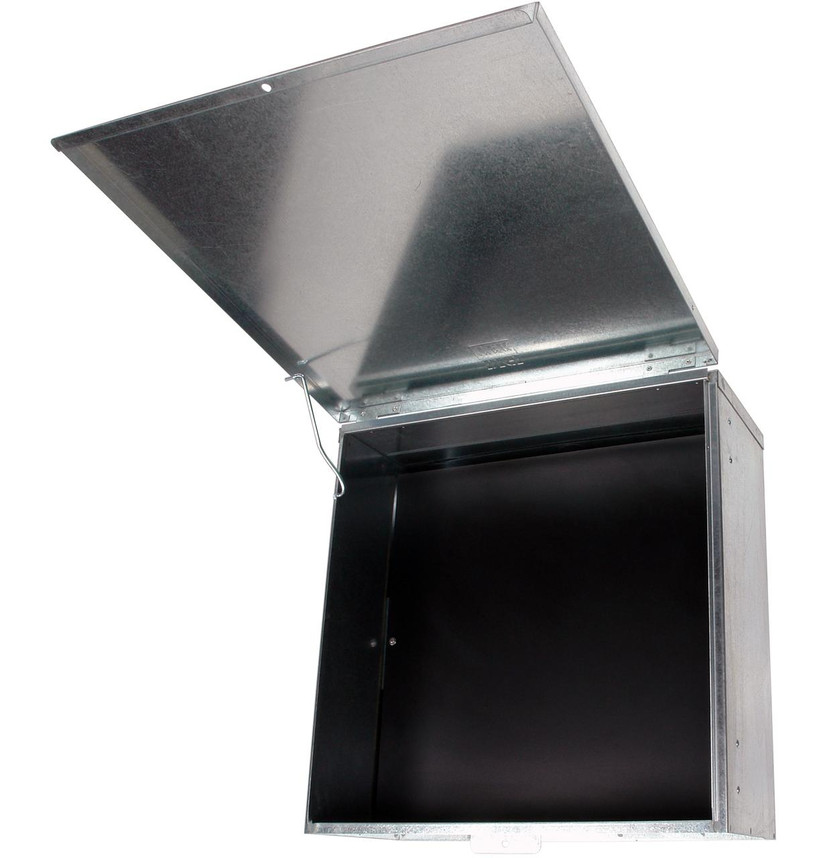

The removable, top-hinged reinforced door with a switchable arm support (left/right) enhances usability and security, complemented by a single padlock locking point (padlock not included) and an M5 x 20 earth stud for grounding. Rated IP23 (AS1939) for protection against solid objects and water spray, this meter box includes 20 cable knockouts (51mm) on the bottom, top, and back for flexible wiring setups. Packaged in a protective cardboard box for safe delivery, it comes complete with essential accessories: the pre-installed 27MP2424UH undrilled insulating panel (AS1795/IEC60893) and 27MA12 12-pole loom box for streamlined installations.
Key Features:
- Compliant Design: Standard ACT/NSW specifications for seamless regulatory approval.
- Durable Build: 1.2mm galvanised steel with powder coating and riveted reinforcements.
- Secure Access: Removable hinged door, switchable arm, and padlock-ready locking.
- Installation Ready: IP23 rating, earth stud, multiple cable knockouts, and included panel/loom box.
- Versatile Use: Suited for domestic homes, apartments, offices, and warehouses.
Backed by Digitek's commitment to Australian-made quality, the Digitek 27MB2424UA Meter Box delivers reliable performance in harsh environments, with a 1-year warranty against manufacturing defects. Upgrade your electrical compliance today with this essential, weatherproof enclosure—order now for fast, secure delivery.
Details
Enclosure Type: |
Standard ACT/NSW Meter Box
|
Enclosure IP Rating: |
IP23 (AS1939)
|
Enclosure Grounding Point: |
Earth Stud M5 x 20
|
Enclosure Cable Knockouts: |
20 - 51mm (Bottom, Top, Back)
|
Materials: |
1.2mm Galvanised Steel Sheets (AS1397 Standard)
|
Dimensions: |
600mm x 600mm x 270mm (L x W x H)
|
Packaging: |
Brown Box with Label
|
Warranty: |
1 Year
|
Included Accessories: |
12 Pole Loom Box (27MA12), Pre Installed Undrilled Insulating Panel (AS1795/IEC60893)
|
Pallet Quantity: |
24
|
