Description
Digitek Band Pass Filter - Block E
Band-pass filters offer easy passage of frequencies within a specified range while rejecting frequencies above and below the specified range. A band-pass filter can be used to protect a receiver against interference from transmissions out of the passband or to reduce spurious output from a transmitter.
Our selection of band-pass filters covers DVB-T frequencies and are manufactured in Channel Block configuration.
An inexpensive way to reject unwanted signals and improve television reception.
Features:
- Passes frequencies within the Block E range (652 - 694MHz)
Details
Product Information Sheet: |
|
Filter Type: |
Band Pass
|
Channel Pass Through: |
46 - 51
|
Colour: |
Silver
|
Band Pass Frequency Range: |
652 - 694MHz
|
Channel Planning Block: |
Block E
|
Connector Type: |
F Type Female to F Type Male
|
Typical Signal Rejection: |
40 - 45dB
|
IP Rating: |
IPX4
|
Packaging: |
Single Piece
|
Warranty: |
1 Year
|
Carton Quantity: |
-
|
Pallet Quantity: |
-
|
Related Products
Digitek Band Pass Filter - Block A (174 - 230MHz)
Digitek
Digitek Band Pass Filter - Block A
Band-pass filters offer easy passage of frequencies within a specified range while rejecting frequencies above and below the specified range. A band-pass filter can...
09ABPFA
Digitek Band Pass Filter - Block C (568 - 610Mhz)
Digitek
Digitek Band Pass Filter - Block C
Band-pass filters offer easy passage of frequencies within a specified range while rejecting frequencies above and below the specified range. A band-pass filter can...
09ABPFC
Digitek Band Pass Filter - Block D (610 - 652MHz)
Digitek
Digitek Band Pass Filter - Block D
Band-pass filters offer easy passage of frequencies within a specified range while rejecting frequencies above and below the specified range. A band-pass filter can...
09ABPFD
Digitek Band Pass Filter - Block B (526 - 568Mhz)
Digitek
Digitek Band Pass Filter - Block B
Band-pass filters offer easy passage of frequencies within a specified range while rejecting frequencies above and below the specified range. A band-pass filter can...
09ABPFB

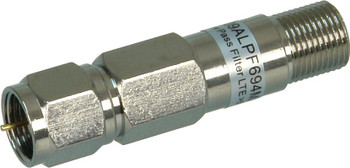

Digitek Low Pass LTE Filter
