Digitek LTE Series Outer Fringe Area Phased Array UHF Antenna - Display Box

SKU:
01CUPA2L
UPC:
9340591004294
Display Box
  • Digitek LTE Series 01CUPA2L outer fringe phased array UHF antenna in silver aluminum for digital TV

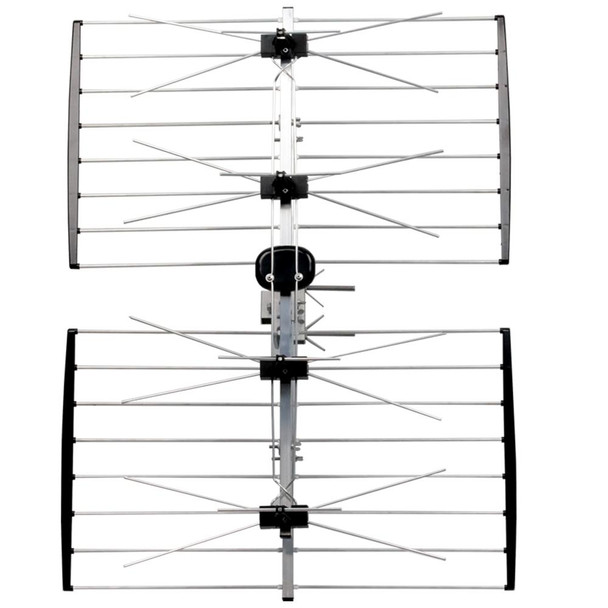

  • Compact Digitek folding 36-element LTE UHF phased array with LTE filter and F-Type balun
  • Silver Digitek LTE Series antenna mounted horizontally for channels 28-51 fringe reception
  • Digitek Heavy-duty LTE phased array UHF antenna with 783x600x210mm dimensions and V-block U-bolt
  • Close-up of Digitek Heavy-duty LTE phased array UHF antenna showing LTE Filter and F-Type Balun
  • Close-up of Digitek Heavy-duty LTE phased array UHF antenna showing  V-block U-bolt
  • Close-up of  V-block U-bolt for Digitek Heavy-duty LTE phased array UHF antenna
  • Packaged Digitek 01CUPA2L LTE Series UHF antenna in display box for retail shipping and storage
Log in for pricing

Description

The Digitek LTE Series Outer Fringe Area Phased Array UHF Antenna 01CUPA2L Display Box is a cutting-edge, Australian-engineered solution for challenging outer fringe digital TV reception, delivering robust UHF Band 4 & 5 (channels 28-51) coverage with >15dBi max gain and 16-21dB front-to-back ratio to combat multipath interference and ghosting. This 36-element compact folding phased array features an F-Type balun with LTE (4G/5G) low-pass filter for interference-free signals, stainless steel screws for corrosion resistance, and heavy-duty silver aluminum construction with UV-stabilized plastics for enduring Australian conditions. Versatile for vertical or horizontal mounting, it includes a rubber boot for F-Type protection and fitted V-block & U-bolt, packaged in a retail-ready display box—backed by a 3-year warranty for premium HDTV performance in remote areas.

Features:

  • F-Type Balun with LTE Filter: Integrated low-pass filter blocks 4G/5G mobile interference for pristine UHF digital signals.
  • Reduced Multipath and Anti-Ghosting: Optimized phased array design minimizes signal reflections and ghosting in outer fringe environments.
  • Stainless Steel Screws: Rust-resistant fasteners at connection points ensure long-term durability in harsh coastal or rural settings.
  • Australian Design and Engineering: Tailored and tested locally to excel in diverse Australian weather, terrain, and signal challenges.
  • Unique Compact Folding Phased Array: 36 elements in a foldable structure for easy transport, storage, and installation.
  • Heavy-Duty Construction: Robust all-component build withstands wind loads and environmental stress for reliable performance.
  • Versatile Mounting Options: Supports vertical or horizontal setup with included elevation/tilt bracket for optimal alignment.
  • Premium Materials: Silver aluminum elements and UV-stabilized plastics provide superior UV and corrosion resistance.
  • Complete Accessories: Rubber boot seals F-Type connector, plus fitted V-block & U-bolt for quick rooftop or mast mounting.
  • 3-Year Warranty: Extended coverage for confidence in fringe-area digital TV installations.

View AllClose

Details

Antenna Category:
UHF
Antenna Band:
Band 4/5 (Channels 28 - 51)
Antenna Type:
Phased Array
Antenna Elements:
36
Antenna Filter:
LTE (4G/5G)
Antenna Max Gain:
UHF>15dBi
Antenna Front to Back Ratio:
16 - 21dB
Antenna Materials:
Aluminium, UV Stabilised Plastics
Colour:
Silver
Antenna Dimensions:
783mm x 600mm x 210mm (L x W x H)
Included Accessories:
Rubber Boot (For F Connector), V Block & U Bolt fitted to antenna
Unit Packaging:
Display Box
Warranty:
3 Years
Carton Quantity:
5
Pallet Quantity:
40
Product Information Sheet - V1:
Product Information Sheet - V2:
