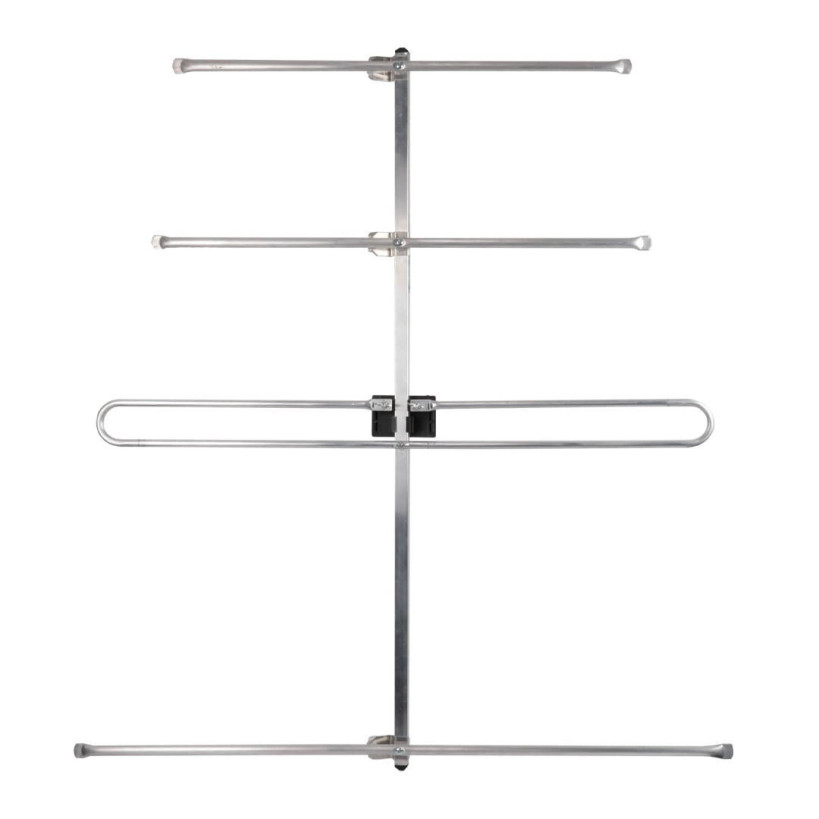

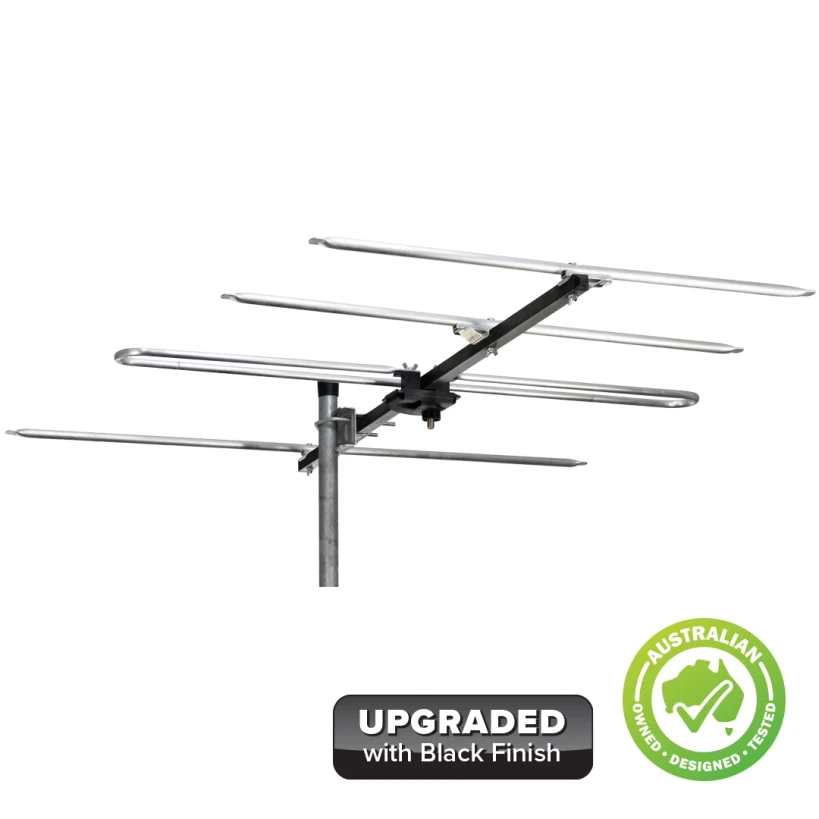

Hills Antenna 01DY4A-4G VHF 4 Element Yagi Antenna

The Hills Antenna DY4A 4 Element VHF Antenna with integrated 4G Low Pass Filter is a high-performance solution designed for areas where VHF and 4G signals coexist. Its 4-element design ensures reliable and clear reception while minimizing interference from 4G signals. Constructed with a square aluminium boom and UV-stabilized plastics, it combines durability, strength, and lightweight construction. The antenna features an integral balun housing, extruded elements, and F-Type connectors to ensure consistent performance and easy installation.

Features:

• 4G/LTE >694MHz Filter: Minimizes 4G signal interference
• Matched Balun: Optimizes MER performance and reduces insertion loss
• Square Aluminium Boom: Lightweight yet strong construction
• Interlocking Clip Design: Ensures secure element connection to the boom
• Extruded Elements: Provides added strength and durability
• Integral Balun Housing: Includes sealing rubber cable boot for protection
• UV-Stabilized Plastics: Long-lasting outdoor performance
• F-Type Connectors: Ensures reliable and consistent connection
• Fold-Out Element Design: Simplifies assembly and installation
• Frequency Response: VHF Channels 6-12
• Forward Gain: 6.5dB average
• Max 4G Rejection (@730MHz): -47.3dB

The Hills Antenna DY4A provides a robust, high-quality VHF reception solution with integrated 4G filtering, combining reliability, strength, and ease of installation for modern Australian households.
