Description

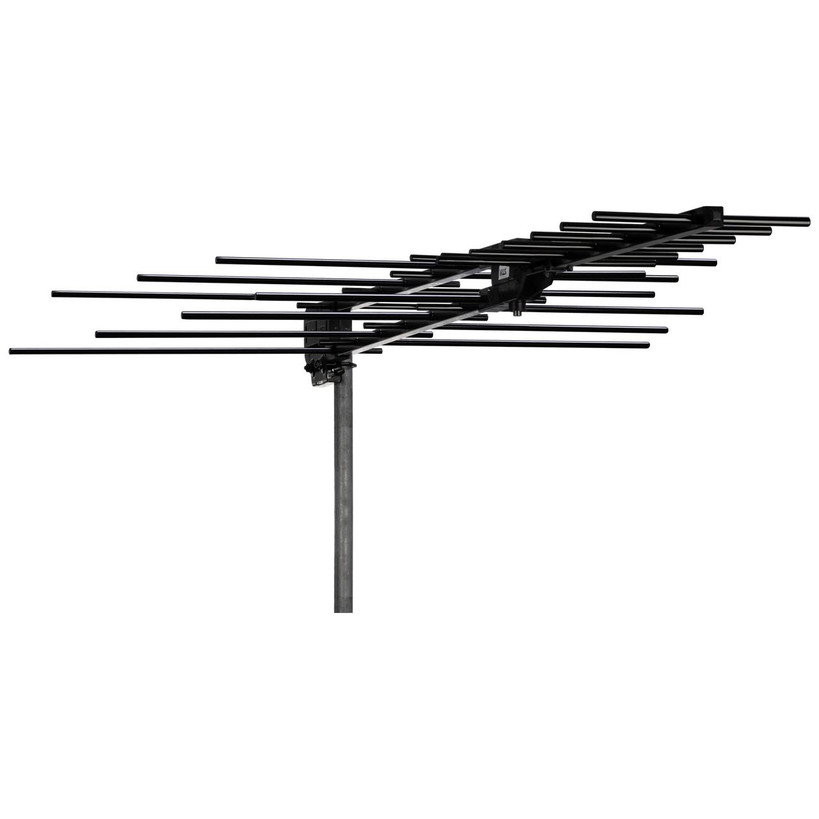

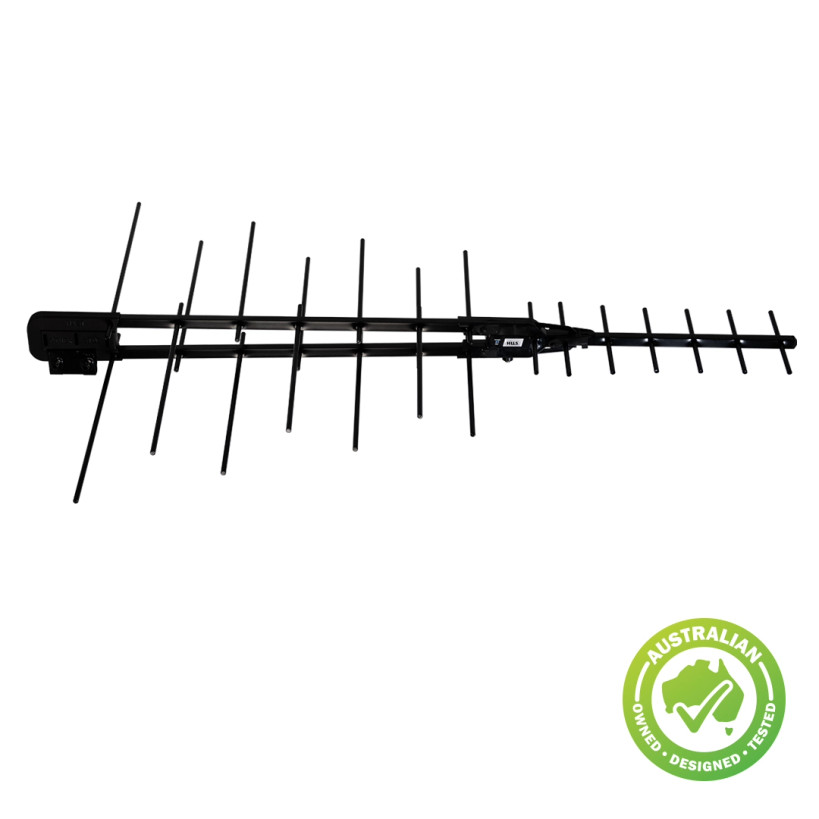

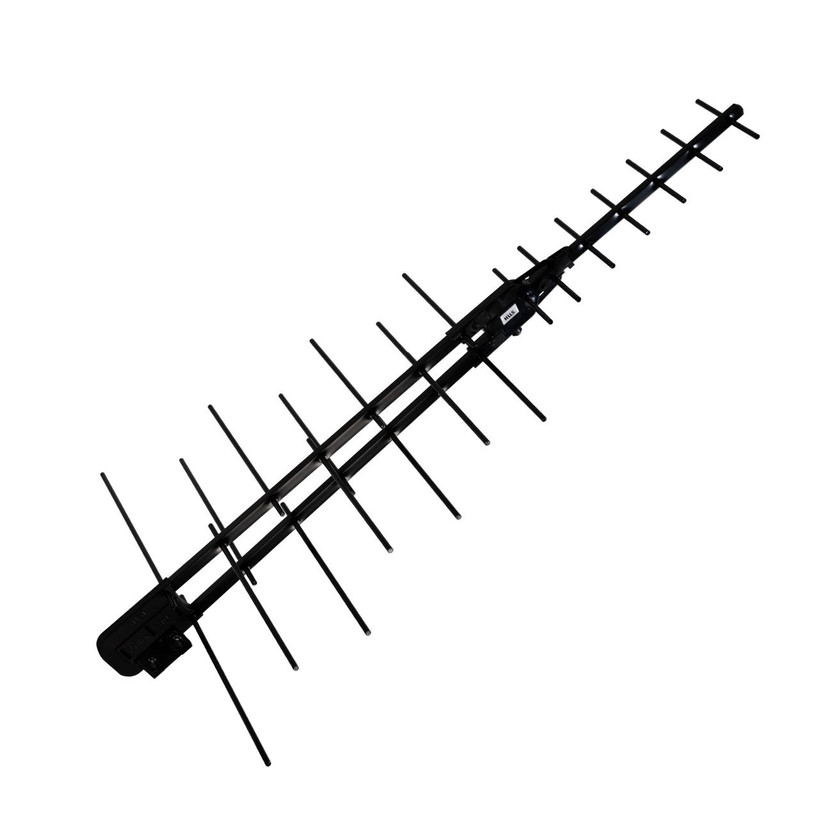

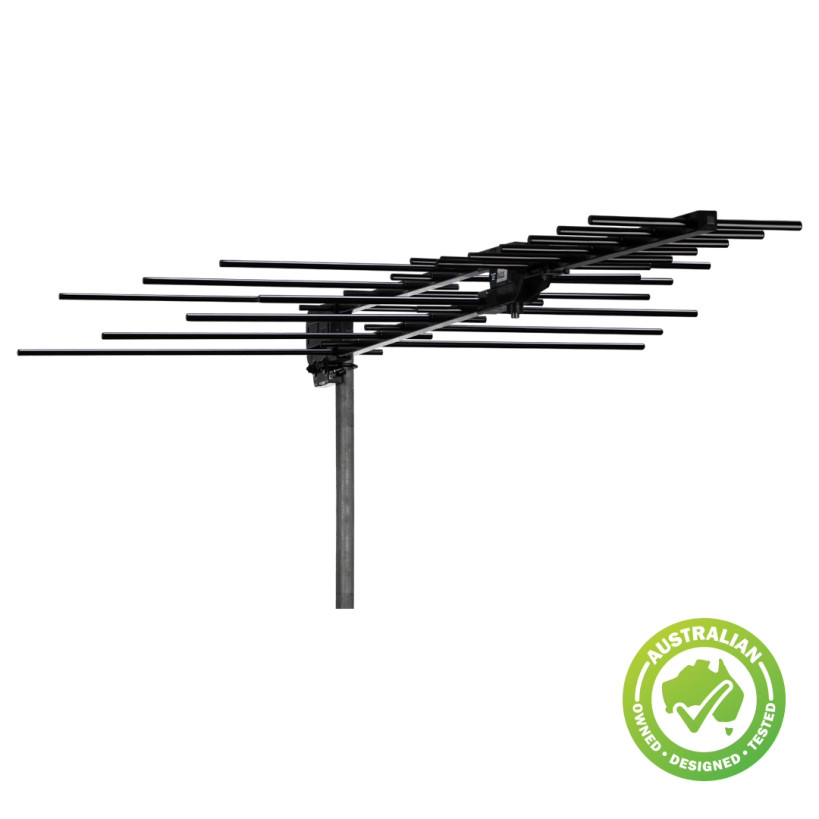

The Hills Antenna 01TBUV7-4G Tru-Band Black Arrow is designed for the digital-only TV environment in Australian Capital Cities and regional areas serviced by VHF or VHF/UHF transmitters. Recognised as the gold standard of Tru-Band antennas, it provides the gain needed for prime locations while maintaining a sleek black design that blends seamlessly with your home’s roof.
This updated edition features an individually tuned RF filter circuit with shielded inductors, reducing interference from 4G and 5G mobile towers. Made from durable aluminium, the antenna is strong yet lightweight and built for long-lasting performance. Ideal for domestic and commercial installations, it pairs perfectly with the BC2844-BLK Black Tripod Mount or FB602406B Black Fascia Bracket for a professional finish.
Features:
- Designed for precise digital frequency bands for true HD performance
- Boomlock™ manufacturing technology developed and patented by Hills Antenna
- Matched balun for best MER performance and lowest insertion loss
- Ultrasonically sealed balun prevents water ingress for maximum reliability
- Strong mechanical construction, lightweight and compact
- Made from aluminium for superior corrosion resistance
- Covers Australian channels 6-12 and 28-38
- 4G+ filter included to reduce mobile interference
- Lifetime Manufacturer Warranty included
The Hills Antenna 01TBUV7-4G Tru-Band Black Arrow combines high-performance reception with a sleek, unobtrusive design, ensuring trouble-free viewing while maintaining your home’s aesthetics.
Details
Antenna Category: |
UHF/VHF
|
Antenna Band: |
Band 3 (Ch 6-12) & Band 4 (Ch 28-38)
|
Antenna Type: |
Yagi/Log periodic
|
Antenna Elements: |
7 UHF & 7 VHF
|
Antenna Filter: |
4G+
|
Antenna Max Gain: |
UHF 8-10dBi & VHF 6-8dBi
|
Antenna Front to Back Ratio: |
UHF 16-20dB & VHF 13-15dB
|
Antenna Materials: |
Aluminium, UV Stabilished Plastics
|
Colour: |
Black
|
Antenna Dimensions: |
1245(L) x 850(W) x 85(H) mm
|
Included Accessories: |
Rubber Boot, V Block & U Bolt (fitted)
|
Unit Packaging: |
Display Box
|
Warranty: |
Lifetime Warranty
|
