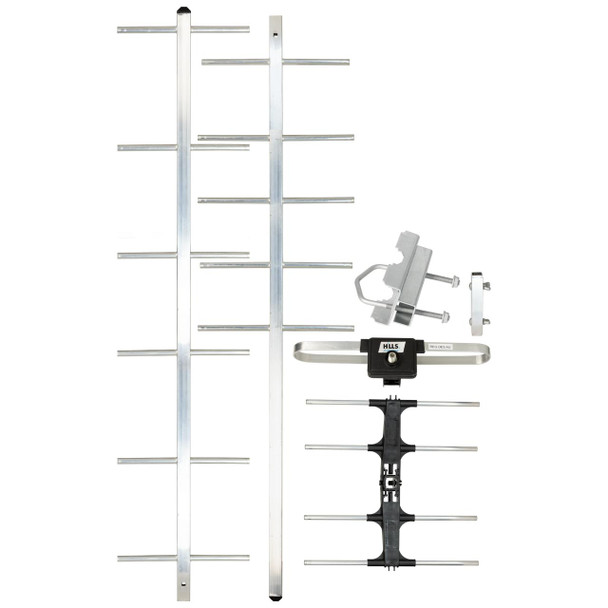

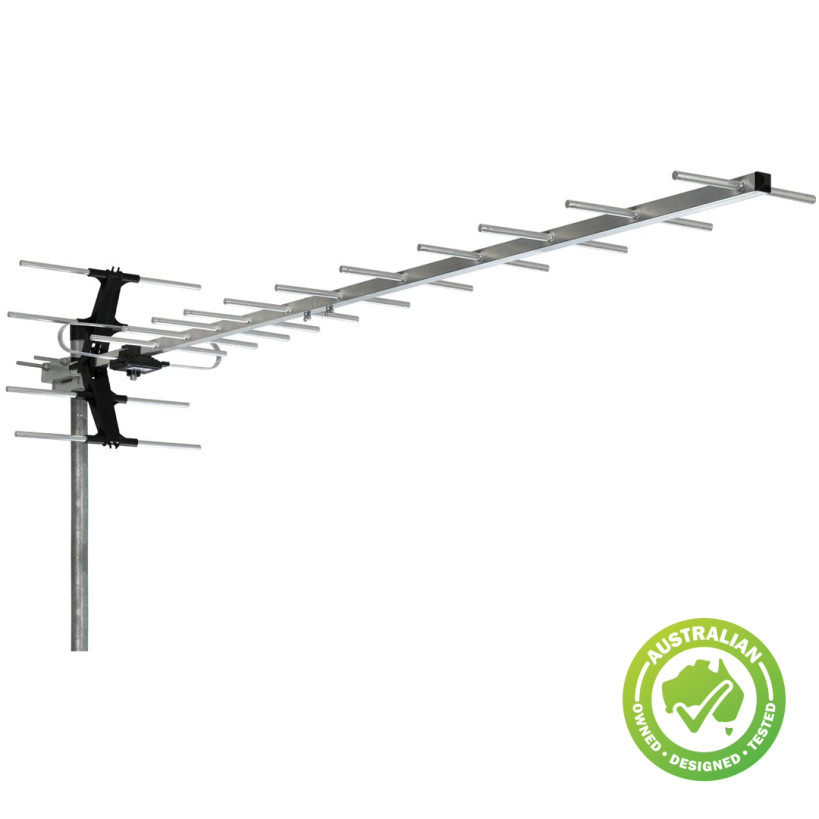

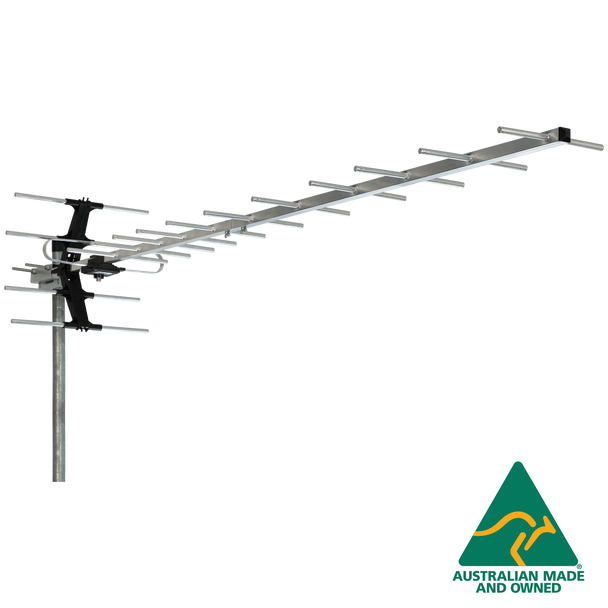

Hills Antenna 01TSF2851-4G Tru-Spec-Fringe 2851 16-Element UHF 4G Antenna

SKU:
01TSF2851-4G
  • Hills Antenna 01TSF2851-4G Tru-Spec-Fringe 2851 16-Element UHF 4G Antenna
  • Hills Antenna 01TSF2851-4G Tru-Spec-Fringe 2851 16-Element UHF 4G Antenna
  • Hills Antenna 01TSF2851-4G Tru-Spec-Fringe 2851 16-Element UHF 4G Antenna
  • Hills Antenna 01TSF2851-4G Tru-Spec-Fringe 2851 16-Element UHF 4G Antenna
  • Hills Antenna 01TSF2851-4G Tru-Spec-Fringe 2851 16-Element UHF 4G Antenna
  • Hills Antenna 01TSF2851-4G Tru-Spec-Fringe 2851 16-Element UHF 4G Antenna
  • Hills Antenna 01TSF2851-4G Tru-Spec-Fringe 2851 16-Element UHF 4G Antenna
  • Hills Antenna 01TSF2851-4G Tru-Spec-Fringe 2851 16-Element UHF 4G Antenna
Log in for pricing

Description

Hills Antenna 01TSF2851-4G Tru-Spec-Fringe 2851 16-Element UHF 4G Antenna is the latest in the evolution of our UHF Yagi antennas for Digital TV and is designed for fringe signal areas, covering channels 28-51. The Tru-Spec TSF2851 has long been Australia’s favourite UHF antenna due to its unique BoomLock™ manufacturing process, making this antenna durable, performing well beyond all expectations. This new edition of the TSF2851 now features an individually tuned and optimised RF filter circuit. Specifically designed with shielded inductors, to better withstand any potential 4G/5G transmission interference from the growing number of mobile towers. Designed and manufactured in Australia with unmatched quality and a Lifetime Warranty, you simply cannot go wrong with this antenna. It is suitable for both domestic and commercial applications. In coastal and high wind areas, it is recommended a FB607251 Tru-Spec Centre Support base is used.

Features:

  • True digital specifications for fringe UHF reception areas
  • Boomlock™ manufacturing technology - Patented by Hills
  • Channels 28-51
  • Ultrasonically sealed balun housing for maximum reliability
  • PCB balun for true matching and lowest insertion loss
  • Included 4G+ filter
  • Strong and lightweighted construction
  • Two piece boom
  • Lifetime manufacturer warranty

View AllClose

Details

Antenna Category:
UHF
Antenna Band:
Band 4 & 5 (Ch 28-51)
Antenna Type:
Yagi
Antenna Elements:
17
Antenna Filter:
4G+
Antenna Max Gain:
UHF 10-13dBi
Antenna Front to Back Ratio:
UHF 15-25dB
Antenna Materials:
Aluminium, UV Stabilished Plastics
Colour:
Silver
Antenna Dimensions:
1745(L) x 290(W) x 250(H) mm
Included Accessories:
Rubber Boot, V Block & U Bolt (fitted)
Unit Packaging:
Display Box
Warranty:
Lifetime Warranty
Carton Quantity:
-
Pallet Quantity:
-
Product Information Sheet:
Sell Sheet:
