Hills Antenna BC74279H 2 In - 4 Out Multiswitch

The Hills Antenna BC74279H 2 In - 4 Out Multiswitch is a professional-grade satellite signal distributor designed for seamless Foxtel and pay-TV setups in residential or commercial environments. With two satellite inputs feeding four independent outputs, it enables flexible signal splitting without loss, supporting both digital and analogue formats for crystal-clear reception.

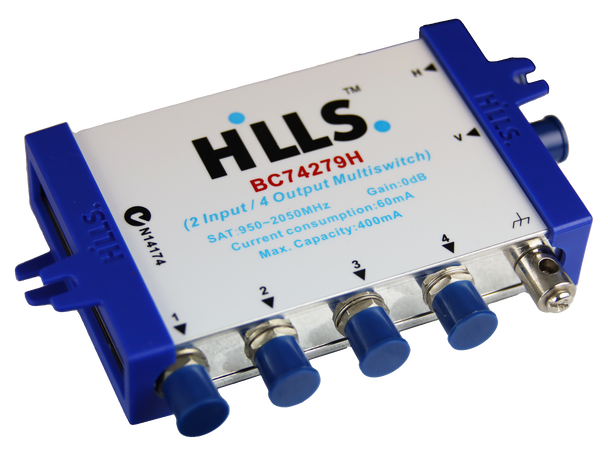

Featuring LNB power pass-through (up to 400mA max), it powers low-noise blocks directly from the STU (set-top unit), while voltage switching (16-19VDC horizontal / 11.5-14VDC vertical) ensures reliable polarisation control. The compact design with F-Type connections on all ports, a dedicated earth point for safety, and outputs positioned on one side simplifies cabling and installation.

Foxtel approved (IPL #F30521) and compliant with EN50083-3 standards, this multiswitch is ideal for apartment blocks, hotels, or homes with multiple satellite points.

Key Features:

• 2 Satellite Inputs to 4 Outputs – Efficient distribution for multi-room Foxtel/pay-TV systems
• LNB Power Pass-Through – Supplies up to 400mA max via STU (60mA consumption)
• Wide Frequency Range – 950-2050 MHz for Ku-band satellite signals
• F-Type Connections – Industry-standard 75Ω ports for easy, secure hookups
• Earth Point Attachment – Built-in grounding for safe, interference-free operation
• One-Side Output Ports – Neat cabling layout reduces clutter
• Digital & Analogue Compatible – Versatile for all satellite TV applications
• Foxtel Approved – IPL #F30521 certification for official pay-TV installs

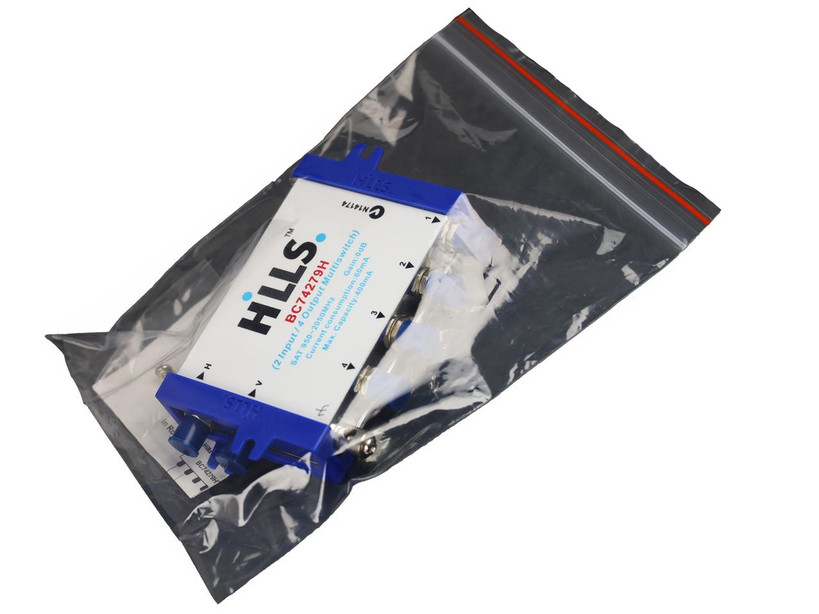

• Poly Bag Packaging – Compact, installer-friendly retail display
• 1-Year Hills Antenna Warranty – Backed by Australian quality

Distribute satellite TV effortlessly with the reliable Hills Antenna BC74279H Multiswitch – the Foxtel-approved choice for professional, hassle-free signal management.
