Hills Antenna FB607198 FTA Tin Ridge Mount

Buy the Hills Antenna FB607198 – Australia's #1 genuine 1.4m tin ridge mount bracket for Colourbond and corrugated iron roofs. Hot-dip galvanised, 100% Australian-made, and trusted by professional antenna installers nationwide for rock-solid TV antenna installations in high-wind and coastal areas.

Perfect for Free-to-Air (FTA), digital TV, and VAST satellite antennas.

Features:

• Genuine Hills Antenna quality – the most specified ridge mount by installers
• 1.4m heavy-duty mast (29 mm diameter)
• Specifically designed for **Colourbond & corrugated tin roofs

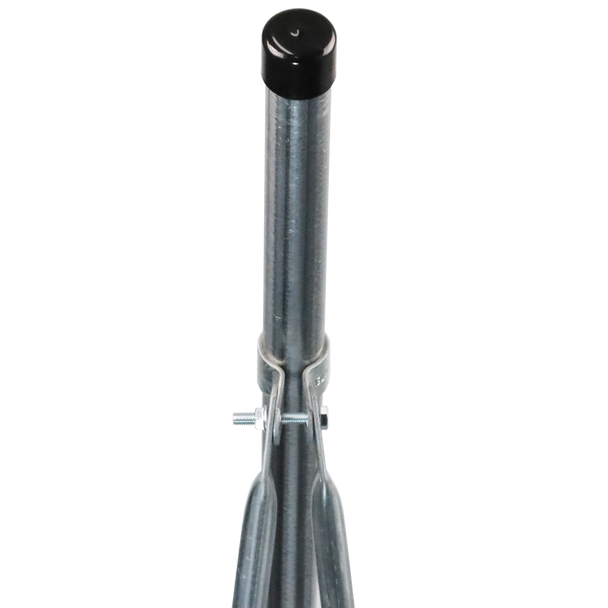

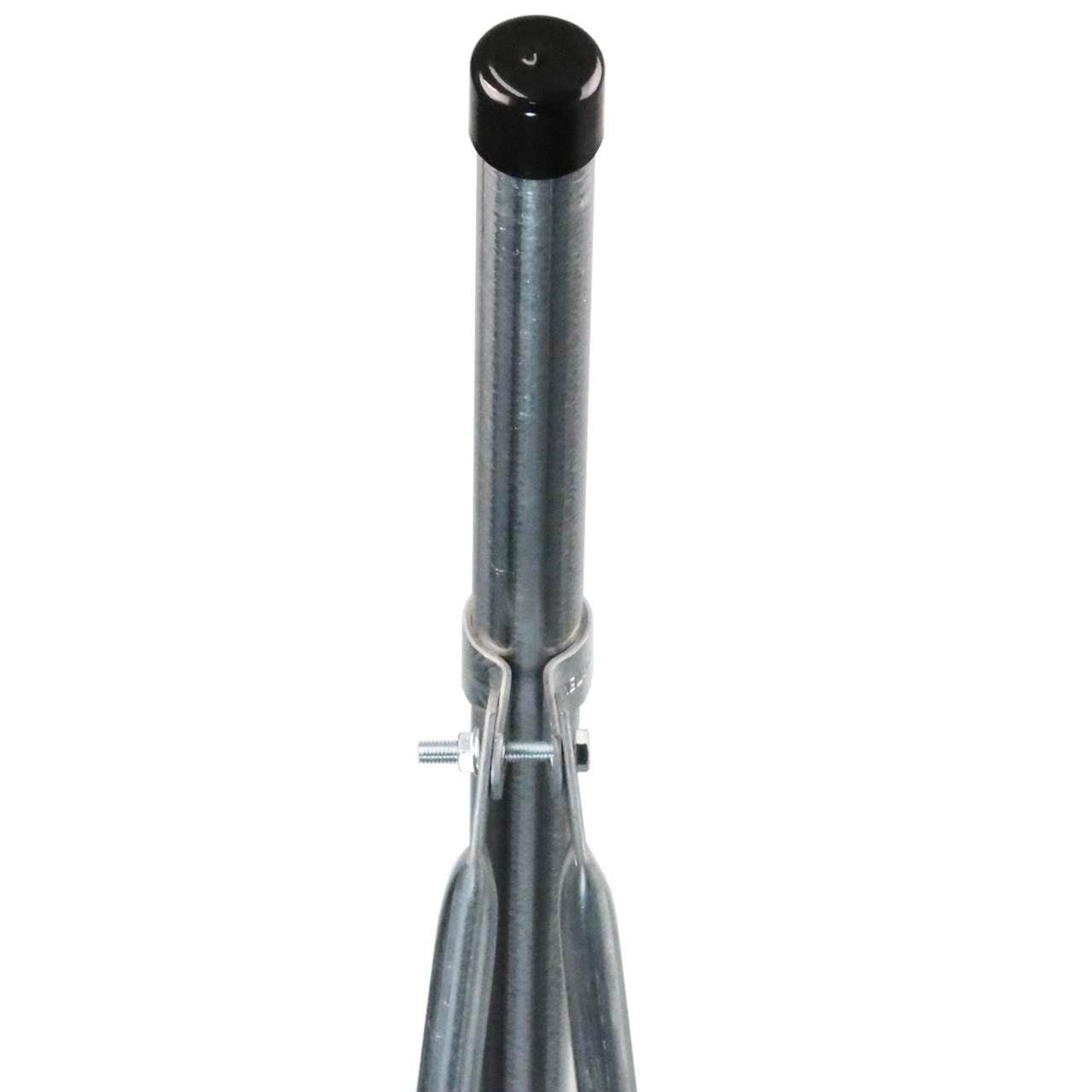

• Full hot-dip galvanised coating for lifelong rust protection (ideal for coastal homes)
• Supports antennas up to 0.3 m² drag area & 5 kg weight
• High-strength stay bars included for maximum wind resistance
• Suits roof pitches up to 30°
• Can be installed straddling the ridge or on the roof slope

What’s Included

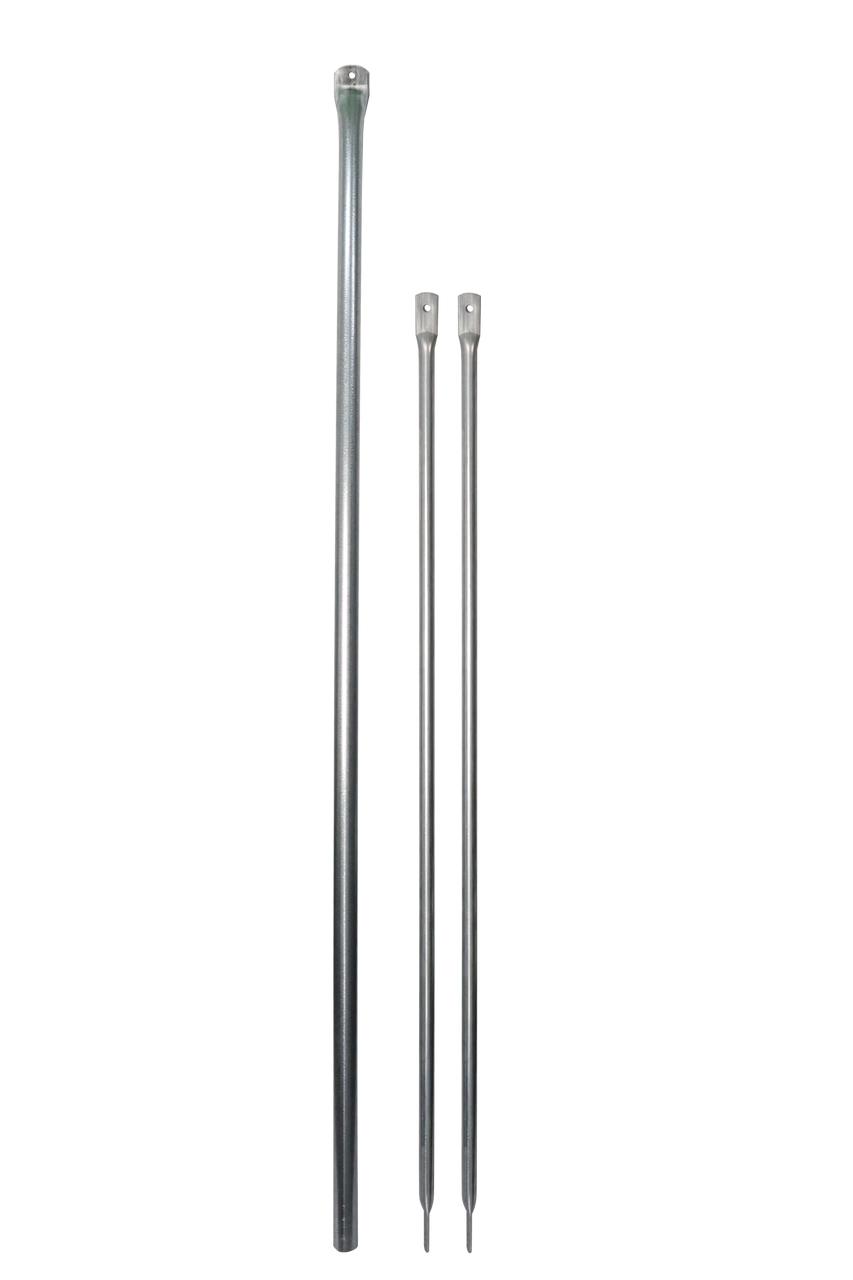

• 1 × 1.4 m galvanised mast (29 mm Ø)
• 2 × galvanised stay bars

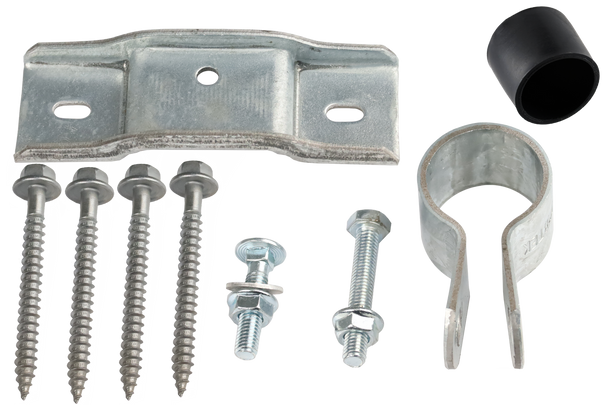

• All bolts, tek screws, and mounting hardware
• Backed by 1-Year genuine Hills Antenna warranty

The Hills Antenna FB607198 free-to-air tin ridge mount is designed to support a television antenna with a drag area up to 0.3m² and a weight of up to 5kg on a corrugated iron roof.

It has a 1.4m mast and the mount is to be fixed to the timber roof purlins through the crests of the corrugated profile.

The mount may straddle the ridge or be fixed to any suitable location on the roof slope. The maximum permissible roof slope is 30º.
