Description
The Hills Antenna BC85275 N Male Connector - Crimp is a precision made part using Nickel Plated Brass. It is suitable for use with our LL400 (BC85203/BC85204) cables.
Specifications
Impedance: 50Ω
Frequency Range: DC - 6 GHz
VSWR: ≤1.30
Centre Contact Resistance: ≤1mΩ
Outer Contact Resistance: ≤1mΩ
Withstanding Voltage: 2500V r.m.s
Working Voltage: 1000V r.m.s
Insulation Resistance: ≥5000MΩ
Temperature Range: -55°C to 155°C
RoHS Complaint: YES
Durability: ≥500 cycles
View AllClose
Frequency Range: DC - 6 GHz
VSWR: ≤1.30
Centre Contact Resistance: ≤1mΩ
Outer Contact Resistance: ≤1mΩ
Withstanding Voltage: 2500V r.m.s
Working Voltage: 1000V r.m.s
Insulation Resistance: ≥5000MΩ
Temperature Range: -55°C to 155°C
RoHS Complaint: YES
Durability: ≥500 cycles
Details
Connector Type: |
N Type Male
|
Cable Type: |
LL400 Coax Cable
|
Connection Type: |
Clamp
|
Resistance: |
50 Ohm
|
Materials: |
Nickel Plated Body
|

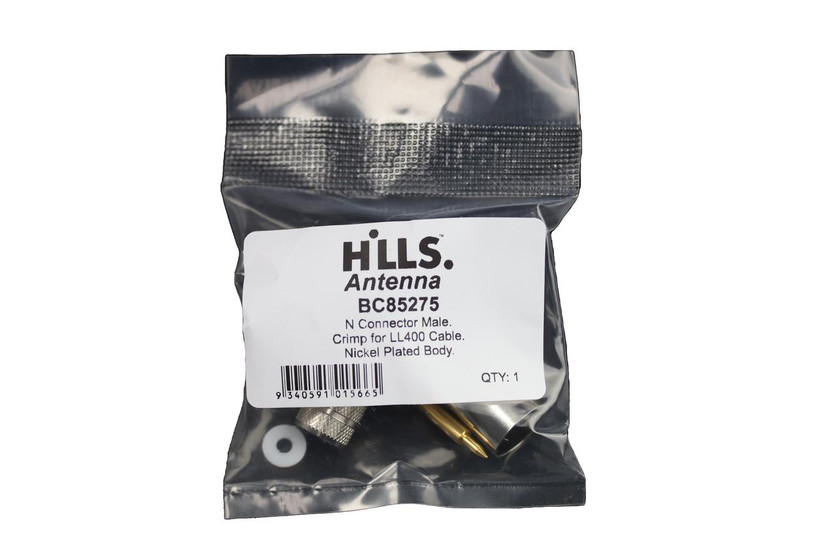

Packaging: |
Poly Bag with Label
|
Warranty: |
1 Year
|
Carton Quantity: |
-
|
