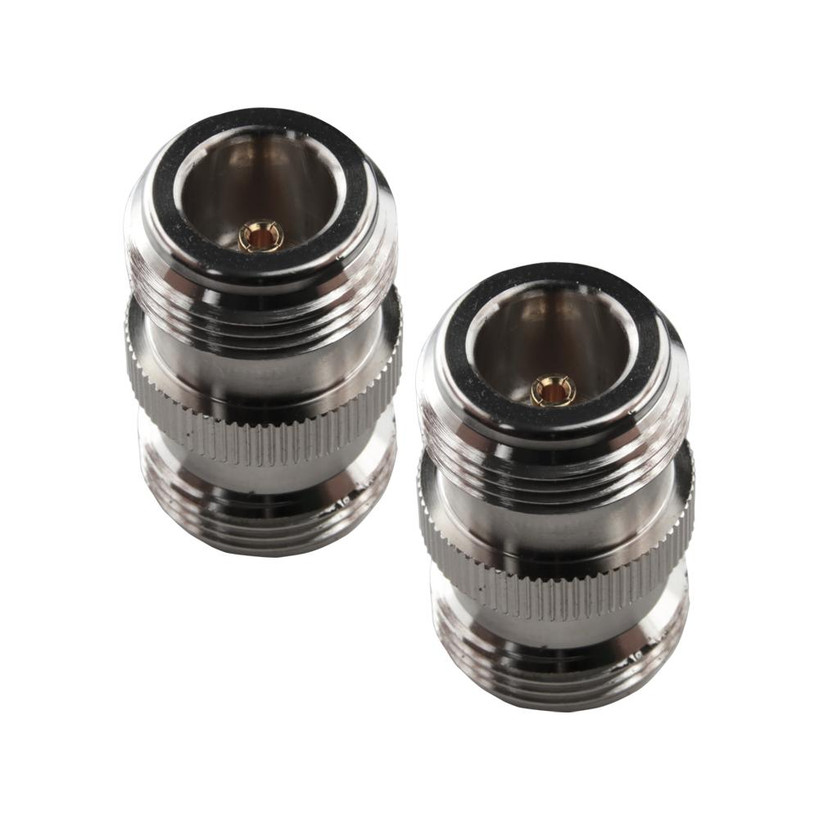

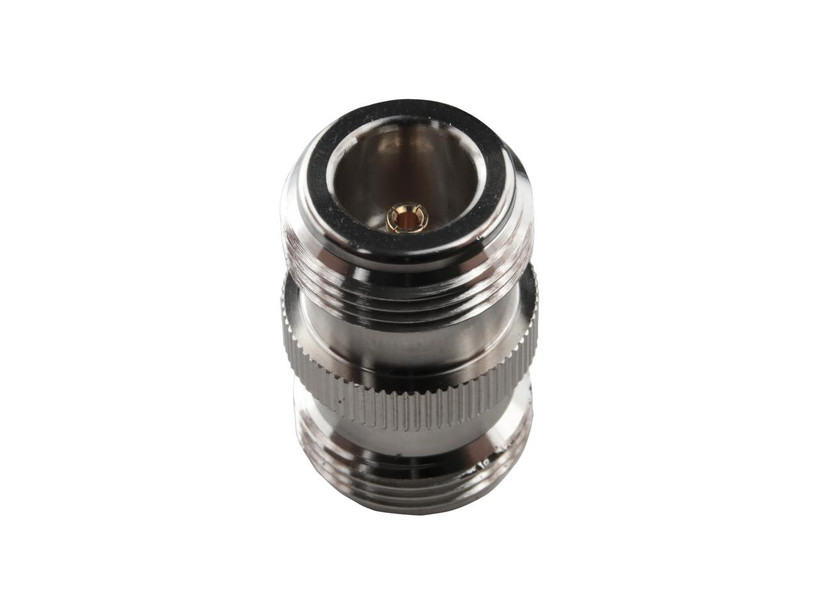

Hills Antenna N Female to N Female Adaptor - Nickel Plated Body

Extend your N-type connections with ease using the Hills Antenna N Female to N Female Adaptor - Nickel Plated Body – a compact 50 Ohm straight adaptor that joins two female N interfaces for seamless, low-loss signal flow up to 6GHz, perfect for TV antennas, radio systems, or wireless networks. Precision-machined from nickel-plated brass for exceptional corrosion resistance and durability, this reliable connector features ultra-low VSWR (≤1.20) and contact resistance (≤1mΩ center and outer), delivering clean, distortion-free performance without fade or noise. Tough for demanding use with a wide temperature range (-55°C to 155°C), high insulation (≥5000MΩ), and 500+ mating cycles, it handles working voltages up to 1000V r.m.s and withstands 2500V r.m.s for safe operation indoors or out. Plug-and-play simple and RoHS compliant, it's the quick solution for extending or joining cables in homes, vehicles, or pro installs. Packaged neatly in a poly bag and backed by a 1-year warranty, this adaptor ensures your signals stay sharp and connected.

Features:

• 50 Ohm Impedance Match: Seamlessly links two N female interfaces for minimal reflection and optimal RF efficiency.
• Broad Frequency Coverage: Supports DC to 6GHz with VSWR ≤1.20, ideal for TV, radio, and wireless without degradation.
• Ultra-Low Contact Resistance: ≤1mΩ for both center and outer contacts, ensuring reduced power loss and noise-free connections.
• High Voltage Safety: Operates up to 1000V r.m.s, withstands 2500V r.m.s, and delivers ≥5000MΩ insulation for secure, stable performance.
• Rugged Temperature Tolerance: Functions from -55°C to 155°C, designed for reliable indoor or outdoor conditions.
• Corrosion-Resistant Nickel Plating: Brass body with nickel finish for weatherproof, eco-friendly (RoHS compliant) longevity.
• Straight-Body Simplicity: Effortless plug-and-play for fast, secure joins without tools or complications.
• Built to Last: ≥500 mating cycles for repeated use in antennas, boosters, or network gear.
