Hills Antenna SMA Male to SMA Male Patch Lead in LL195 - 3M

SKU:
BC85366

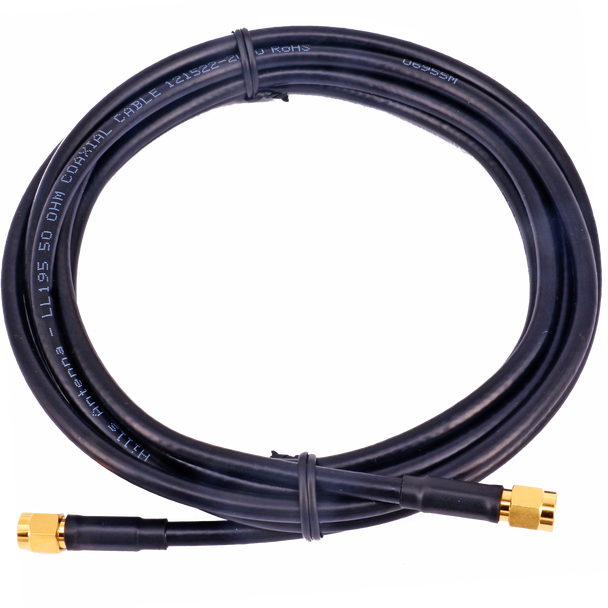

  • Hills Antenna SMA Male to SMA Male LL195 3m patch lead coaxial cable, featuring low-loss design with bare copper conductor and tinned copper shielding
  • Close-up of Hills Antenna SMA Male connectors on 3m LL195 patch lead, showcasing secure RF mating for WiFi and telecom systems

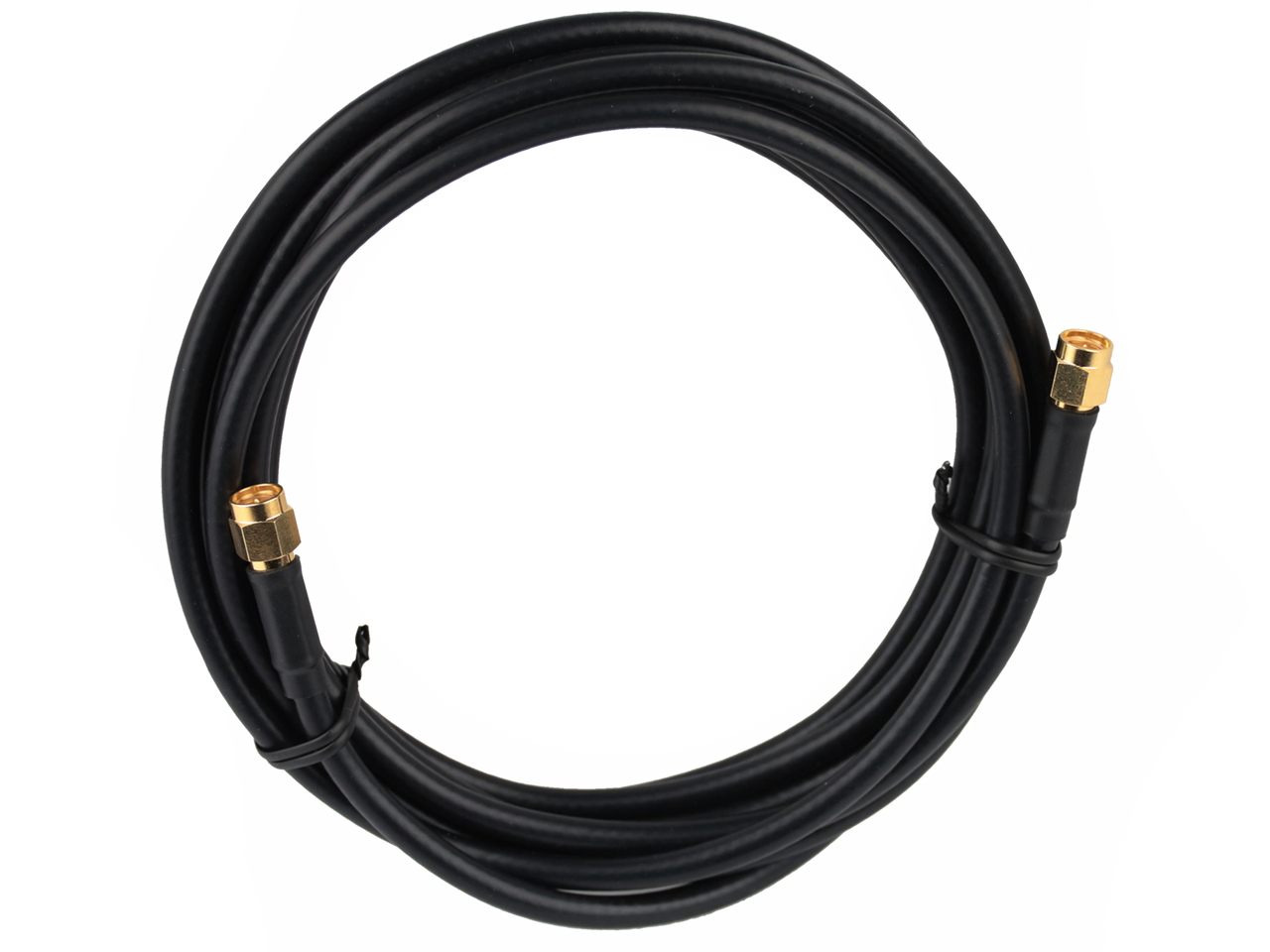

  • Hills Antenna 3m LL195 coaxial patch lead coiled, highlighting durable PVC jacket and double-shielded construction for outdoor use
Log in for pricing

Description

Enhance your RF performance with the Hills Antenna SMA Male to SMA Male in LL195, 3 Metre Patch Lead, a compact, pre-assembled coaxial cable designed for high-performance wireless applications, including WiFi antennas, telecom systems, and IoT devices. This 3-metre (1 pc) patch lead features SMA Male connectors on both ends, ensuring secure, low-loss connections with 50 Ohm impedance for reliable signal transmission in Australian RF setups like routers, cellular boosters, and antenna extensions.

The LL195 cable is optimized for superior signal integrity: a 0.94 ± 0.01 mm bare copper center conductor delivers excellent conductivity, a 2.79 ± 0.10 mm foamed polyethylene (PE) dielectric minimizes capacitance for high signal velocity, and dual shielding with bonded AL/PET/AL foil and 90% coverage 7 x 16 x 0.12 mm tinned copper braiding effectively blocks EMI/RFI interference. Encased in a durable 4.95 ± 0.20 mm PVC jacket, it withstands UV exposure and harsh Australian weather, making it suitable for both indoor and outdoor installations. Supporting frequencies up to 6 GHz with low insertion loss, this patch lead is ideal for professional and residential RF projects without requiring custom assembly.

Key Features:

  • SMA Male to SMA Male Connectors: Secure, high-quality RF mating for telecom and wireless applications.
  • Low-Loss LL195 Design: Bare copper conductor, foamed PE dielectric, and 90% tinned copper braid for excellent signal quality.
  • Advanced Shielding: Bonded foil and braided shield for superior EMI/RFI rejection in noisy environments.
  • Weather-Resistant Build: PVC jacket ensures durability for outdoor antenna and telecom installations.
  • Australian Engineered: RoHS compliant with a 1-year warranty for reliable performance.

The Hills Antenna 3m LL195 SMA Patch Lead provides dependable, high-performance connectivity for your RF infrastructure. Order now for a trusted, Australian-crafted solution to streamline your wireless installations.

View AllClose

Specifications

Length: 3 Metres
Quantity: 1 Pcs
Center Conductor: 0.94+0.01 mm Bare Copper
Dielectric: 2.79+0.10mm Foamed PE
Shielding 01: Bonded AL/PET/AL Foil
Braiding: 7 x 16 x 0.12mm Tinned Copper Coverage 90%
Jacket: 4.95±0.20mm PVC
View AllClose

Details

Lead Type:
50 Ohm RF Coax
Connector Side 1:
SMA Male
Connector Side 2:
SMA Male
Resistance:
50 Ohm
Conductor:
Solid Copper Center Conductor
Materials:
Black UV Stabilised Jacket
Length:
3 Metre
Packaging:
Poly Bag with Label
Warranty:
1 Year
Carton Quantity:
35
