Hills Antenna UHF/PL-259 Male to UHF/SO-239 Female Right Angle Adaptor - Nickel Plated Body

SKU:
BC85304
UPC:
9340591015467

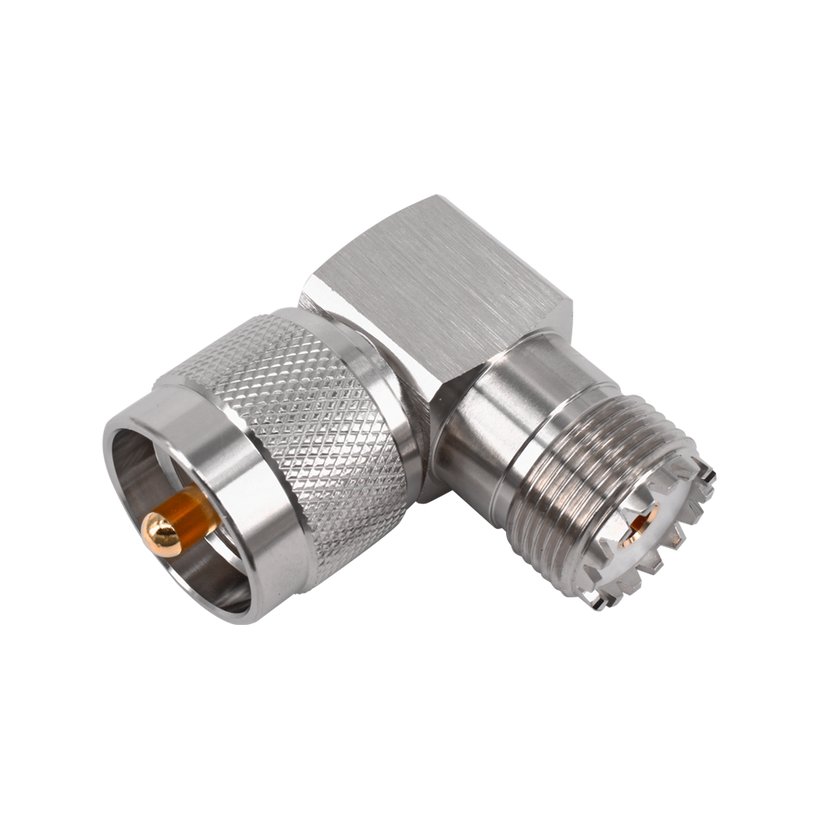

  • Hills Antenna BC85304 right-angle coaxial adapter, ideal for HAM radio and VHF applications in confined spaces
  • Side view of Hills Antenna BC85304 nickel-plated brass adapter, highlighting precision-machined design for 300MHz frequency support
  • Close-up of Hills Antenna BC85304 right-angle adapter, showcasing nickel-plated brass PL-259 male to SO-239 female connectors for tight 90-degree RF links
Log in for pricing

Description

Streamline your RF connections in confined spaces with the Hills Antenna BC85304 UHF/PL-259 Male to UHF/SO-239 Female Right-Angled Adapter, a precision-engineered coaxial component designed to link a UHF/PL-259 Male interface to a UHF/SO-239 Female interface at a sharp 90-degree angle. Perfect for applications requiring compact routing, such as CB radios, amateur HAM setups, antenna installations, and marine VHF systems, this adapter supports an expanded frequency range up to 300 MHz with reliable 50 Ohm impedance for minimal signal loss and optimal performance.

Crafted from precision-machined nickel-plated brass for superior corrosion resistance and durability, the BC85304 features a standard UHF/PL-259 Male connector on one end directly mated to a UHF/SO-239 Female connector, ensuring secure, low-loss mating in tight corners where straight adapters won't fit. Its robust construction withstands Australia's harsh environmental conditions, making it a trusted choice for both domestic and commercial RF projects.

Key Features:

  • Right-Angle Design: Enables 90-degree connections for space-constrained installations like radio housings or antenna mounts.
  • High-Frequency Support: Handles signals up to 300 MHz with 50 Ohm impedance for clear CB, HAM, and VHF transmission.
  • Premium Materials: Nickel-plated brass body for excellent conductivity, corrosion resistance, and long-term reliability.
  • Versatile Compatibility: UHF/PL-259 Male to SO-239 Female; suits coaxial cables, antennas, and wireless LAN devices.
  • Australian Engineered: Built for local RF standards, ideal for amateur radio, marine, and TV antenna extensions.

Whether you're optimizing a mobile radio setup or enhancing antenna connectivity, the Hills Antenna BC85304 Right Angle Adapter delivers professional-grade performance without the bulk. Order now for seamless, high-quality RF adaptation.

View AllClose

Specifications

Impedance: 50Ω
Frequency Range: DC ~ 300MHz
Working Voltage: 750V r.m.s
Withstanding Voltage: 2000V r.m.s
Center Contact Resistance: ≤5mΩ
Outer Contact Resistance: ≤5mΩ
Insulation Resistance: ≥5000MΩ
VSWR: ≤1.30
Durability: ≥500 cycles
Temperature Range: -55°C to 155°C
View AllClose

Details

Adaptor Type:
50 Ohm RF
Adaptor Side 1:
UHF/PL-259 Male
Adaptor Side 2:
UHF/SO-239 Female
Resistance:
50 Ohm
Materials:
Nickel Plated Body
Packaging:
Poly Bag with Label
Warranty:
1 Year
Carton Quantity:
-
