Description
The Hills Antenna DY series antennas combine a F-Type connection for superior screening with wider bandwidth for digital television reception. The DY-10 antenna is a 10 element inner fringe VHF antenna, ideal for semi-rural areas that require extra gain to assist in receiving VHF signal.
Features:
- F-type connectors for better shielding and more reliable connections
- Heavy duty construction for extra strength
- Rectangular galvanised steel boom construction provides element alignment
- Powder coated boom for longer life and improved aesthetics
- UV stable plastics for durability under harsh Australian conditions
- Suitable for reception of horizontal or vertical polarisation
Specifications
4G Filter: False
Colour: Silver
Frequency: VHF
Frequency Range: 177-230MHz
Gain: 8-11dB
Material Type: Aluminium
Number of Channels: 6-12
Output Types: F-Type Female
Warranty: 1
View AllClose
Colour: Silver
Frequency: VHF
Frequency Range: 177-230MHz
Gain: 8-11dB
Material Type: Aluminium
Number of Channels: 6-12
Output Types: F-Type Female
Warranty: 1
Details
Antenna Category: |
VHF
|
Antenna Band: |
Band 3 (Channels 6 - 12)
|
Antenna Type: |
Yagi
|
Antenna Elements: |
10
|
Antenna Filter: |
N/A
|
Antenna Max Gain: |
8 - 11dB
|
Antenna Front to Back Ratio: |
20 - 26dB
|
Antenna Materials: |
Aluminium, UV Stabilised Plastics
|
Colour: |
Silver
|
Antenna Dimensions: |
2060mm x 835mm x 100mm (L x W x H)
|
Included Accessories: |
Rubber Boot (For F Connector), V Block & U Bolt fitted to antenna
|
Unit Packaging: |
Display Box
|
Warranty: |
1 Year
|
Carton Quantity: |
6
|
Pallet Quantity: |
42
|
Product Information Sheet: |
Related Products
Hills Antenna DY-6 VHF Antenna
Hills Antenna
The Hills Antenna DY series antennas combine a F-Type connection for superior screening with wider bandwidth for digital television reception. The DY-6 antenna is a 6 element outer prime VHF antenna,...
FB608007A
Hills Antenna FB601308B CA16 Regional Fringe VHF Antenna
Hills Antenna
The Hills Antenna FB601308B is a CA16 Regional Fringe VHF Antenna.
It's features are:
VHF channels 6-12
16 elements
Fringe signal antenna
FB601308B
Hills Antenna 01DY4A-4G VHF 4 Element Yagi Antenna
Hills Antenna
Hills Antenna DY4A 4 Element VHF Antenna with integrated 4G Low Pass Filter is a high-performance VHF antenna featuring 4 elements and an integrated 4G Low pass filter designed for optimal signal...
01DY4A-4G

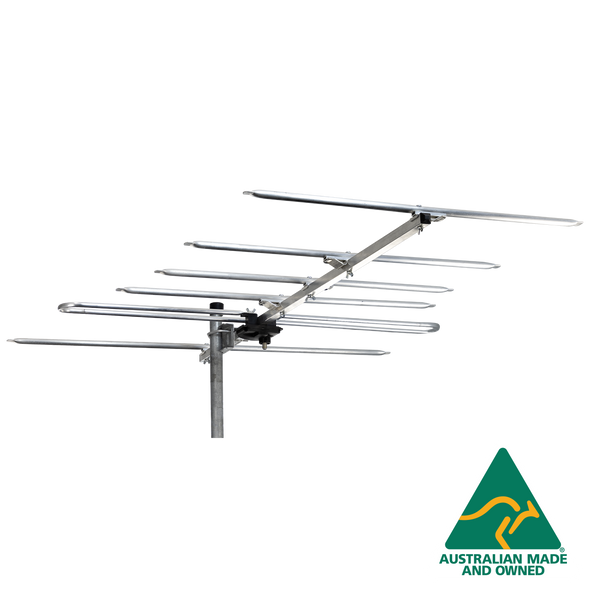

Hills Antenna 01DY6A-4G VHF 6 Element Yagi Antenna
Hills Antenna
Hills Antenna DY6A 6 Element VHF Antenna with integrated 4G Low Pass Filter is a high-performance VHF antenna featuring 6 elements and an integrated 4G Low pass filter designed for optimal signal...
01DY6A-4G

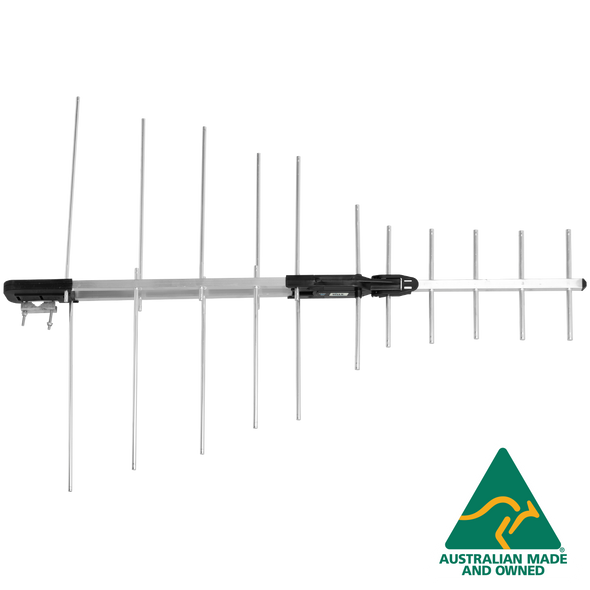

Hills Antenna 01TBUV5-4G Tru-Band UHF/VHF 5 Element Antenna
