Ikusi by Fagor FLOW-ENC+ HDMI 4 Inputs Encoder Module

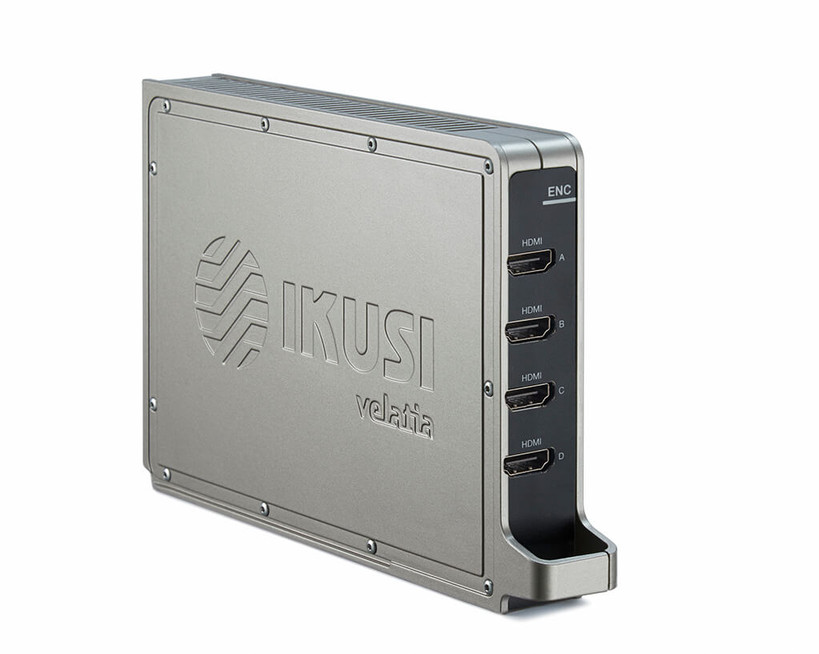

Ikusi by Fagor FLOW-ENC+ Quad HDMI Encoder Module (Ref. 4321) – Professional 4x HDMI to IPTV H.264 Encoder

The FLOW-ENC+ is a high-performance Quad HDMI encoder module designed for the FLOW headend platform. It compresses four independent HDMI video and audio sources into professional-quality IPTV streams using H.264 (with H.265 support coming soon), making it ideal for converting local HDMI sources such as set-top boxes, cameras, media players, PCs, or Blu-ray players into distributable IPTV channels.

Perfect for hotels, conference centers, corporate AV, education, digital signage, and broadcasting headends that require reliable, low-latency HDMI to IP encoding.

Key Features:

• 4 independent HDMI inputs — Accepts four simultaneous HDMI 1.4 digital video and audio inputs, each processed independently for maximum flexibility in mixed-source environments.
• H.264 compression with H.265 coming soon — Encodes video using H.264/MPEG4 AVC (MP/HP, Levels 3.0–4.2) for efficient, high-quality compression. H.265 support is in development for even greater bandwidth efficiency.
• Full SD & HD resolution support — Handles a comprehensive range of input resolutions including 480i, 576i, 480p, 576p, 720p50/60, 1080i50/60, and 1080p50/60 in both 4:3 and 16:9 aspect ratios.
• Flexible video bitrate control — Variable bitrate (VBR) encoding in H.264 from 2,000 to 19,000 kbps, allowing operators to balance video quality against available bandwidth.
• Multiple audio codec support — Encodes digital HDMI audio using MPEG1 Layer II, MPEG2 AAC LE/HE, and MPEG4 AAC LE/HE at bitrates from 96 to 384 kbps for full compatibility with IPTV middleware and set-top boxes.
• 4 SPTS outputs over Gigabit Ethernet — Delivers four independent Single Program Transport Streams via 1000Base-T interface using UDP protocol, ready for direct IPTV distribution.
• Low power, compact design — Consumes only 12 W (with four 1080i60 H.264 inputs) at 24 VDC, housed in a slim 125 × 27 × 210 mm form factor weighing just 525 g.
• Native FLOW chassis integration — Slots directly into the FLOW headend backpanel, sharing power and infrastructure with other FLOW modules for a clean, scalable headend build.

Why Choose the FLOW-ENC+ HDMI Encoder Module?

The FLOW-ENC+ delivers outstanding encoding performance in a compact, hot-swappable module. It enables easy integration of any HDMI source into your IPTV network, offering excellent picture quality, flexible configuration, and full compatibility with the FLOW headend ecosystem. Whether you need to distribute live HDMI sources across a building or add local content to your existing IPTV platform, this module provides a professional, reliable solution.
