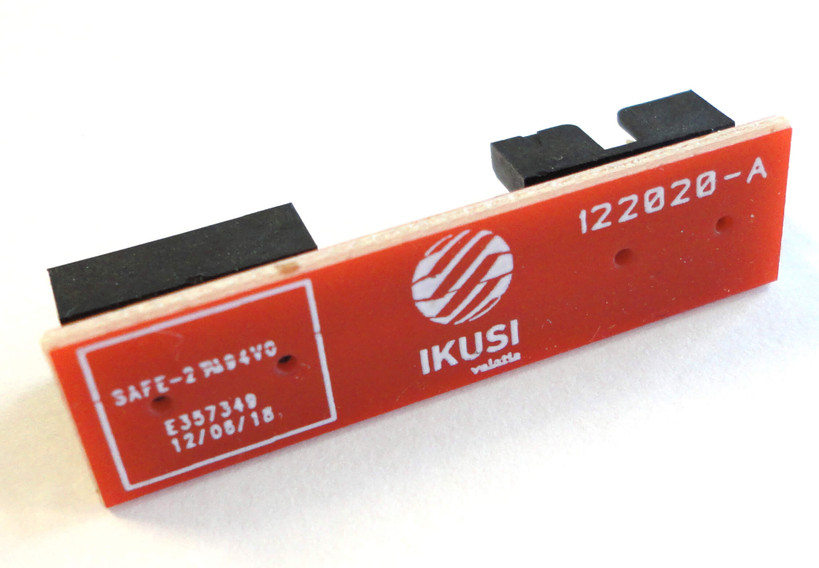

Ikusi by Fagor UAH-001 Electrical Bridge for BACK-500

Ikusi by Fagor UAH-001 Electrical Bridge for BACK-500 REF: 3870

The UAH-001 is a dedicated interconnection bridge that allows you to electrically link two BACK-500 base plates. This essential accessory enables the creation of larger, expandable HTI headend systems by combining the power supply distribution and communication bus between multiple base plates without any loss of functionality.

It provides a clean and professional solution for installations requiring more than 5 modules (e.g., multiple HTI-424 transmodulators, power supplies, or amplifiers).

Key Features:

• Seamless Interconnection: Perfect electrical bridge between two BACK-500 base plates.
• Power & Data Distribution: Maintains full 24V power supply distribution and IKUNET communication across all connected modules.
• Easy Expansion: Allows scaling up your HTI headend from 5 to 10 slots (or more with additional bridges).
• Plug & Play Design: Simple installation between base plates.
• Reliable Performance: Designed specifically for 24/7 professional headend environments.
• Compact & Robust: Maintains the clean, modular design of the HTI series.

Ideal for building medium to large headend systems in hotels, hospitals, residential complexes, and commercial buildings where more transmodulators or modules are required.

Technical Specifications:

• Model: UAH-001
• Reference: 3870
• Function: Electrical bridge for two BACK-500 base plates
• Application: HTI Series Headend Expansion

Recommended Use With:

• BACK-500 5-Slot Base Plate
• HTI-424 Quad Transmodulator
• PSU-150 Power Supply
• HTA-125 Broadband Amplifier
• SR-HTI 19" Rack Mount Kit

The Ikusi by Fagor UAH-001 is the perfect accessory to expand and unify your HTI professional headend system. Contact us for complete headend kits and configuration support.
