Kingray MDA20UT 19dB UHF Masthead Distribution Amplifier, Fully Shielded, Low Noise

The MDA20UT is single input UHF TV masthead distribution amplifier designed to amplify the frequency range of 470-860 MHz. Whether the unit is used as a masthead or distribution amplifier, the low noise figure, capacity for multiple channels with low distortion and a high output has proven to be effective in all installations, especially digital problem areas.

The MDA15 range is based on a concept of convergent technology. The characteristics of the IC selected provides a very low noise figure and output figure that equals our DW42, 118dB @ -60 dB IMR, hence the name Masthead Distribution Amplifier (MDA).

The masthead is powered remotely via a Kingray PSK06 series power supply (sold separately).

Features:

• Frequency Range 470-860 MHz
• 19dB Maximum Gain
• Low Noise Figure <1.6dB
• High Output Figure of 118dB IMR3 (DIN45004B)

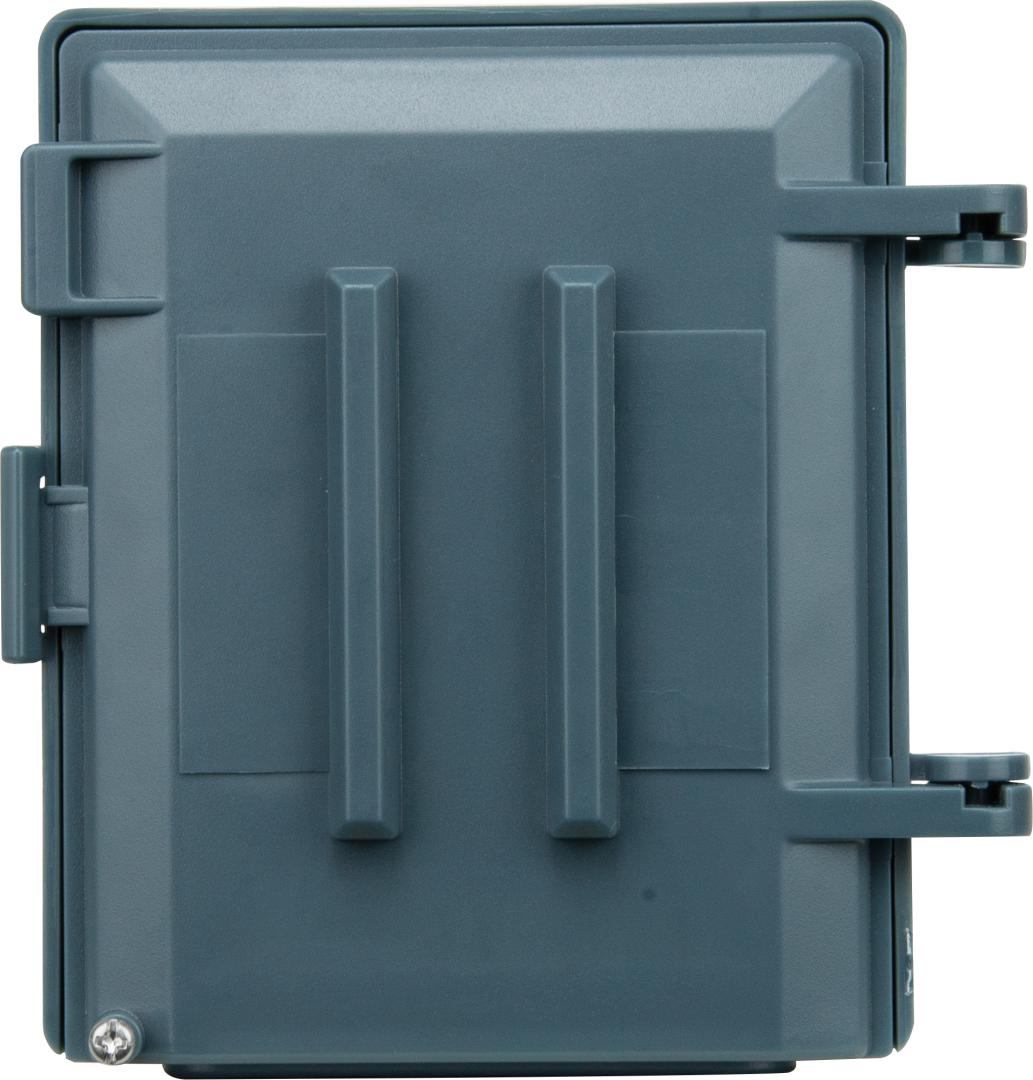

• Fully Shielded Die-cast Housing
• Weatherproof Housing
• Connectors: F-Type
• Power Consumption: 100mA
• Suitable Power Supply: PSK06 Series

Inclusions:

• MDA20H Masthead Amplifier
• Cable Tie
• Instruction Manual
