Kingray MDA20HT 19dB Wideband Masthead Distribution Amplifier, Fully Shielded, Combined Input, Low noise

SKU:
04CMDA20HT
  • Kingray MDA20HT 19dB Wideband Masthead Distribution Amplifier, Fully Shielded, Combined Input, Low noise
  • Kingray MDA20HT 19dB Wideband Masthead Distribution Amplifier, Fully Shielded, Combined Input, Low noise
  • Kingray MDA20HT 19dB Wideband Masthead Distribution Amplifier, Fully Shielded, Combined Input, Low noise
  • Kingray MDA20HT 19dB Wideband Masthead Distribution Amplifier, Fully Shielded, Combined Input, Low noise
Log in for pricing

Description

The MDA20HT is a VHF/UHF TV masthead distribution amplifier which has a single combined input for VHF/UHF antennas to amplify the frequency range of 174-860 MHz. Whether the unit is used as a masthead or distribution amplifier, the low noise figure, capacity for multiple channels with low distortion and a high output has proven to be effective in all installations, especially digital problem areas.

The MDA15 range is based on a concept of convergent technology. The characteristics of the IC selected provides a very low noise figure and output figure that equals our DW42, 118dB @ -60 dB IMR, hence the name Masthead Distribution Amplifier (MDA).

The masthead is powered remotely via a Kingray PSK06 series power supply (sold separately).

Features:

  • Frequency Range 174-860 MHz
  • 19dB Maximum Gain
  • Low Noise Figure <1.6dB
  • High Output Figure of 118dB IMR3 (DIN45004B)

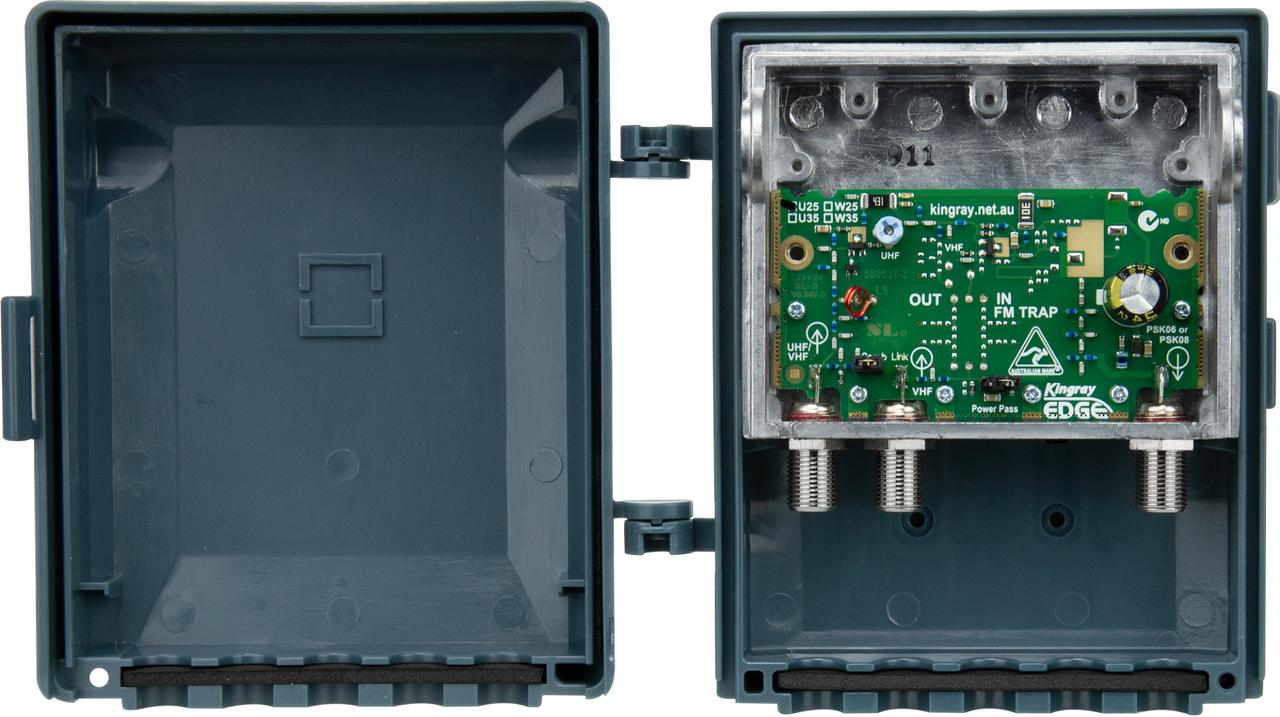

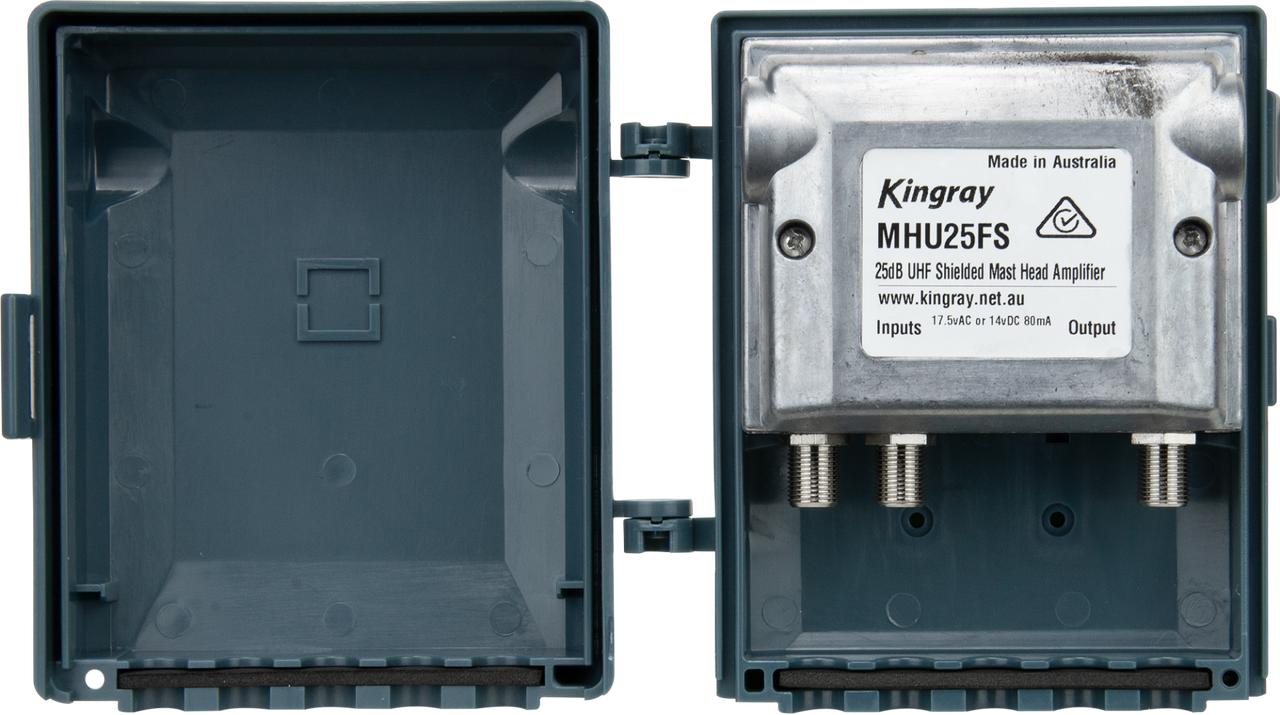

  • Fully Shielded Die-cast Housing

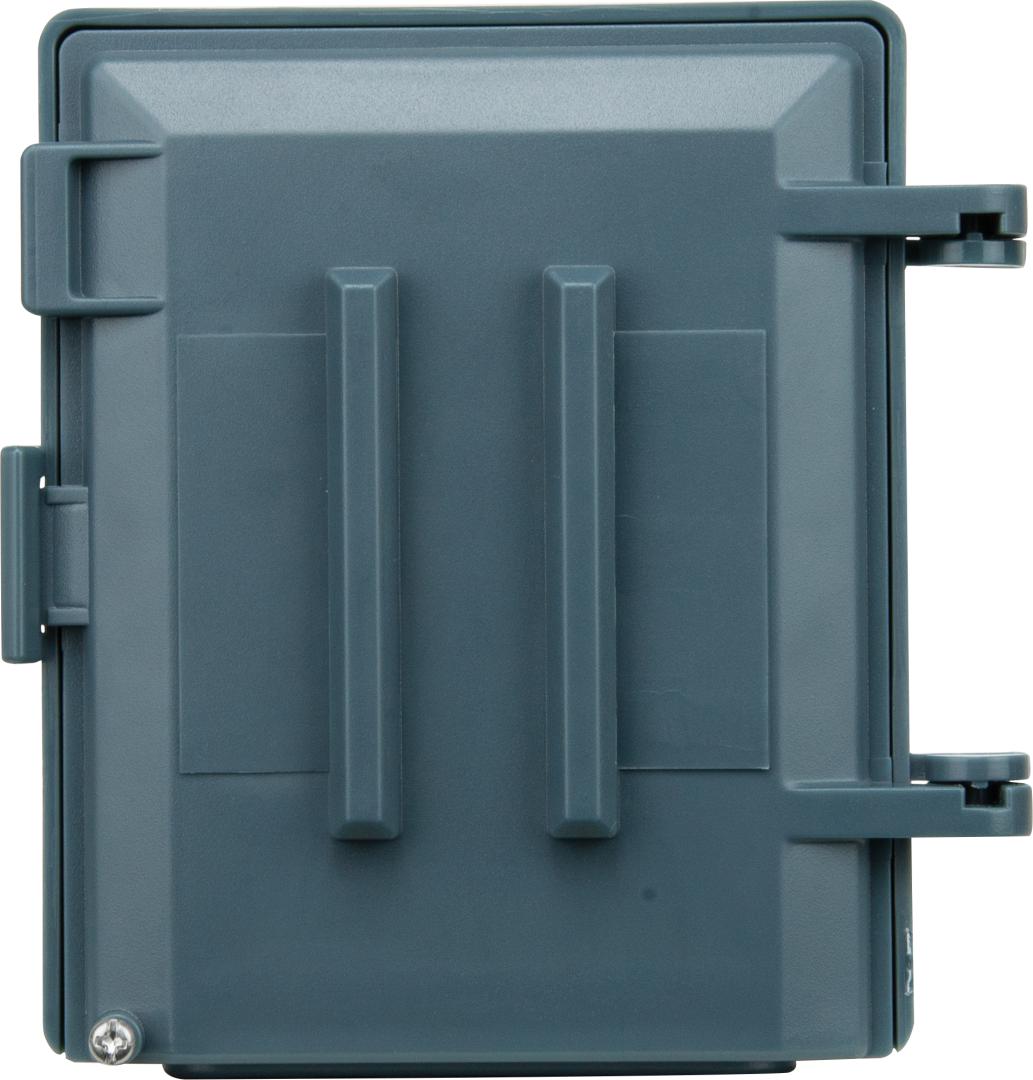

  • Weatherproof Housing
  • Connectors: F-Type
  • Power Consumption: 100mA
  • Suitable Power Supply: PSK06 Series

Inclusions:

  • MDA20HT Masthead Amplifier
  • Cable Tie
  • Instruction manual
