Kingray DA44 TV Signal Distribution Amplifier

SKU:
04CDA44
UPC:
9319493316248

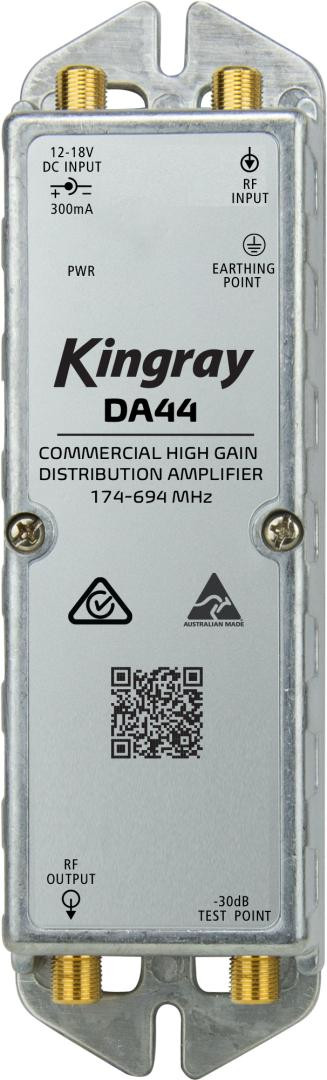

  • Kingray DA44 distribution amplifier front view
  • Kingray DA44 distribution amplifier back view
Log in for pricing

Description

The Kingray DA44 Distribution Amplifier is designed for today’s digital television signals, offering superior performance through hybrid bipolar and GaAs technology. This allows for higher output capacity with a lower noise figure, ensuring crystal-clear signal distribution.

The amplifier features mid-stage gain controls, adjustable slope control, and multiple powering options (local or remote). Built in a fully shielded die-cast housing, it has a single RF input, single RF output, and a test port for easy system setup. Power supply is sold separately.

Features:

  • Frequency Range 174~694 MHz (Channels 6 to 51)
  • 44dB Maximum Gain
  • 10dB Mid-Stage Gain Control
  • Single RF Input
  • Local or Remote Powering Options
  • F-Type Connector for Power Input
  • Adjustable Slope Control of 0dB to 10dB
  • -30dB Test Point
  • Ability to send power out via the RF Input
  • High Output Figure: 118dB IMR3 (DIN45004B)
  • Connectors: F-Type
  • Power Consumption: 300mA
  • Operating Voltage: 18V DC
  • Operating Temperature: -10ºC to 50ºC
  • Suitable Power Supply: PSK18M or PSK182F

Included Accessories:

  • Instruction Manual
  • Mounting Screws
