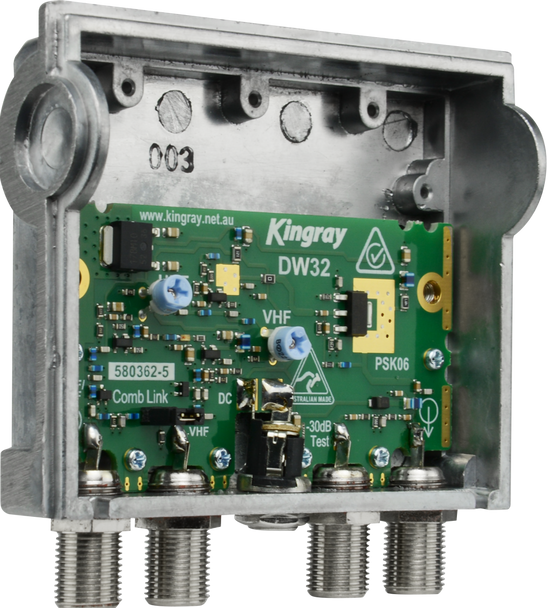

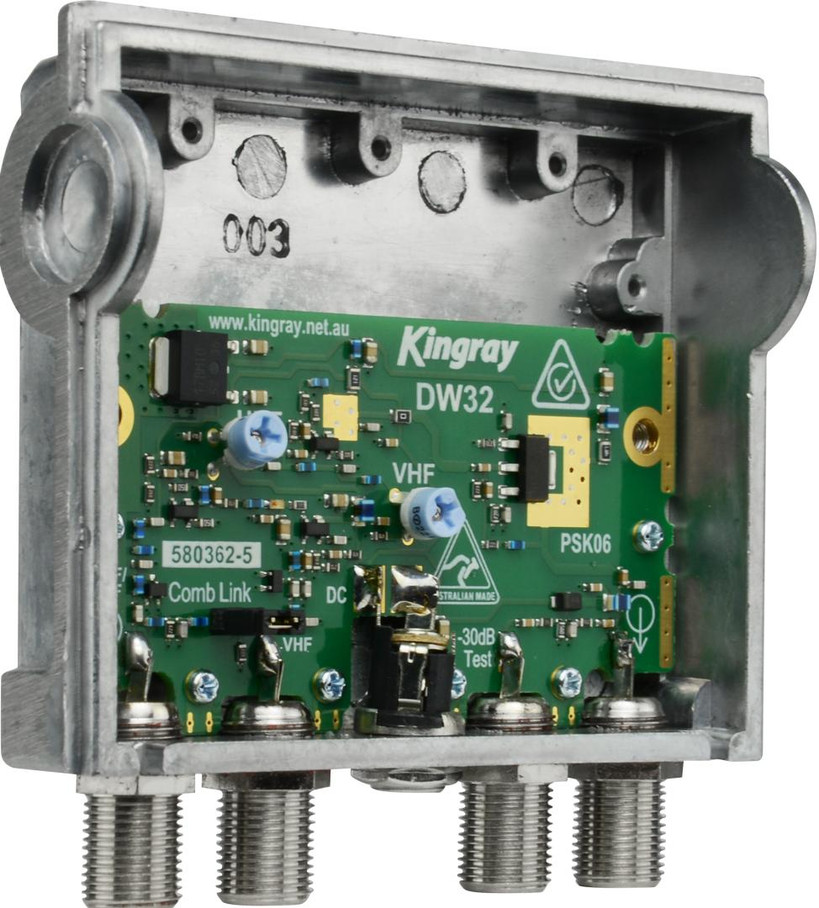

Kingray DW32 Terrestrial Distribution Amplifier

Supercharge your free-to-air (FTA) TV reception with the Kingray DW32 Terrestrial Distribution Amplifier, an Australian-made powerhouse that boosts VHF (44-230 MHz) and UHF (520-820 MHz) signals up to 32dB for stunning, distortion-free digital channels across your home—like a signal whisperer that turns fringe-area fuzz into full-HD clarity for families, apartments, or rural setups. With separate VHF/UHF inputs (or combined via UHF port), individual 10dB gain controls, and built-in slope adjustment, this hybrid bipolar/GaAs amp fine-tunes for perfect balance without overloads, plus a -30dB test point for easy checks. Fully shielded in a die-cast housing to block interference, it powers locally or remotely (12-18V DC, 150mA draw) and includes the PSK18S supply for out-of-box convenience—Foxtel-approved (F10055) for Australian compliance. Whether masthead-mounted or inline, its 112dB IMR3 output (DIN45004B) handles multi-TV homes effortlessly. Backed by a 3-year warranty, Kingray's DA/DW series delivers pro-grade performance that's simple to install with mounting screws and manual—Australian ingenuity that makes FTA TV feel broadcast-fresh and frustration-free!

Key Features:

• Dual-Band VHF/UHF Boost: Covers 44-230 MHz VHF and 520-820 MHz UHF—like a tailored lift for FTA digital TV—with 32dB max gain to conquer weak spots or long cables.
• Customizable Controls: Individual 10dB gain for VHF/UHF, built-in slope, and -30dB test point—like easy dials for balanced, overload-free distribution.
• High-Output Muscle: 112dB IMR3 (DIN45004B)—powers multiple channels with low distortion, ideal for homes or apartments without signal drop.
• Shielded & Versatile: Fully die-cast housing blocks noise; separate/combined inputs, local/remote powering (12-18V DC, 150mA)—includes PSK18S supply.
• F-Type Connector Simplicity: Secure, standard F-Type ports—Foxtel F10055 approved for Australian MATV or FTA systems.
• Australian-Made Durability: Crafted here with mounting screws and manual—3-year warranty for reliable, weather-tough performance.
