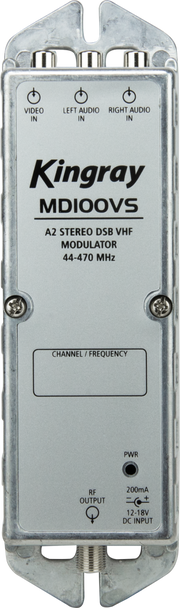

Kingray MD100VS Stereo Analogue Modulator 44-470MHz

SKU:
04DMD100VS
  • Kingray MD100VS Stereo Analogue Modulator 44-470MHz
  • Kingray MD100VS Stereo Analogue Modulator 44-470MHz
Log in for pricing

Description

Modulators are designed to convert a baseband or A.V. (Audio Video) signal into an RF signal. This allows the outputs from set top boxes, videos, DVD’s, AM and FM tuners, CD players or cameras to be integrated into any television system. By using Kingray stereo modulators (able to adjust the RF output frequencies via the dip switches) a flexible solution is available to suit each individual system. NOTE: There are a number of cheap modulators on the market that have left and right channel inputs, however they are not a true stereo unit. When selecting a stereo modulator, ensure you are getting true stereo and not mono. The MD100VS allows for an RCA stereo or mono audio/video baseband input with a frequency adjustable RF output. The unit can be remotely or rack (KR001) powered to the output socket, or a separate power supply can be purchased.

Features:

  • RCA Stereo Input to RF Output 44-470 MHz
  • Stereo Sound - Mono Option
  • 40dB Gain
  • Output Level 63-103dB
  • Agile in 250KHz Steps Adjustable Output Level 63-103dB
  • Phase Lock Looped for Stability
  • Harmonic Filtering
  • Switchable Test Pattern
  • Fully Shielded Die Cast Housing
  • Rack Mounting Option Available - KR001
  • Powered Locally or Remotely
  • Current Consumption: 100mA
  • Operating Voltage: 12-18V DC
  • Suitable Power Supply: PSK12S or PSK18S
  • Foxtel Approved IPL # F10291

Inclusions:

  • MD100VS Analogue Modulator
  • Instruction Manual
  • Mounting Screws

Foxtel Approved
