Description
Datatek RJ45 8P8C CAT6 Solid Modular Plug
Features:
- Modular RJ45 Plug with 50μ gold plated pins
- Single piece connector design
- Made from high grade polycarbonate clear plastic
- Suitable for solid CAT6 cable

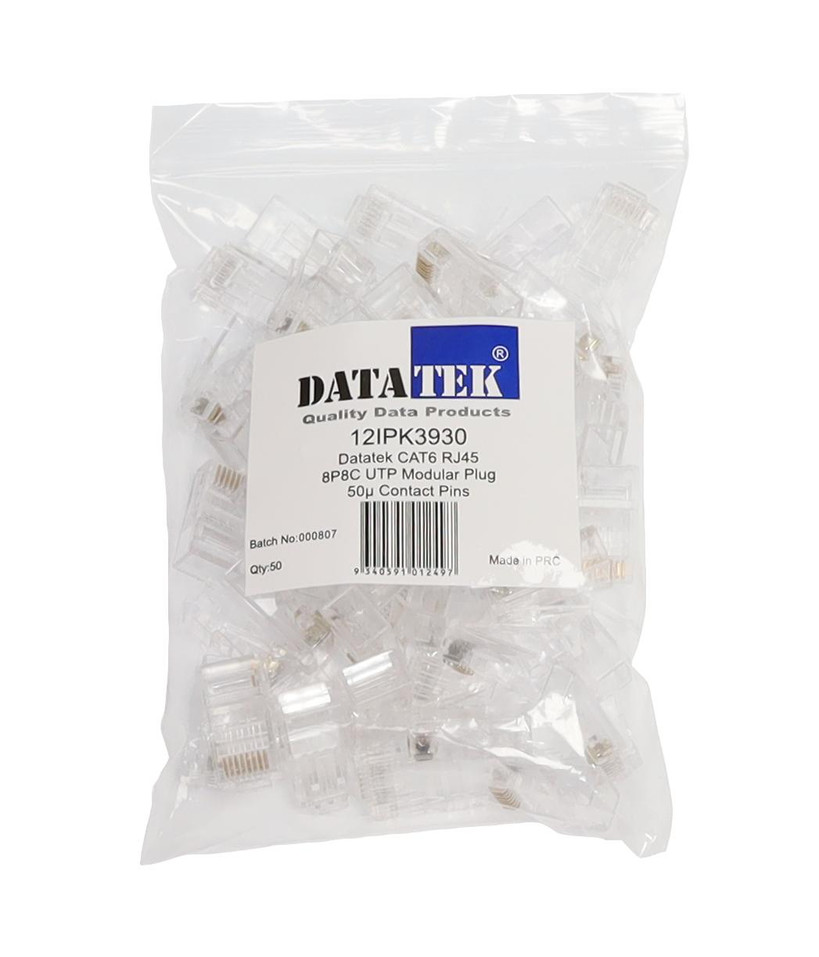

- Sold individually, bag size 50.
Specifications
Modular RJ45 Plug with 50μ gold plated pins for solid CAT6 Cable
Conductor O.D. range: 1.09mm to 1.15mm
Low contact resistance
Maximum Cable Diameter: 6mm
Minimum Cable Diameter: 5.3mm
Safety Voltage Rating: 1000Vac
Contact Material: Gold Plating over Nickel
Body: Polycarbonate (Stainless Steel for shielded model)
Plug insertion life: 750 times
Operating Temperture: -10°C to +60°C
View AllClose
Conductor O.D. range: 1.09mm to 1.15mm
Low contact resistance
Maximum Cable Diameter: 6mm
Minimum Cable Diameter: 5.3mm
Safety Voltage Rating: 1000Vac
Contact Material: Gold Plating over Nickel
Body: Polycarbonate (Stainless Steel for shielded model)
Plug insertion life: 750 times
Operating Temperture: -10°C to +60°C
Details
Product Information Sheet: |
|
Connector Type: |
RJ45
|
Cable Type: |
CAT6 Data Cable
|
Connector Termination: |
Crimp
|
Resistance: |
75 Ohm
|
Packaging: |
Single Piece
|
Warranty: |
1 Year
|
Carton Quantity: |
10000
|
Pallet Quantity: |
-
|
