Hills Antenna DY Series 10-Element Inner Fringe Yagi VHF Antenna

SKU:
FB608008A

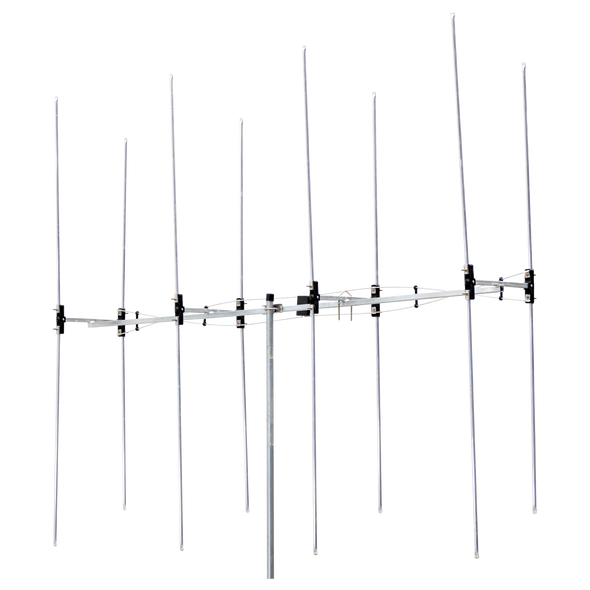

  • Hills Antenna DY-10 10-element Yagi VHF antenna in silver aluminum for inner fringe reception
  • Silver powder-coated Hills Antenna DY-10 antenna for channels 6-12 digital TV
  • DY-10 VHF Yagi showing rectangular galvanized boom and F-Type connector
  • Hills Antenna DY-10 with UV-stabilized insulators and 8-11dB gain elements for semi-rural use
  • Disassembled Hills Antenna DY-10 VHF Yagi Antenna
  • Hills Antenna DY-10 with UV-stabilized insulators and 8-11dB gain elements for semi-rural use.
  • Packaged Hills Antenna DY-10 VHF Yagi in display box includes V-block and U-bolt accessories.
Log in for pricing

Description

The Hills Antenna DY-10 VHF Antenna is a high-gain, 10-element Yagi design from the DY series, optimized for inner fringe reception in semi-rural areas where VHF signals need an extra boost for clear digital TV performance. Engineered with F-Type connectors for superior shielding and reliable connections, this silver aluminum antenna covers VHF Band 3 (channels 6-12) with 8-11dB max gain and an impressive 20-26dB front-to-back ratio to reject interference effectively. Featuring a rectangular galvanized steel boom for precise element alignment, powder-coated finish for longevity, and UV-stabilized plastic insulators for harsh Australian conditions, it supports both horizontal and vertical polarization. Measuring 2060mm x 835mm x 100mm (L x W x H), it includes a rubber boot for the F-connector, pre-fitted V-block & U-bolt for easy mounting, and a 1-year warranty—packaged in a display box for professional installations.

Features:

  • 10-Element Yagi Configuration: Delivers 8-11dB gain for enhanced inner fringe VHF reception in Band 3 (channels 6-12), ideal for semi-rural digital TV setups.
  • F-Type Connectors: Provide better shielding and consistent connections, ensuring minimal signal loss and reliable performance.
  • Heavy-Duty Construction: Robust build with rectangular galvanized steel boom for superior element alignment and extra strength against wind and weather.
  • Powder-Coated Boom: Enhances longevity and aesthetics with a durable finish that resists corrosion in Australian outdoor environments.
  • UV-Stable Plastic Insulators: Long-lasting materials withstand harsh UV exposure, maintaining structural integrity over time.
  • Versatile Polarization Support: Compatible with horizontal or vertical signals, adapting to various reception orientations.
  • Weatherproof Accessories: Includes rubber boot for F-connector protection and fitted V-block & U-bolt for straightforward rooftop or mast installation.
  • Wider Bandwidth Design: Engineered for digital television with no filter needed, focusing on pure VHF signal capture.

View AllClose

Specifications

4G Filter: False
Colour: Silver
Frequency: VHF
Frequency Range: 177-230MHz
Gain: 8-11dB
Material Type: Aluminium
Number of Channels: 6-12
Output Types: F-Type Female
Warranty: 1
View AllClose

Details

Antenna Category:
VHF
Antenna Band:
Band 3 (Channels 6 - 12)
Antenna Type:
Yagi
Antenna Elements:
10
Antenna Filter:
N/A
Antenna Max Gain:
8 - 11dB
Antenna Front to Back Ratio:
20 - 26dB
Antenna Materials:
Aluminium, UV Stabilised Plastics
Colour:
Silver
Antenna Dimensions:
2060mm x 835mm x 100mm (L x W x H)
Included Accessories:
Rubber Boot (For F Connector), V Block & U Bolt fitted to antenna
Unit Packaging:
Display Box
Warranty:
1 Year
Carton Quantity:
6
Pallet Quantity:
42
Product Information Sheet - V1:
Product Information Sheet - V2:
