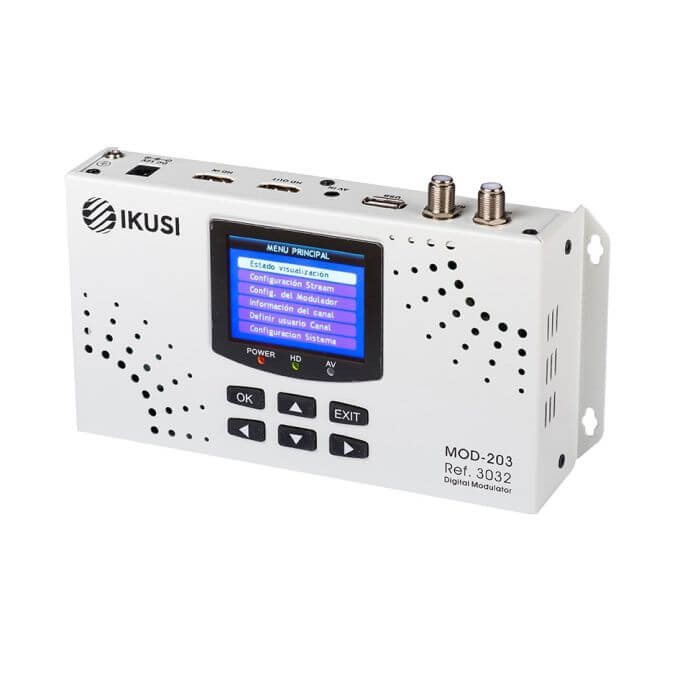

Ikusi by Fagor MOD-203 HDMI to DVB-T COFDM Digital Modulator

Ikusi by Fagor MOD-203 DVB-T COFDM Digital Modulator (REF. 3032)

Transform any HDMI or A/V video source into a fully distributable COFDM digital RF channel with the MOD-203 Digital Modulator. Engineered for professional-grade signal distribution in hotels, bars, shopping centres, stadiums, and multi-screen commercial environments, the MOD-203 delivers reliable, high-definition content across existing RF coaxial networks — no new cabling required.

Whether you're distributing live TV, CCTV cameras, DVD players, set-top boxes, or PC output, the MOD-203 converts your signal seamlessly into a DVB-T compatible channel that any connected television can receive.

Key Features:

• Dual video input: HDMI and composite A/V (RCA/Jack), with included RCA/Jack adapter cable
• HDMI loop output for simultaneous local display passthrough
• RF loop for mixing modulated output with existing broadcast channels
• MPEG-4 AVC/H.264 encoding supporting resolutions up to Full HD 1080p at 60fps
• DVB-T COFDM modulation across a wide 50–950MHz RF frequency range
• Adjustable RF output level: 76–113 dBµV for flexible signal strength management
• Configurable bandwidth: 6, 7, or 8 MHz to suit regional broadcast standards
• Constellation options: QPSK, 16-QAM, and 64-QAM for transmission quality control
• Multiple saved configurations stored in memory for instant recall
• USB firmware upgrade support to keep the unit current
• Compact form factor: 200 × 115 × 46 mm — rack-friendly and space-efficient
• External 12V DC power supply included
• MER > 32dB for excellent signal quality and stability
• Operating temperature: 0–45°C, suitable for most commercial environments

Why Choose the Ikusi by Fagor MOD-203?

The MOD-203 stands out for its flexibility and ease of use in demanding commercial installations. Its dual input support — HDMI and composite A/V (RCA/Jack) — means it works with virtually any video source you already own. The built-in HDMI loop output lets you pass the source signal through to a local display simultaneously, while the RF loop allows seamless integration with your existing antenna or channel lineup without interference.

Configuration is straightforward via an intuitive interface, and once set up, multiple custom channel configurations can be saved directly to memory — eliminating the need to reconfigure from scratch each time. This is a significant advantage in venues with rotating content or seasonal setups.

Ideal Applications:

The Ikusi by Fagor MOD-203 is the go-to solution for any venue requiring centralised video distribution over an existing coaxial RF network, including:

• Hotels — distribute in-house entertainment, welcome channels, and live TV to all guest room TVs
• Bars & restaurants — broadcast sports events, promotional content, or digital signage across multiple screens
• Shopping centres & retail — push branded video content to screens throughout the premises
• Hospitals & care facilities — deliver patient information and entertainment channels network-wide
• Corporate offices & conference centres — distribute presentations or live feeds across multiple displays
• Education facilities — share video content across classrooms via existing TV infrastructure
