Ikusi by Fagor FLOW-OUT Digital Module 4 or 6 Output Channels COFDM or QAM

Ikusi by Fagor FLOW-OUT Universal RF Output Module (Ref. 4313) – Quad/Sextuple IP to RF Modulator

The FLOW-OUT is a versatile universal output module for the FLOW headend platform. It converts IPTV streams (SPTS) received over Gigabit Ethernet into high-quality RF signals suitable for distribution over existing coaxial cable networks.

This module offers two operating modes: OUT4 mode (4 RF carriers) or OUT6 mode (6 RF carriers) in DVB-T, DVB-C, or J.83 Annex B standards, making it the ideal solution for migrating IPTV content to legacy TV distribution systems in hotels, hospitals, apartment buildings, and residential complexes.

Key Features:

• Flexible RF Output Modes:
  • OUT4 Mode: 4 RF carriers × 8 SPTS per carrier = 32 total SPTS
  • OUT6 Mode: 6 RF carriers × 6 SPTS per carrier = 36 total SPTS
• Multi-Standard Modulation: Supports DVB-T (EN 300 744), DVB-C (EN 300 429), and J.83 Annex B.
• High Signal Quality: Excellent MER > 42 dB for crystal-clear picture quality.
• Gigabit Ethernet Input: Receives SPTS via UDP with VLAN support for seamless integration with other FLOW modules.
• Universal Compatibility: Perfect for converting IP streams back to traditional RF for TVs without set-top boxes.

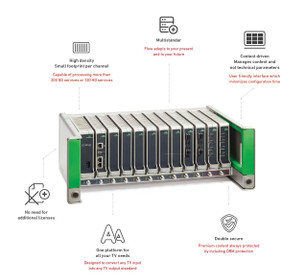

• Hot-Swappable & Scalable: Multiple FLOW-OUT modules can be installed in one chassis — all RF outputs are combined and amplified through the FLOW BASE unit.
• Compact & energy efficient — Consumes 21.5 W at 24 VDC in a slim 125 × 27 × 210 mm form factor (425 g), operating reliably between 0°C and +45°C.
• Efficient Design: Low profile, hot-swappable module with optimized power consumption.

Why Choose the FLOW-OUT Module?

The FLOW-OUT provides a reliable bridge between modern IP-based headends and existing coaxial infrastructure. It allows operators to deliver high-quality digital television (including HD channels) to hundreds of TVs without replacing the entire cable network. Its dual-mode flexibility (4 or 6 carriers) gives installers excellent scalability and bandwidth optimization options.

Whether you are building a new hybrid headend or upgrading an older MATV/SMATV system, the FLOW-OUT delivers professional RF performance with the convenience of IP input.
