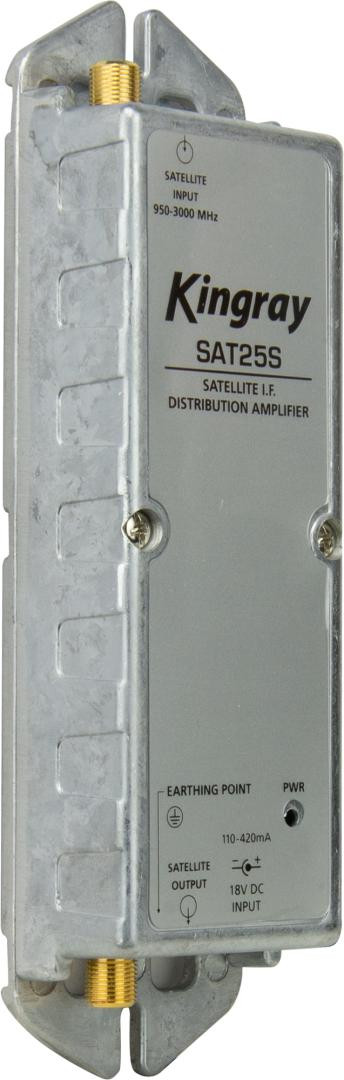

Kingray SAT25S 25dB Gain Distribution Amplifier, Single Input, 950-2400MHz Frequency Range, local or remotely powered

SKU:
04CMSAT25S
  • Kingray SAT25S 25dB Gain Distribution Amplifier, Single Input, 950-2400MHz Frequency Range, local or remotely powered
  • Kingray SAT25S 25dB Gain Distribution Amplifier, Single Input, 950-2400MHz Frequency Range, local or remotely powered
Log in for pricing

Description

The SAT25S is a single input, F-Type satellite distribution amplifier typically used in SMATV multiple dwelling applications. It features high output with adjustable gain and equalisation control. The amplifier is designed to be powered by an 18 volt DC power supply, such as the Kingray PSK18S or PSK18F. The SAT25S can be either locally or remote powered.

Features:

  • Frequency Range 950-2400 MHz
  • 25dB Maximum Gain
  • 10dB Gain Control
  • 15dB Equalisation Control
  • Single Satellite Input & Output
  • High Return Loss
  • Noise Figure <10dB
  • High Output Figure of 112dB IMR3 (DIN45004B)
  • Connectors: F-Type
  • Operating Temperate: -10 to 50 degrees C
  • Power Consumption: 260 - 410 mA (Depending on LNB current drain)
  • Operating Voltage: 18V DC
  • Suitable Power Supply: PSK18S or PSK18F
  • Foxtel Approved IPL # F30948

Inclusions:

  • SAT25S Distribution Amplifier
  • Installation Manual
  • 2 Mounting Screws

Foxtel Approved

View AllClose

Details

australian_made:
yes
