Description
The SAT40S is a single input, F-Type satellite distribution amplifier typically used in SMATV multiple dwelling applications. It features high output with adjustable gain and equalisation control. The amplifier is designed to be powered by an 18 volt DC power supply, such as the Kingray PSK18S or PSK18F. The SAT40S can be either locally or remote powered.
Features:
- Frequency Range 950-2400 MHz
- 40dB Maximum Gain
- 20dB Gain Control
- 15dB Equalisation Control
- Single Satellite Input & Output
- High Return Loss
- Noise Figure <10dB
- High Output Figure of 122dB IMR3 (DIN45004B)
- Connectors: F-Type
- Operating Temperate: -10 to 50 degrees C
- Power Consumption: 110 - 260 mA (Depending on LNB current drain)
- Operating Voltage: 18V DC
- Suitable Power Supply: PSK18S or PSK18F
- Foxtel Approved IPL # F30949
Inclusions:
- SAT40S Sateliite Distribution Amplifier
- Installation Manual
- Mounting Screws
Related Products
Kingray SAT25S 25dB Gain Distribution Amplifier, Single Input, 950-2400MHz Frequency Range, local or remotely powered
Kingray
The SAT25S is a single input, F-Type satellite distribution amplifier typically used in SMATV multiple dwelling applications. It features high output with adjustable gain...
04CMSAT25S
Kingray DSB38F Super Broadband Amplifier - 36dB Gain FTA & 41dB Gain Satellite, 47-2400 MHz Frequency Range
Kingray
The Kingray DSB38F is a high gain Terrestrial and Satellite Distribution Amplifier for use in SMATV applications. It features a combined single input and single output connector, with adjustable gain...
04MDSB38F

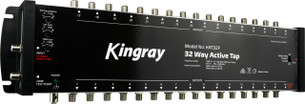

Kingray KAT32F 32 Port Active Tap, Single Input 47-2400MHz Frequency Range
Kingray
The Kingray KAT32F Active Tap is specifically designed for the distribution of terrestrial and satellite signals in a Multistacker installation. It features high output with adjustable gain and...
11MKAT32F

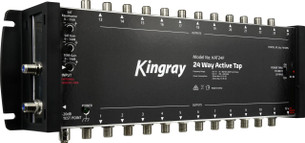

Kingray KAT24F 24 Port Active Tap, Single Input 47-2400MHz Frequency Range
