Description
VIP Vision Professional Series 2.0MP 24/7 Colour Fixed Dome is designed specially for low light applications, the VSIP2MPVDFC 24/7 Colour dome is capable of capturing vivid colour footage in the most challenging lighting conditions, with a high performance image sensor and large aperture lens.
Features:
- Stream up to Full HD 1080p (1920 x 1080) at 25fps
- 3.6mm fixed lens with 87° viewing angle
- 24/7 Colour low light footage at 0.001lx
- Back/highlight compensation & true WDR (120dB)
- H.265+ encoding for efficient storage & streaming
- Tripwire, intrusion, object detection & face detection
- On-camera audio input/output and alarm interface
- MicroSD slot for recording at the edge up to 128GB
- IP67/IK10 weather & vandal resistant metal housing
- ePoE: 800m transmission at 10Mbps (requires ePoE port)
Specifications
| Camera | |
|---|---|
| Image Sensor | 1/2.8" 2.0MP Progressive Scan CMOS |
| Max. Resolution | 2.0 Megapixel |
| Effective Pixels | 1920 (H) x 1080 (V) |
| RAM / ROM | 256MB / 32MB |
| Ultra Low Light Colour | Yes |
| Min Illumination | 0.001 Lux/F1.0 (Color) |
| S/N Ratio | > 50dB |
| Infrared | No |
| Infrared System | N/A |
| Lens | |
| Lens Type | Fixed |
| Lens / Iris | 3.6mm F1.0 Fixed Lens |
| Field of View | Horizontal: 87°, Vertical: 54° |
| Focus | Fixed |
| DORI Detect | 53m (25px/m) |
| DORI Observe | 21m (63px/m) |
| DORI Recognise | 11m (125px/m) |
| DORI Identify | 5m (250px/m) |
| Video | |
| Resolution | 1080p (1920 x 1080) to CIF (352 x 288) |
| Frame Rate (Main) | 1080p (1 ~ 25fps) |
| Frame Rate (Sub) | D1 (1 ~ 25fps) |
| Frame Rate (Third) | 1080p (1 ~ 25fps) |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Bit Rate | H.265: 14 ~ 9984Kbps / H.264: 24 ~ 10240Kbps |
| Bit Rate Control | CBR / VBR |
| Day/Night | Colour (Default) / Auto (Electronic) / B&W |
| WDR | 120dB |
| White Balance | Auto / Natural / Street Lamp / Outdoor / Manual |
| Gain Control | Auto / Manual |
| Noise Reduction | 3D DNR |
| Picture Control | Mirror / Flip (0°, 90°, 180°, 270°) |
| IVS & Intelligent Functions | |
| IVS | Yes |
| Intelligent Functions | Tripwire, Intrusion, Object Abandoned/Missing, Face Detection, Motion Detection (4 zones), ROI (4 zones), Privacy Masking (4 zones) |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol | HTTP, HTTPS, TCP, ARP, RTSP, RTP, RTCP, UDP, PPPoE, IEEE802.1X, SMTP, SNMP, FTP, DHCP, DNS, DDNS, IPv4/IPv6, QoS, UPnP, NTP, Bonjour, Multicast, ICMP, IGMP, TLS, SSH, NFS |
| Streaming Method | Unicast / Multicast |
| Max User Access | 10 Users / 20 Users |
| RTMP Support | No |
| Interface | |
| Audio Interface | 1 Input, 1 Output (G.711a, G.711Mu, AAC, G.726) |
| Alarm Interface | 1 Input (5mA 5VDC) / 1 Output (300mA 12VDC) |
| Edge Storage | MicroSD (up to 128GB) / NAS / Local PC |
| Interoperability | ONVIF / PSIA / CGI |
| Environmental | |
| Power Supply | 12VDC / PoE (802.3af) Class 0 |
| Power Consumption | < 3.7W |
| Operating Conditions | -30° ~ +60°C / < 95% RH |
| Ingress Protection | IP67 |
| Weather Resistance | Yes |
| Vandal Resistance | IK10 |
| Camera Type | Dome |
| Housing | Metal |
| Pan/Tilt/Rotation | Pan 0°~360° / Tilt 0°~78° / Rotation 0°~360° |
| Tri-Axis Mounting | Yes |
| ePoE | Yes |
| Physical | |
| Dimensions | Ø122mm x 89mm |
| Net Weight | 0.58kg |
| Warranty (Years) | 4 |
| Shipping Weight and Dimensions | |
| Includes product packaging | |
| Width | 170 mm |
| Height | 167 mm |
| Depth | 173 mm |
| Weight | 0.80 kg |
Details
VIP Vision VDFC Pro Dome Datasheet: |
|
Product Feature Guide - VIP Vision ePoE Overview: |
|
Product Feature Guide - VIP Vision Corridor Mode: |
|
Product Feature Guide - VIP Vision 247 Colour.pdf: |
|
Network Camera Web 3.0 Operation Manual V2.0.5: |
|
Accessory Compatibility Guide: |
Videos
-
24/7 Colour Camera Introduction | Myles O'Hanlon | RhinoCo Technology
24/7 Colour Series cameras available from VIP Vision™ and Secu...
-
VIP Vision Guide: IP Cameras @ 800M using Cat5e (Extended PoE)
Jeff shows how to use the new extended Power over Ethernet (eP...
-
VIP Vision Tutorial: Using microSD storage in IP cameras - Part 1: Installation
Jeff talks about how to select a microSD flash memory storage ...
-
VIP Vision Tutorial: Using microSD storage in IP cameras - Part 2: Configuration
Jeff shows how to configure an IP camera using its web interfa...
Have You Tried These Products?
VIP Vision Professional Series 4.0MP 4x Zoom Mini PTZ Dome Camera
VIP Vision
VIP Vision Professional Series 4.0MP 4x Zoom Mini PTZ Dome Camera is no larger than a standard fixed lens dome, this miniature network PTZ dome offers incredible functionality for its size. Deliver a...
28VSIP4MPPTZMINI
VIP Vision Professional Series 8.0MP WDR Infrared Motorised Bullet Camera
VIP Vision
Professional Series 8.0MP WDR Infrared Motorised Bullet
The VIP Vision Professional Series 8.0MP WDR Infrared Motorised Bullet Camera can remotely configure wide or narrow fields of view,...
28VSIP8MPFBIRMD
VIP Vision Professional Series 4.0MP Motorised Bullet Camera
VIP Vision
Professional Series 4.0MP Motorised Bullet
The VIP Vision Professional Series 4.0MP Motorised Bullet Camera (VSIPP-4BIRMG) can remotely configure wide or narrow fields of view, allowing you to enjoy...
28VSIPP-4BIRMG
VIP Vision 8MP 7-35mm WDR Infrared Long Range Motorised Dome Camera
VIP Vision
Ultimate Series 8.0MP WDR Infrared Long Range Motorised Dome (7~35mm Lens)
VIP Vision 8MP 7-35mm WDR Infrared Long Range Motorised Dome Camera is a modified version of the VSIPE8MPVDIRM dome,...
28VSIPE8MPVDIRM-Z

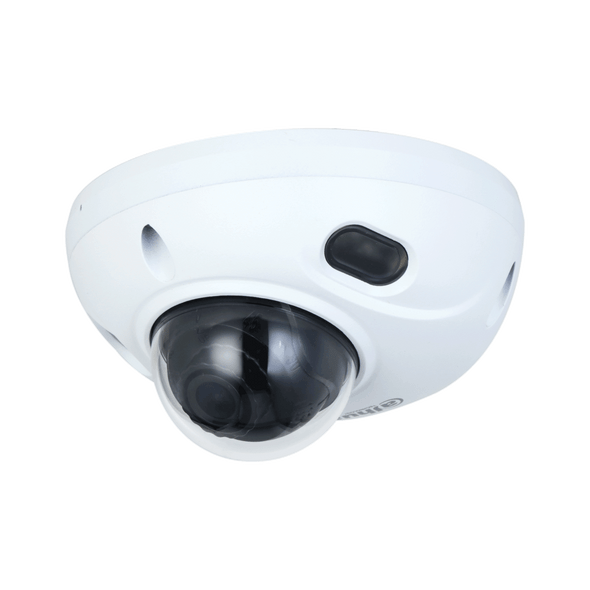

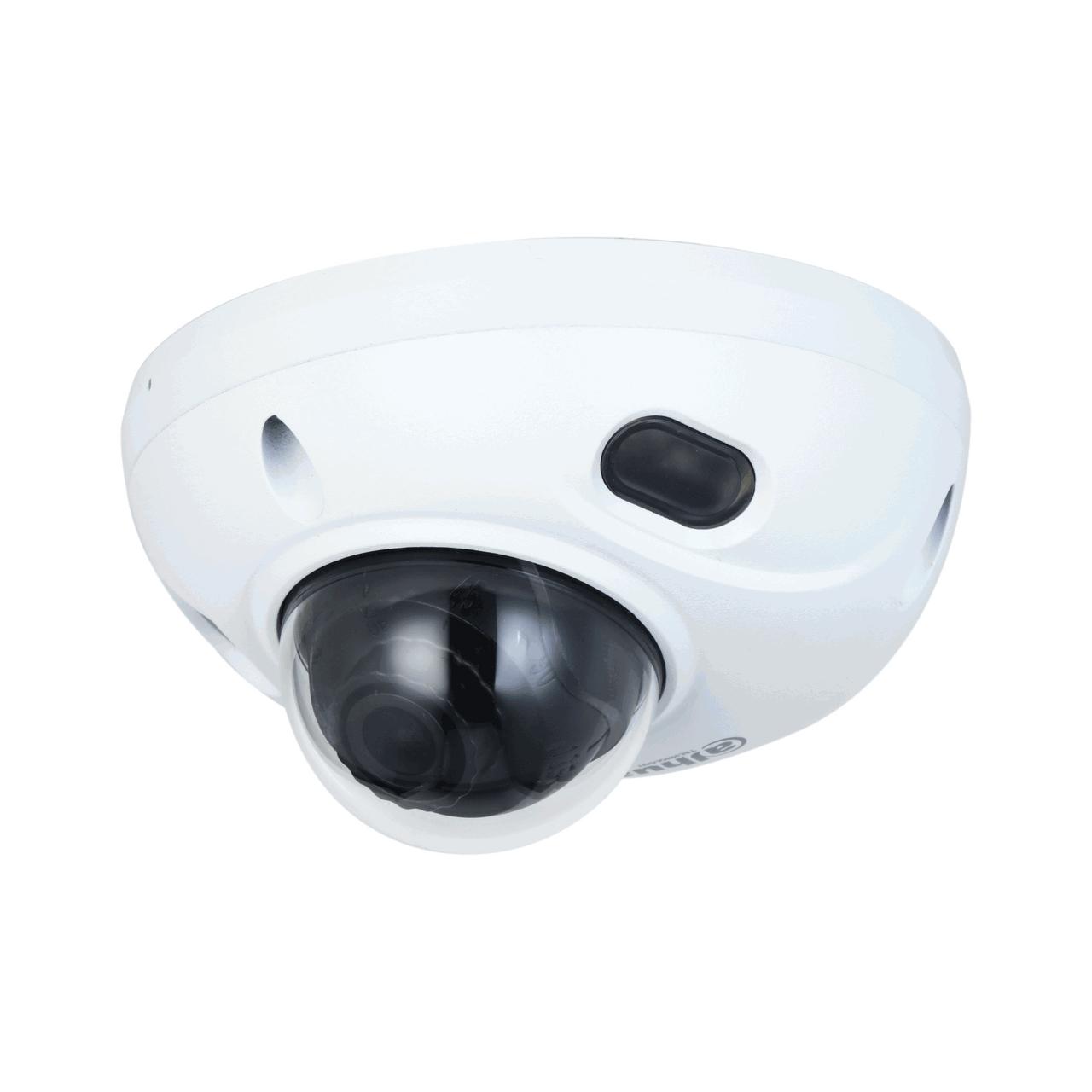

Dahua Wizsense 4MP Wedge Dome Fixed Lense Camera DH-IPC-HDBW3466FP-AS-AUS
