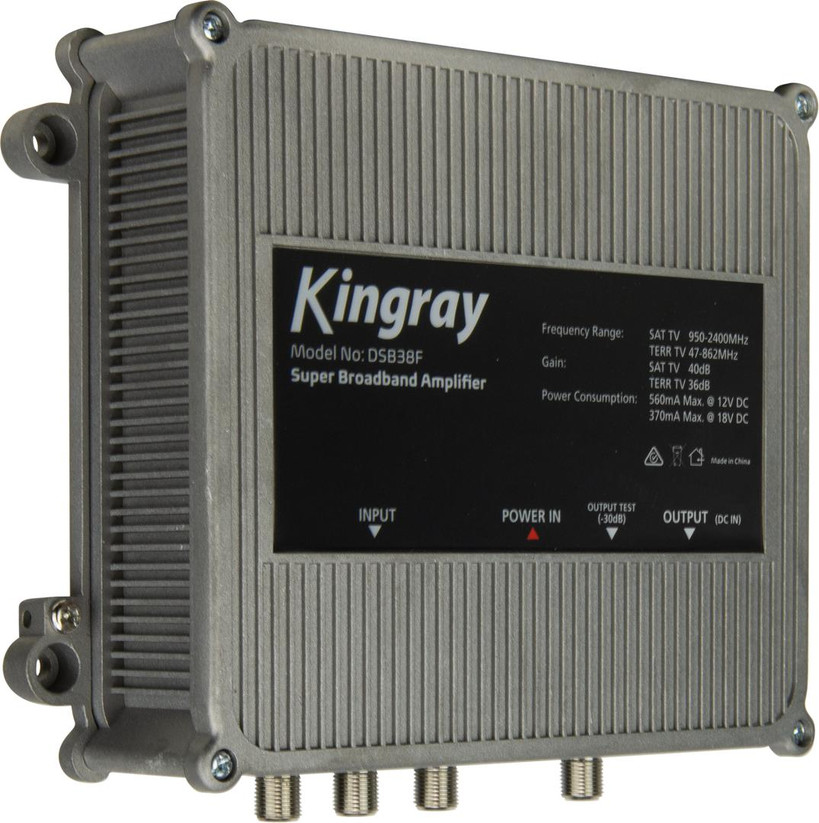

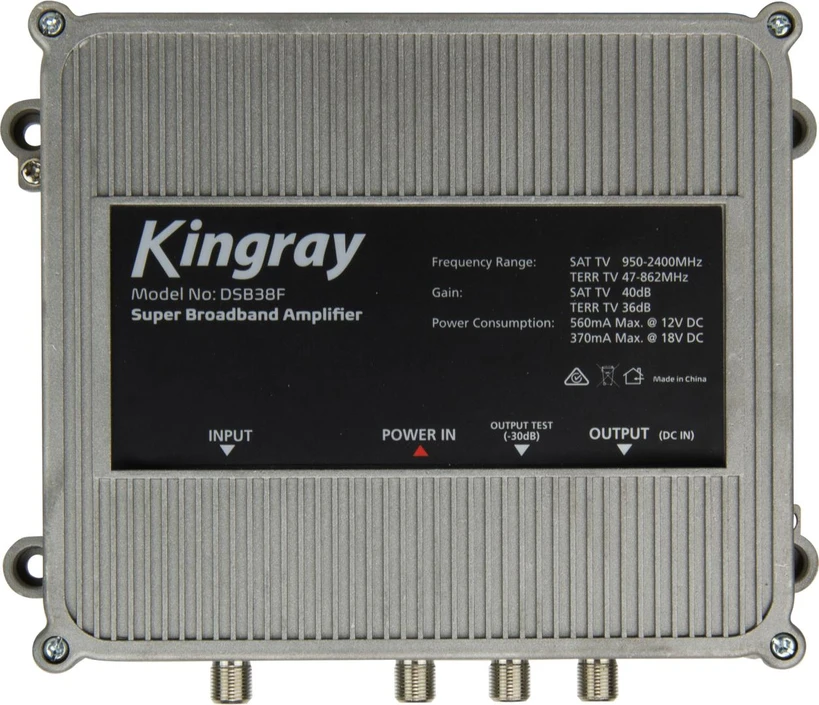

Kingray DSB38F Super Broadband Amplifier - 36dB Gain FTA & 41dB Gain Satellite, 47-2400 MHz Frequency Range

SKU:
04MDSB38F
  • Kingray DSB38F Super Broadband Amplifier - 36dB Gain FTA & 41dB Gain Satellite, 47-2400 MHz Frequency Range
  • Kingray DSB38F Super Broadband Amplifier - 36dB Gain FTA & 41dB Gain Satellite, 47-2400 MHz Frequency Range
Log in for pricing

Description

The Kingray DSB38F is a high gain Terrestrial and Satellite Distribution Amplifier for use in SMATV applications. It features a combined single input and single output connector, with adjustable gain and equalisation controls, as well as input attenuation, therefore making it an ideal distribution amplifier for a multistacker installation.

Features:

  • Frequency Range 47-862 MHz & 950-2400 MHz
  • 36dB Maximum Gain (Terrestrial)
  • 41dB Maximum Gain (Satellite)
  • 10dB Gain Control
  • 10dB Equalisation Control
  • -10dB Attenation Switch on the input
  • -30dB Test Port
  • Maximum Output Figure of 120dB for Terrestrial (60dBuV IMR3 DIN45004B)
  • Maximum Output Figure of 122dB for Satellite (35dBuV IMR3 EN50083-3)
  • Connectors: F-Type
  • Power Consumption: 560mA @ 12V DC
  • Power Consumption: 370mA @ 18V DC
  • Operating Voltage: 12-18V DC
  • Suitable Power Supply: PSK18M, PSK124F or PSK183F
  • Can be locally or remotely powered via the RF output
  • Foxtel Approved IPL # F30977

Inclusions:

  • DSB38F Distribution Amplifier
  • Instruction Manual
  • Mounting Screws

Foxtel Approved
