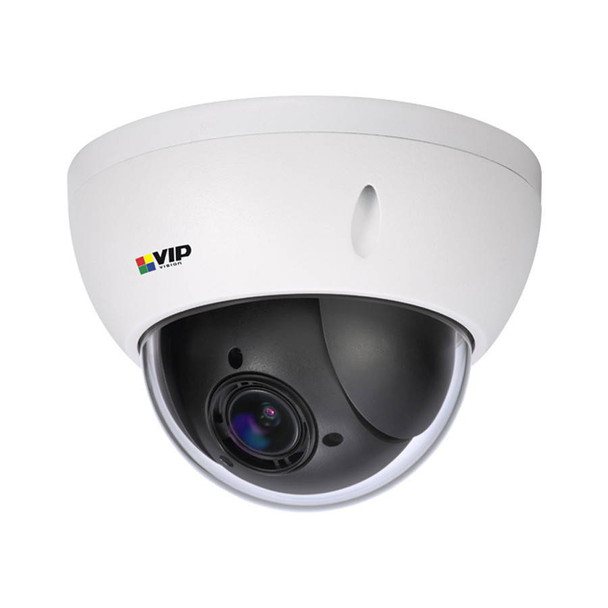

VIP Vision Professional Series 4.0MP 4x Zoom Mini PTZ Dome Camera

SKU:
28VSIP4MPPTZMINI
  • VIP Vision Professional Series 4.0MP 4x Zoom Mini PTZ Dome Camera
  • VIP Vision Professional Series 4.0MP 4x Zoom Mini PTZ Dome Camera
  • VIP Vision Professional Series 4.0MP 4x Zoom Mini PTZ Dome Camera
  • VIP Vision Professional Series 4.0MP 4x Zoom Mini PTZ Dome Camera
Log in for pricing

Description

VIP Vision Professional Series 4.0MP 4x Zoom Mini PTZ Dome Camera is no larger than a standard fixed lens dome, this miniature network PTZ dome offers incredible functionality for its size. Deliver a compact PTZ solution with 4x optical zoom and true WDR in a vandal resistant dome, at a compact 122mm footprint for easy installs.

Features:

  • Stream up to 4.0MP (2592 x 1520) at 25fps
  • 2.7 ~ 11mm 4x optical zoom lens (112.5° ~ 30° viewing angles)
  • WDR (120dB) & back/highlight compensation
  • MicroSD slot for recording at the edge up to 256GB
  • 355° panning and 0° ~ 90° tilt adjustable
  • Face detection & intelligent video analytic functions
  • 3D digital noise reduction & auto white balance
  • IP66/IK10 weather/vandal rated housing



View AllClose

Specifications

Alarm Interface N/A
Audio Interface N/A
Auto Tracking N/A
Bit Rate H.265/H.264: 448 ~ 8192Kbps
Bit Rate Control Constant bit rate (CBR) / Variable bit rate (VBR)
Camera Type PTZ Dome
Day/Night Auto (ICR) / Color / B&W
Detect (25px/m) 180m
Dimensions Ø122mm x 89mm
Edge Storage MicroSD Card (up to 256GB) / NAS / Local PC
Effective Pixels 2592 (H) x 1520 (V)
ePoE No
Ethernet RJ-45 (10Base-T/100Base-TX)
Field of View Horizontal: 112.5° ~ 30° (4x Optical Zoom)
Focus Auto/Manual / 1m Min. Focus Distance
Frame Rate (Main) 4.0MP (1~25fps)
Frame Rate (Sub) D1 (1 ~ 25fps)
Frame Rate (Third) 720p (1 ~ 25fps)
Gain Control Auto / Manual
Housing Metal
Identify (250px/m) 18m
Image Sensor 1/3" 4.0MP Progressive Scan CMOS
Infrared No
Infrared System N/A
Ingress Protection IP66
Intelligent Functions Tripwire, Intrusion, Abandoned/Missing Object, Face Detection, Motion Detection, Region of Interest, Privacy Masking (24 zones), Defog
Interoperability ONVIF / PSIA / CGI
IVS Yes
Lens / Iris 2.7 ~ 11mm F1.6 ~ F2.8 Motorised Lens
Lens Type Motorised Varifocal
Lighting Compensation BLC / HLC / WDR (120dB)
Max. Resolution 4.0 Megapixel
Max. User Access 10 Users / 20 Users
Min Illumination 0.05 Lux/F1.6 (Color), 0.005 Lux/F1.6 (B/W)
Modes / Presets Up to 300 presets / 5 Pattern, 8 Tour, Auto Pan, Auto Scan
Net Weight 0.66kg
Noise Reduction Ultra 2D/3D DNR
Observe (63px/m) 72m
Operating Conditions -30° ~ +60° C / Less than 90% RH
Pan / Tilt Range Pan: 0° ~ 355° / Tilt: 0° ~ 90° / Auto-flip 180°
Pan/Tilt/Rotation Pan: 0° ~ 355 ° ; Tilt: 0° ~ 90° ; Rotation: 0° ~ 360°
Picture Control Flip 180°
Power Consumption <10W
Power Supply 12VDC/1.5A / PoE (802.3af)
Protocol IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour; 802.1x
PTZ Speed Manual: Pan: 100°/s; Tilt: 60°/s
RAM / ROM 256MB / 128MB
Recognise (125px/m) 36m
Resolution 4.0MP (2592 x 1520) to CIF (352 x 288)
RS485 N/A
RTMP Support No
S/N Ratio > 50dB
Series Professional Series
Start-up Action Auto-restore to previous PTZ/lens status
Streaming Method Unicast / Multicast
Tri-Axis Mounting Yes
Ultra Low Light Colour No
Vandal Resistance IK10
Video Compression H.265 / H.264 / MJPEG
Video Interface N/A
Weather Resistance Yes
White Balance Auto / ATW / Indoor / Outdoor / Manual
Warranty (Years) 4
